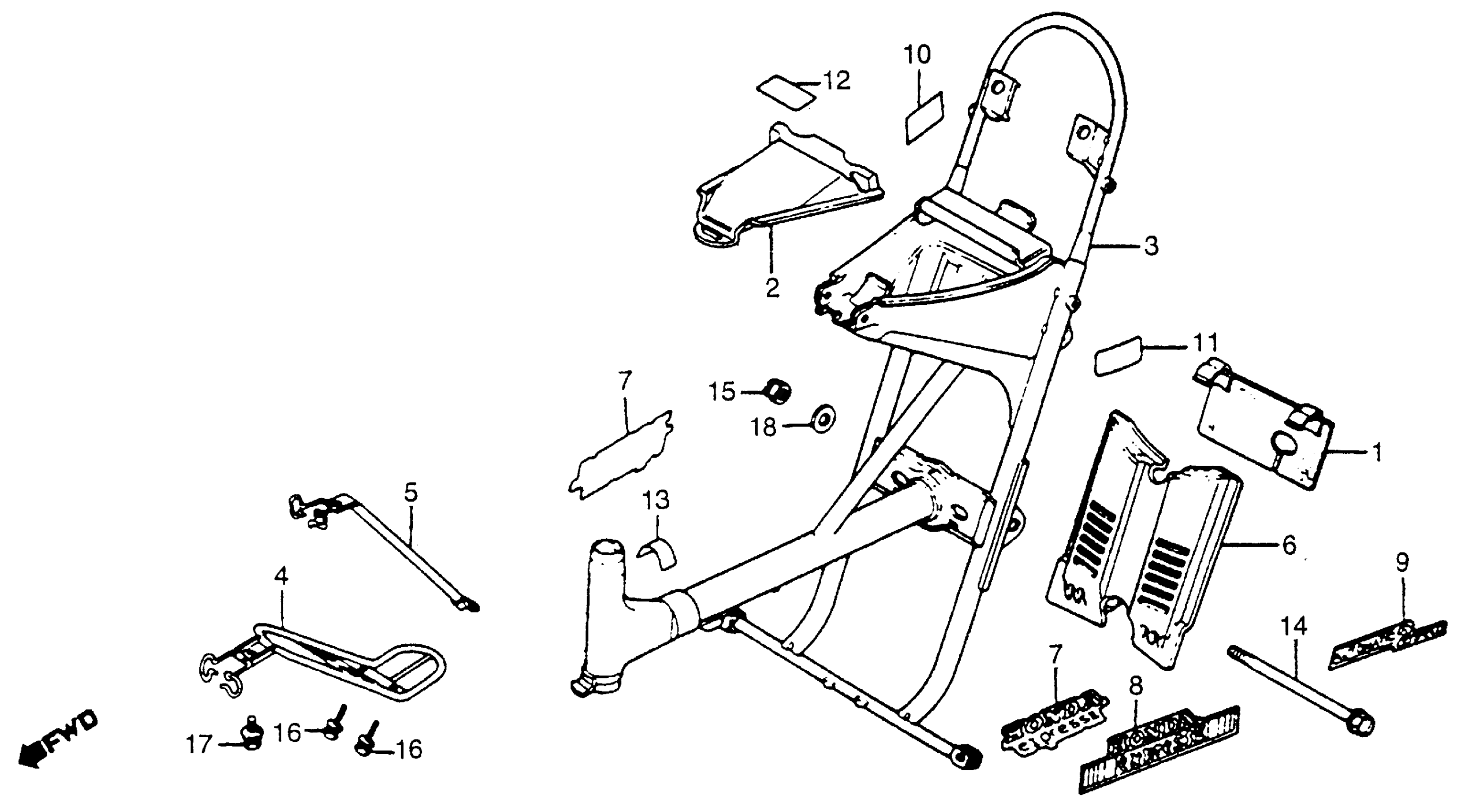

Honda NA50A (79) EXPRESS II, JPN, VIN# AB01-5000001 TO AB01-5012265 FRAME Diagram

#

Description
Price

2

COVER, BATTERY HOLDER (NOT AVAILABLE)

31513-163-000

Unavailable

3

FRAME *YR26* (SHINY ORANGE)

50100-163-670ZC

Unavailable

3

FRAME *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)

50100-163-670ZA

Unavailable

3

FRAME *PB31* (BLUE ANGEL) (NOT AVAILABLE)

50100-163-670ZB

Unavailable

4

RIDER, FRAME (LOWER) (NOT AVAILABLE)

50140-163-000

Unavailable

6

COVER, FRAME CENTER *YR26* (SHINY ORANGE) (NOT AVAILABLE)

62100-163-000ZF

Unavailable

6

COVER, FRAME CENTER *Y31* (PARAKEET YELLOW) (NOT AVAILABLE)

62100-163-000ZB

Unavailable

6

COVER, FRAME CENTER *PB31* (BLUE ANGEL) (NOT AVAILABLE)

62100-163-000ZC

Unavailable

7

EMBLEM, MAIN PIPE (NOT AVAILABLE)

87120-163-670

Unavailable

10

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

11

LABEL, CAUTION (NOT AVAILABLE)

87505-163-670

Unavailable

13

LABEL, DRIVE CAUTION *NH1* (BLACK) This part replaces 87560-323-670B.

87560-323-670ZA

$2.84

13

LABEL, DRIVE CAUTION *NH1* (BLACK)

87560-323-670ZA

$2.84

14

BOLT, ENGINE HANGER (NOT AVAILABLE)

90103-163-000

Unavailable

15

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

16

BOLT-WASHER (6X12)

93402-06012-00

$1.69

16

BOLT-WASHER (6X12) This part replaces 93412-06012-00.

93402-06012-00

$1.69

16

BOLT-WASHER (6X12) This part replaces 93482-06012-00.

93402-06012-00

$1.69

17

BOLT-WASHER (8X12) (NOT AVAILABLE)

93482-08012-00

Unavailable

18

WASHER, PLAIN (10MM)

94101-10000

$1.49
