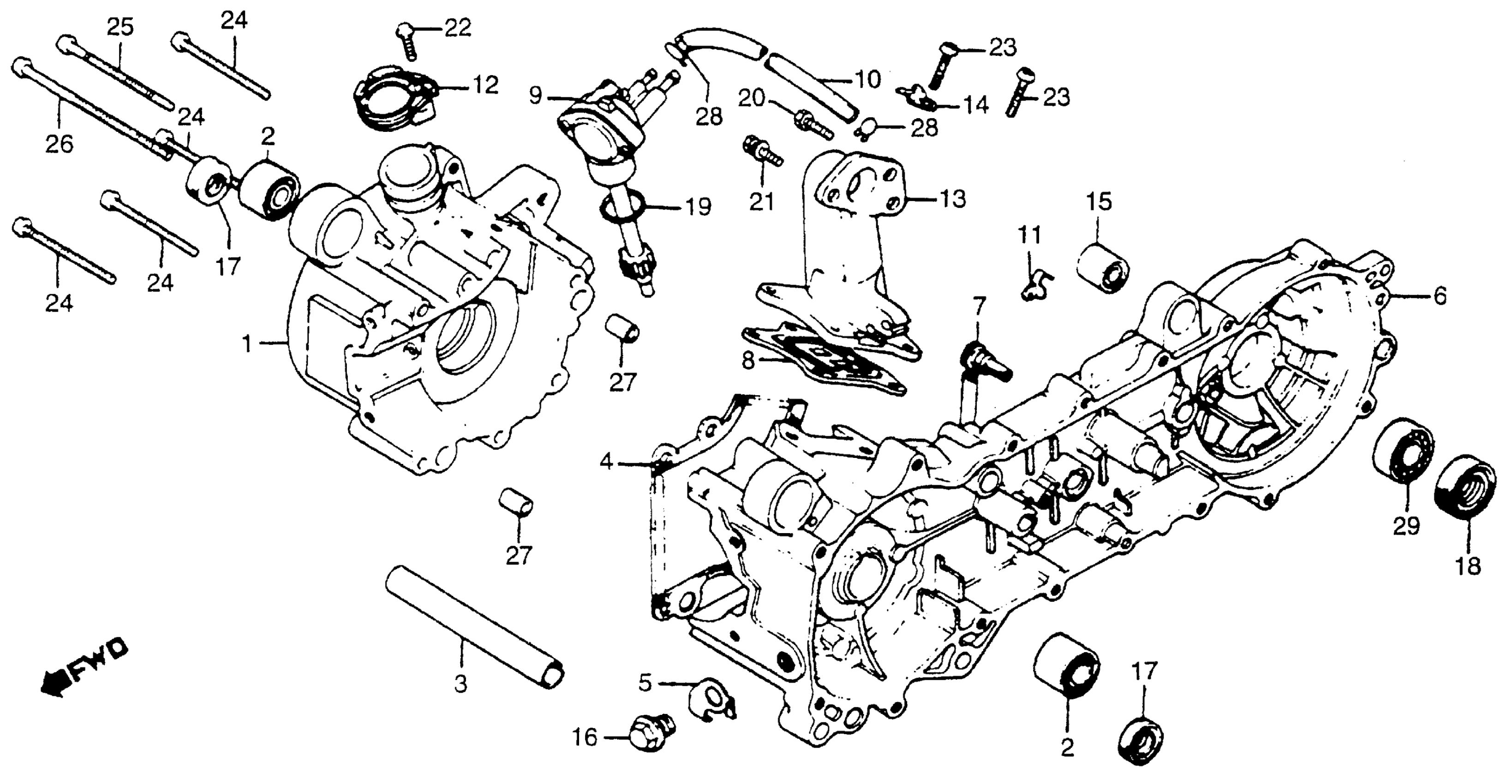

Honda NA50A (79) EXPRESS II, JPN, VIN# AB01-5000001 TO AB01-5012265 CRANKCASE + OIL PUMP + REED VALVE 79-80 Diagram

#

Description
Price

1

CRANKCASE, R.

11101-147-701

Unavailable

2

BUSH, ENGINE HANGER RUBBER (NOT AVAILABLE)

11102-147-000

Unavailable

3

COLLAR, DISTANCE

11103-147-000

Unavailable

4

GASKET, CRANKCASE This part replaces 11191-147-000.

11191-147-010

$7.00

4

GASKET, CRANKCASE

11191-147-010

$7.00

4

GASKET, CRANKCASE This part replaces 11191-147-306.

11191-147-010

$7.00

5

CLAMP, TUBE (NOT AVAILABLE)

11204-147-000

Unavailable

6

CRANKCASE, L. (NOT AVAILABLE) This part replaces 11210-147-010.

11210-147-020

Unavailable

6

CRANKCASE, L. (NOT AVAILABLE)

11210-147-020

Unavailable

7

TUBE, BREATHER (NOT AVAILABLE)

11211-147-030

Unavailable

8

VALVE, REED (ARAI) (NOT AVAILABLE) This part replaces 14100-147-013.

14100-147-015

Unavailable

8

VALVE, REED (ARAI) (NOT AVAILABLE) This part replaces 14100-147-014.

14100-147-015

Unavailable

8

VALVE, REED (ARAI) (NOT AVAILABLE)

14100-147-015

Unavailable

9

PUMP ASSY., OIL (19T)

15100-147-093

Unavailable

10

TUBE, OIL PASSAGE (NOT AVAILABLE) This part replaces 15525-147-000.

15525-GA6-670

Unavailable

12

BAND, OIL PUMP SETTING (NOT AVAILABLE)

15531-147-020

Unavailable

13

PIPE, INLET

17100-147-020

Unavailable

14

PLATE, CONTACT FIXING

35755-001-020

Unavailable

15

BUSH, RR. SWINGARM RUBBER (LOWER) (NOT AVAILABLE)

52109-222-810

Unavailable

16

BOLT, SEALING (14MM)

90081-035-000

$4.24

17

OIL SEAL (15X25.5X7) This part replaces 91201-147-003.

91201-GW2-000

$3.86

18

OIL SEAL (20X35X7)

91254-GF0-761

Unavailable

18

OIL SEAL (20X35X7) This part replaces 91254-816-000.

91254-GF0-761

Unavailable

19

O-RING (18.3X2.3) (ARAI) This part replaces 91301-GA6-000.

91301-147-023

$2.20

19

O-RING (18.3X2.3) (ARAI) This part replaces 91301-147-013.

91301-147-023

$2.20

19

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

20

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

20

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

20

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

22

SCREW, PAN (5X16)

93500-05016-0A

$1.49

23

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

24

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

24

SCREW, PAN (6X45)

93500-06045-0A

$1.49

25

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

25

SCREW, PAN (6X60)

93500-06060-0A

$1.49

26

SCREW, PAN (6X80) This part replaces 93500-06080.

93500-06080-0A

$1.49

26

SCREW, PAN (6X80)

93500-06080-0A

$1.49

27

PIN A, DOWEL (10X20)

94301-10200

$2.35

28

CLIP, TUBE (B6.5)

95002-02650

$1.49

29

BEARING, RADIAL BALL (6202UU)

96150-62020-10

$14.36
