Description

Price

1

Socket Head Screw M4X 10

205041060

$2.11

4

Socket Screw M8 X 25

205082554

$2.11

5

Socket Head Screw M10 X 35

205503554

$7.51

6

Socket Head Screw M12 X 35

205523554

$4.44

8

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

9

Hex. Cap Screw M10 X 60

207006056

$7.51

10

Hex. Cap Screw M6 X 30

207063054

$6.39

11

Hex. Screw M8 X 55

207085544

$1.68

12

Cap Screw Hex. M10 X 40

207204056

$7.51

13

Hex. Flange Screw M5 X 25

207652544

$0.50

14

Hex. Flange Screw M6 X 25

207662556

$4.44

15

Hex. Flange Screw M6 X 70

207667056

$4.44

16

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

17

Hex. Flange Screw M8 X 40

207684044

$1.48

18

Phillips Screw M6 X 25

208562531

$2.11

19

Hex Screw M10 x 100

230100054

$6.45

20

Hexagonal Nut M6

232061404

$0.34

21

RED RUNNER 120 - Call your local BRP dealership

503193840

Unavailable

22

Elastic Stop Nut M6

232561434

$1.99

22

Elastic Stop Nut M5

232551414

$0.87

23

Casted Support

503193894

$16.49

24

Flange Elastic Nut M10

233201466

$3.17

25

Flange Elastic Nut M5

233251434

$2.00

26

Hex. Flange Elastic Nut M6

233261466

$2.00

27

Elastic Flange Nut M8

233281466

$1.01

28

Elastic Locking Nut M10 X 1.5

233601416

$1.69

29

Elastic Locking Nut M10

233601466

$2.11

31

Flat Washer 8 mm

234082410

$1.47

32

Conical Spring Washer 10 mm

234201474

$1.69

33

Hex. Cap Screw M12 X 35

250000537

$3.17

34

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$4.44

35

Allen Screw M3 X 0.5 X 10

250000644

$2.11

36

Flat Washer 8 mm

250200128

$4.44

37

Washer

250200140

$1.01

38

Flat Washer

250200143

$3.17

40

Pop Rivet 3/16"

293150013

$1.37

42

Pop Rivet 3/16"

390402200

$0.35

49

E-Circlip

293370013

$0.65

50

Retaining Ring

293370080

$2.29

53

Grease Fitting

408200700

$3.49

54

Retaining Ring

415129371

$12.01

55

Retaining Ring

415129780

$15.79

56

Urethane Bushing

503189117

$8.19

57

Axle Spring

503189146

$9.59

58

Pivot Arm Axle

503189156

$21.99

59

Bushing

503189271

$13.99

60

Washer

503189276

$3.28

61

Bushing | Includes 240d to 240d1

503189282

$4.34

62

Ball Bearing | Package-STD

503190396

$14.30

64

Rear Wheel Spacer

503190428

$8.14

65

Rear Axle

503190429

$59.99

68

Labyrinth Seal

503190434

$6.09

69

Rubber Stopper

503190576

$12.99

70

Axle Bar (Long)

503190643

$17.39

71

Washer

503190656

$2.96

72

Labyrinth Seal

503190682

$6.19

73

Axle

503190698

$20.99

74

Spring Support Kit

861805547

$10.49

75

Spring Support Kit

861805547

$10.49

76

Center Bushing

503191259

$11.49

77

Axle Strap

503191260

$30.99

78

Rear Spacer

503191263

$18.49

79

Washer

503191273

$1.35

81

Black Slider Shoe 120"

503191301

$29.49

82

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

83

Bushing

503191554

$6.14

84

Swivel Bushing

503191555

$7.83

85

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$51.99

86

LH Cam Adjuster

503191565

$16.49

87

RH Cam Adjuster

503191566

$16.49

88

Cushion

503191640

$5.93

89

Wheel Cup M6

503191820

$4.99

90

Washer

503191910

$2.32

91

Washer

503191926

$1.58

92

Lower Axle

503191966

$15.89

93

Ball Bearing

503193548

$17.99

94

Bolt M8 X 248mm

503192440

$30.49

95

REAR SHOCK - Call your local BRP dealership | Includes 95 To 95f, North America

503192908

Unavailable

95

REAR SHOCK - Call your local BRP dealership | Includes 95 To 95f, Europe

503193474

Unavailable

95a

O-Ring

415093804

$4.54

95b

O-Ring

505070400

$4.54

95c

Screw | Not Shown

505070399

$4.12

95d

Air Valve

505070398

$20.99

95e

Piston Ring | Not Shown

415093806

$16.86

95f

O-Ring

415093807

$35.99

96

Washer

503192491

$4.54

97

Washer

503192494

$3.17

98

Washer

503192496

$0.77

99

Slide Protector

503192530

$19.99

100

Rocker

503192531

$76.99

101

Axle Bar

503192555

$14.15

102

Tensioner

503192583

$8.29

103

Labyrinth Ring

503192592

$4.99

104

Axle Shock Absorber

503196509

$12.58

106

Spacer

503196943

$10.99

107

Spring Spacer

503192743

$16.49

108

Guide Block

503192749

$6.19

109

Rubber Stopper

503192750

$14.99

110

Stopper Strap

503192759

$25.99

112

Bushing

503192767

$17.39

113

Spring Stopper

503194270

$19.99

114

Black, Wheel Cap

503192771

$2.39

115

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

117

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$48.49

120

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$124.99

125

LH Cam Block

503192918

$14.99

126

RH Cam Block

503192919

$14.99

127

O-Ring

503192921

$2.32

130

Lower Shaft

503192981

$20.99

131

ROD_LINK - Call your local BRP dealership

503193010

Unavailable

134

Shock Adjuster Knob

503193033

$10.99

135

Bushing

503193037

$16.18

137

Rubber Stopper Ass'y

503195523

$5.59

138

Black, LH Spring Square

503192271

$80.49

138

Black, LH Spring Square

503193158

$79.49

139

Black, RH Spring Square

503192270

$80.49

139

Black, RH Spring Square

503193159

$79.49

142

Bolt M10 X 251MM

503193227

$17.29

143

Spacer

503193250

$16.49

144

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

145

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

146

Screw M8 X 90

503193372

$4.44

148

Pivot Axle

503193435

$39.99

154

Link Ass'y | Includes 3100 to 3100f

503195985

$75.99

155

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$285.99

160

Leg Cushion

505072663

$9.23

163

Runner Decal

516004755

$11.99

164

LH Block Sticker Decal

516004900

$18.99

165

RH Block Sticker Decal

516004901

$18.99

168

Flat Washer

517225900

$0.18

169

Reinforcement Stopper

572084800

$12.99

172

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$51.99

173

Black, Spring (51mm) Short

503193837

$67.99

179

Center Shock | Includes 5000 to 5000j

503194071

$812.99

179a

O-Ring

415093807

$35.99

179b

Piston Ring | Not Shown

415093806

$16.86

179c

Air Valve

505070398

$20.99

179d

Screw | Not Shown

505070399

$4.12

179e

O-Ring

505070400

$4.54

179f

O-Ring

415093804

$4.54

180

Black, Spring (162mm) Long

503193065

$72.99

181

Black, Spring (52mm) Short

503193479

$90.99

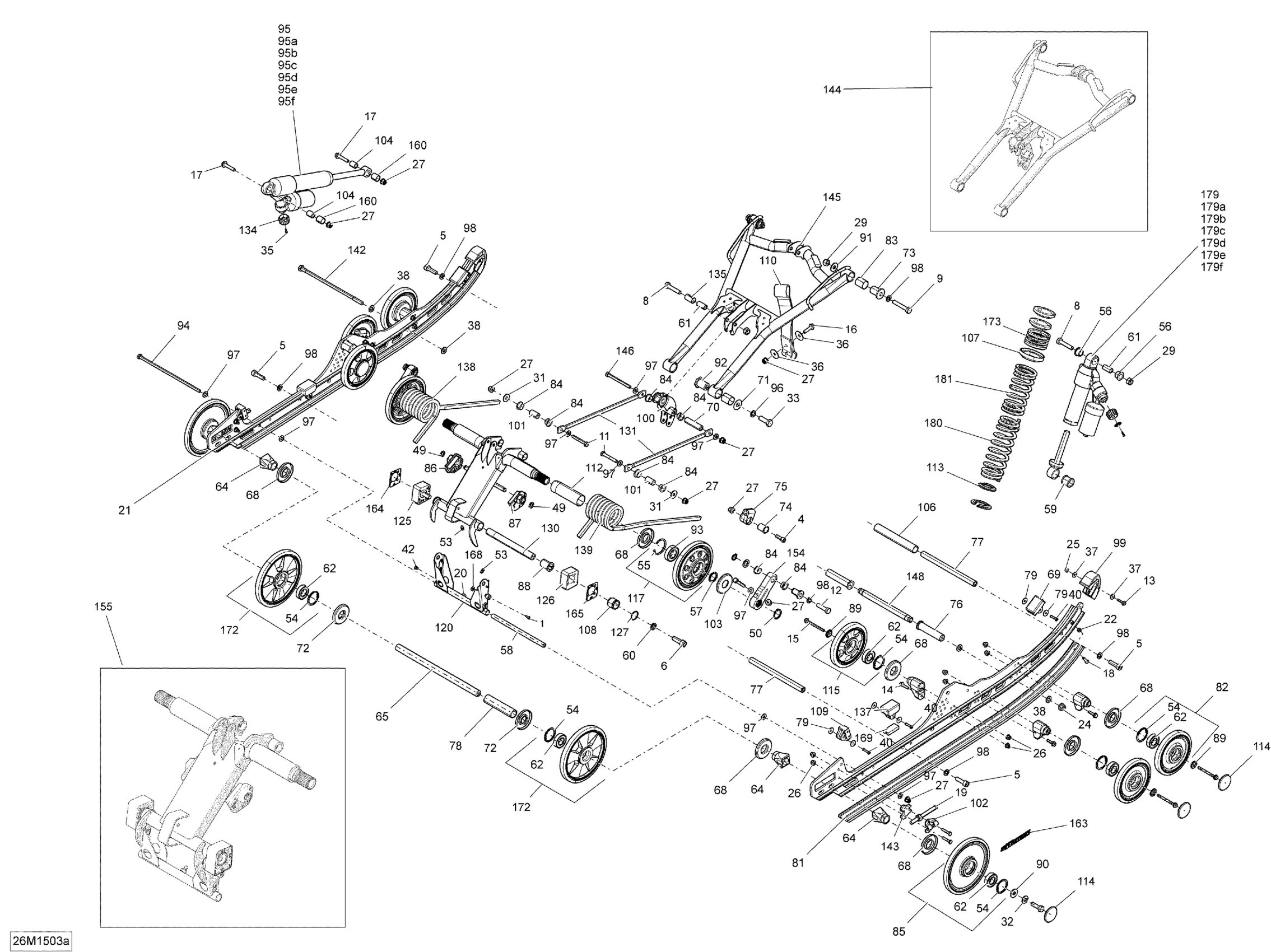

Ski-Doo MXZ XRS 600HOETEC XS-RS120, 2015 08- Rear Suspension rMotion_26M1503a Diagram
