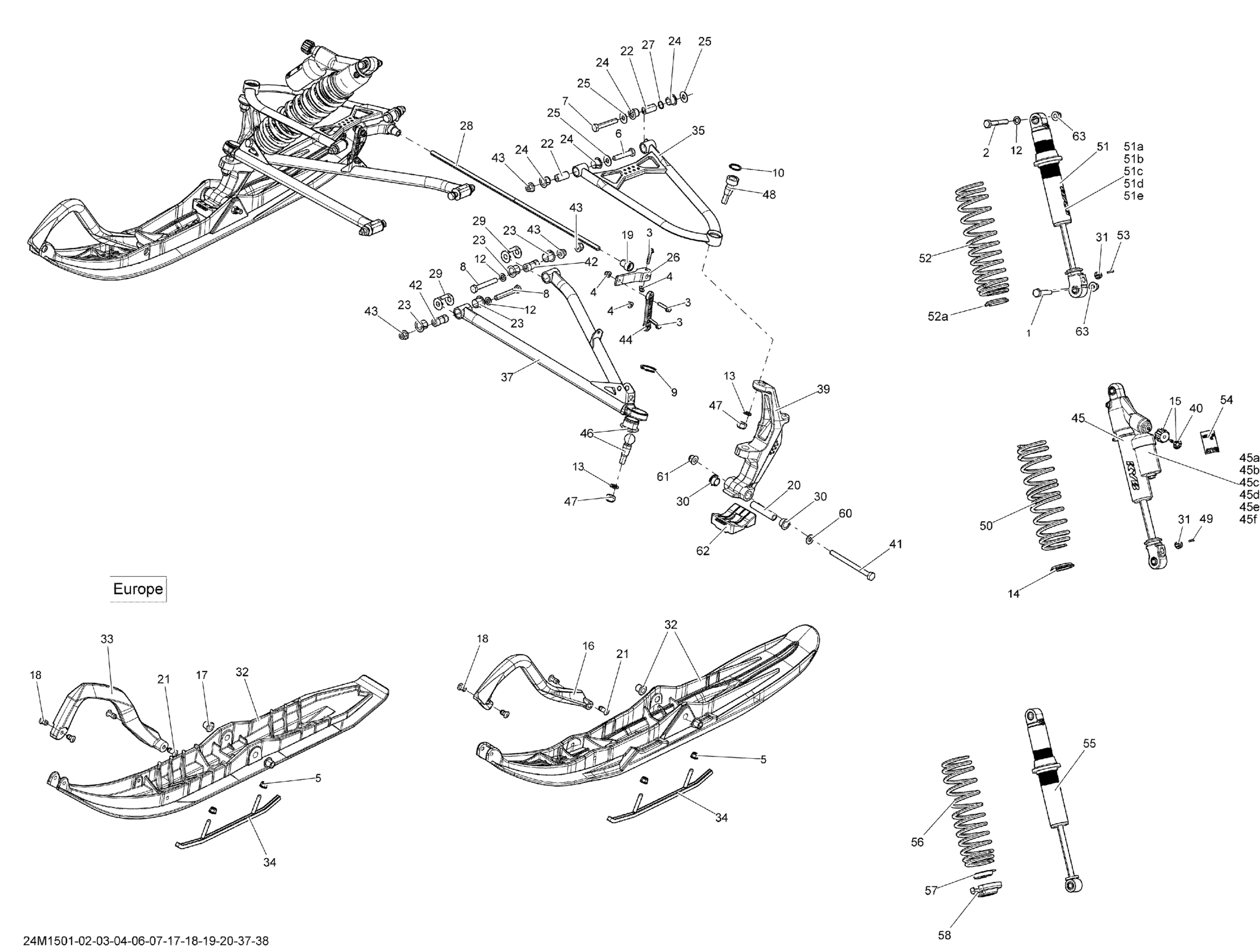

Ski-Doo MXZ XRS 600HOETEC XS-RS120, 2015 07- Front Suspension And Ski _24M1503 Diagram

#

Description
Price

1

Hex Screw M10 X 1.5 X 55

207005554

$7.51

2

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

3

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

4

Hex. Flange Elastic Nut M6

233261466

$2.00

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Screw Hex. M10 X 50

250001022

$1.69

7

Screw Hex. M10 X 60

250001023

$2.11

8

Screw Hex. M10 X 70

250001024

$2.11

9

Circlip

293370035

$2.64

10

Circlip

293370070

$8.99

12

Washer

503189564

$0.74

13

Washer

503192491

$4.54

14

Spring Stopper

503194270

$19.99

15

Adjustment Knob Ass'y | Included 7740 to 7740b

503193025

$14.49

16

Black, Handle

505070963

$35.99

17

Ski Bushing

505071781

$16.18

18

Retainer 17mm long

505071812

$5.95

19

Bushing

505072064

$2.32

20

Spacer

506133300

$23.99

21

Retainer 23mm Long

505072133

$6.78

22

Sleeve

505072143

$9.00

23

Bushing

505072208

$3.28

24

Bushing

505072250

$3.28

25

Washer

505072392

$4.76

26

Stabilisator Lever

505072394

$18.73

27

O-Ring

505072448

$2.32

28

Stabilisator

505072602

$68.99

29

Wear Plate

505072634

$6.29

30

Leg Bushing

505072690

$12.49

31

Adjustment Knob

505072753

$2.19

32

Sunburst Yellow, DS Ski | Model Sunburst Yellow - Sunburst Yellow Handle

505073658

$169.49

32

Deep Black, RH Pilot 5.7 Ski

505072855

$164.49

32

Sunburst Yellow RH Pilot 5.7 Sk | Model Sunburst Yellow

505073576

$179.99

32

Deep Black, LH Pilot 5.7 Ski

505072854

$179.99

32

Sunburst Yellow LH Pilot 5.7 Ski | Model Sunburst Yellow

505073575

$169.49

33

Black, Handle

505072976

$35.99

34

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

36

LH Upper Arm 42", Black Epoxy

505073412

$154.99

36

RH Upper Arm 42", Black Epoxy

505073416

$154.99

37

LH Lower Arm 42", Black Epoxy

505073420

$204.99

37

RH Lower Arm 42", Black Epoxy

505073426

$204.99

39

FUSION RED LH SKI LEG - Call your local BRP dealership

505073471

Unavailable

39

FUSION RED RH SKI LEG - Call your local BRP dealership

505073473

Unavailable

39

Black LH Ski Leg

505073475

$234.99

39

Black RH Ski Leg

505073477

$234.99

40

Shock Knob Adjustment Decal

516004752

$16.49

41

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

42

Sleeve

505072209

$17.84

43

Hex. Flange Elastic Nut M10

250100165

$0.85

44

Sway Bar Double Joint Link

505072204

$21.99

45

RH Front Shock | Includes 1000 to 1000,007

505073613

$877.49

45

LH Front Shock | Includes 990 to 990,007

505073612

$877.49

45a

O-Ring

415093807

$35.99

45b

Piston Ring | Not Shown

415093806

$16.86

45c

Air Valve

505070398

$20.99

45d

Screw | Not Shown

505070399

$4.12

45e

O-Ring

505070400

$4.54

45f

O-Ring

415093804

$4.54

46

Ball Joint

505073636

$51.99

47

Hex Elastic Nut M12 X 1.25

232521464

$2.11

48

Upper Ball Joint

505072913

$72.99

49

Allen Screw M3 X 0.5 X 10

250000644

$2.11

50

Deep Black, Spring

505072760

$52.99

51

Not Available As Spare Parts

XXX

Unavailable

51a

Not Available As Spare Parts

XXX

Unavailable

51b

Not Available As Spare Parts

XXX

Unavailable

51c

Not Available As Spare Parts

XXX

Unavailable

51d

Not Available As Spare Parts

XXX

Unavailable

51e

Not Available As Spare Parts

XXX

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable

53

Not Available As Spare Parts

XXX

Unavailable

54

Shock Adjustment Decal

516005534

$16.49

55

Not Available As Spare Parts

XXX

Unavailable

56

Not Available As Spare Parts

XXX

Unavailable

57

Not Available As Spare Parts

XXX

Unavailable

58

Not Available As Spare Parts

XXX

Unavailable

60

Washer

503192496

$0.77

61

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

62

Ski Stopper

505072594

$18.49

63

Hex. Flange Elastic M10 x 1.5

233201464

$7.51
