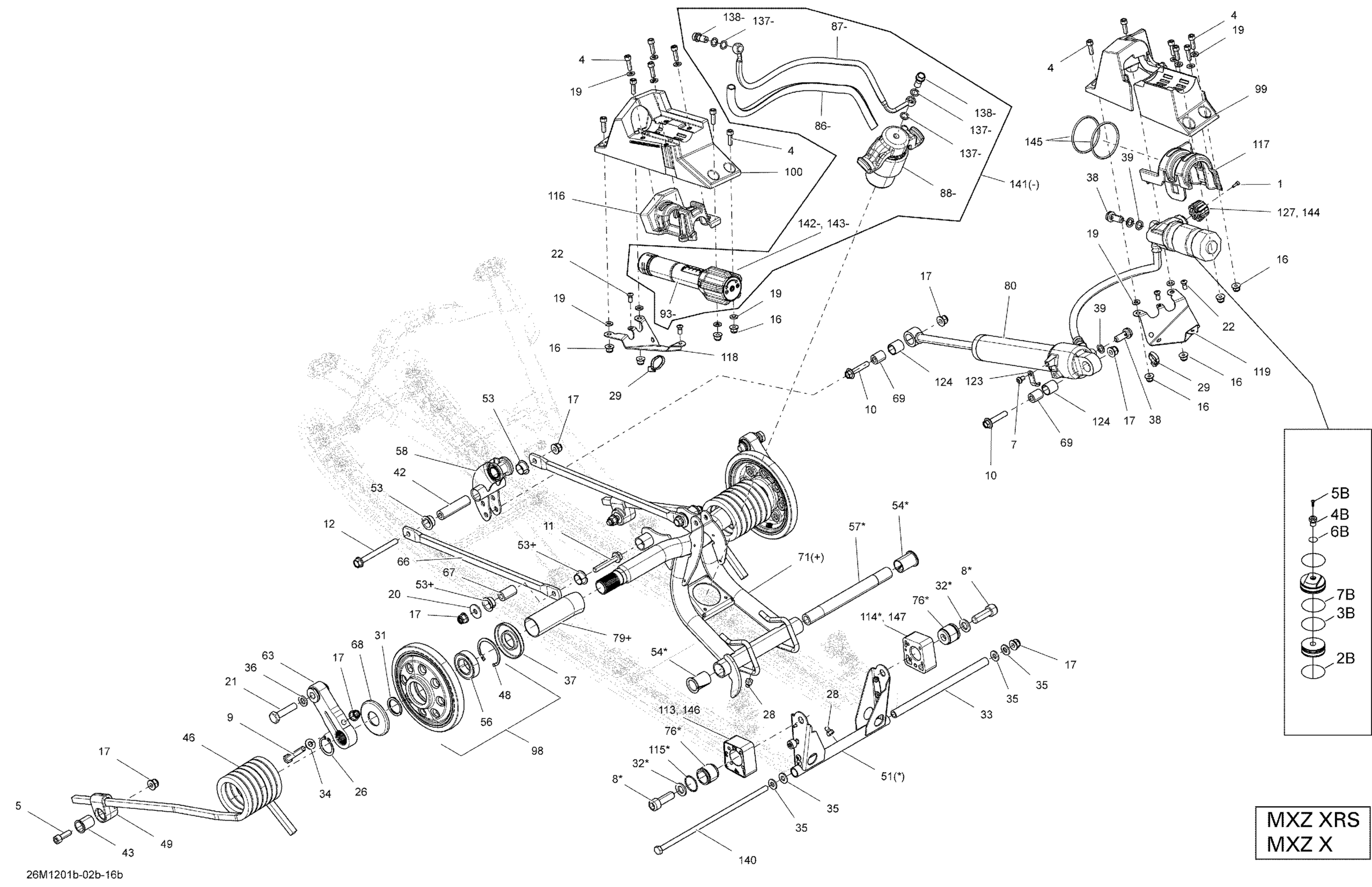

Ski-Doo MXZ XRS 600HOETEC, 2012 Rear Suspension Rear Arm Ajustable Diagram

#

Description
Price

1

Allen Screw M3 X 0.5 X 10

250000644

$2.00

4

Socket Head Screw M6 X 20

205062060

$2.21

5

Socket Screw M8 X 25

205082554

$2.00

7

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.43

8

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

9

Hex. Screw M8 X 50

207085044

$1.43

10

Hex. Flange Screw M8 X 40

207684044

$1.43

11

Hex. Flange Screw M8 X 50

207685044

$1.60

12

Hex. Flange Screw

207688544

$1.63

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

17

Hex. Flange Elastic Nut M8

233281414

$1.31

19

Stainless Flat Washer M6

234061600

$0.28

20

Flat Washer 8 mm

234082410

$1.27

21

Cap Screw Hex. M10 X 40

207204056

$7.09

22

MONOBOLT RIVET 4.8 - Call your local BRP dealership

293150179

Unavailable

26

Retaining Ring

293370080

$2.06

28

Grease Fitting

408200700

$3.21

29

Tie-Rap 180 mm

414115200

$0.10

31

Axle Spring

503189146

$7.31

32

Flat Washer

517225900

$0.16

33

Pivot Arm Axle

503189156

$20.12

34

Washer

503189157

$3.10

35

Washer

503192494

$3.01

36

Washer

503192496

$0.73

37

Labyrinth Seal

503190434

$4.16

38

Bolt

415093810

$14.52

39

O-Ring

415038700

$38.78

42

Axle Bar (Long)

503190643

$14.90

43

Spring Support Kit

861805547

$7.90

46

Black, LH Spring Square

503193158

$75.34

46

Black, RH Spring Square

503193159

$75.34

48

Retaining Ring

415129371

$8.66

49

Spring Support Kit

861805547

$7.90

51

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$114.90

53

Swivel Bushing

503191555

$5.54

54

Cushion

503191640

$5.54

56

Ball Bearing

503193548

$16.39

57

Lower Shaft

503192981

$17.13

58

Rocker

503192531

$76.09

63

Link Ass'y | Includes 3100 to 3100f

503195985

$75.34

66

ROD_LINK - Call your local BRP dealership

503193010

Unavailable

67

Axle Bar

503192555

$11.06

68

Labyrinth Ring

503192592

$4.52

69

Axle Shock Absorber

503196509

$9.69

71

Rear Arm Ass'y | With Quick Adjust System

503193618

$273.10

76

Guide Block

503192749

$5.67

79

Bushing

503192767

$14.81

80

REAR SHOCK - Call your local BRP dealership

503193173

Unavailable

86

Was 409901700 Tubing (9 mm)

219704399

$77.58

87

Not Available As Spare Part - Friction Washer

Unavailable

88

Not Available As Spare Part - Friction Washer

Unavailable

93

Not Available As Spare Part - Friction Washer

Unavailable

98

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$44.75

99

RH Support

503192810

$33.55

100

LH Support

503192811

$34.30

113

LH Cam Block

503192918

$12.27

114

RH Cam Block

503192919

$12.27

115

O-Ring

503192921

$2.18

116

LH Half Housing

503192956

$9.93

117

RH Half-Housing

503192957

$11.10

118

LH HOSE PROTECTOR - Call your local BRP dealership

503192959

Unavailable

119

RH HOSE PROTECTOR - Call your local BRP dealership

503192960

Unavailable

123

Not Available As Spare Part - Friction Washer

Unavailable

124

Leg Cushion

505072663

$7.18

127

Adjustment Knob Ass'y | Included 7740 to 7740b

503193025

Unavailable

137

Copper Washer

705601628

$4.21

138

Banjo Bolt

705600628

$10.72

140

Bolt M8 X 248mm

503192440

$29.07

141

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$699.97

142

Knob Adjuster Ass'y | Included 7010 to 7010b

503193056

$24.60

143

STICKER KNOB ADJUSTER - Call your local BRP dealership

516004751

Unavailable

144

Shock Knob Adjustment Decal

516004752

$12.57

145

O-Ring

293250085

$0.96

146

LH Block Sticker Decal

516004900

$15.64

147

RH Block Sticker Decal

516004901

$15.64

2B

O-Ring

415093807

$33.55

3B

Piston Ring | Not Shown

415093806

$14.52

4B

Air Valve

505070398

$17.13

5B

Screw | Not Shown

505070399

$3.88

6B

O-Ring

505070400

$4.25

7B

O-Ring

415093804

$4.25
