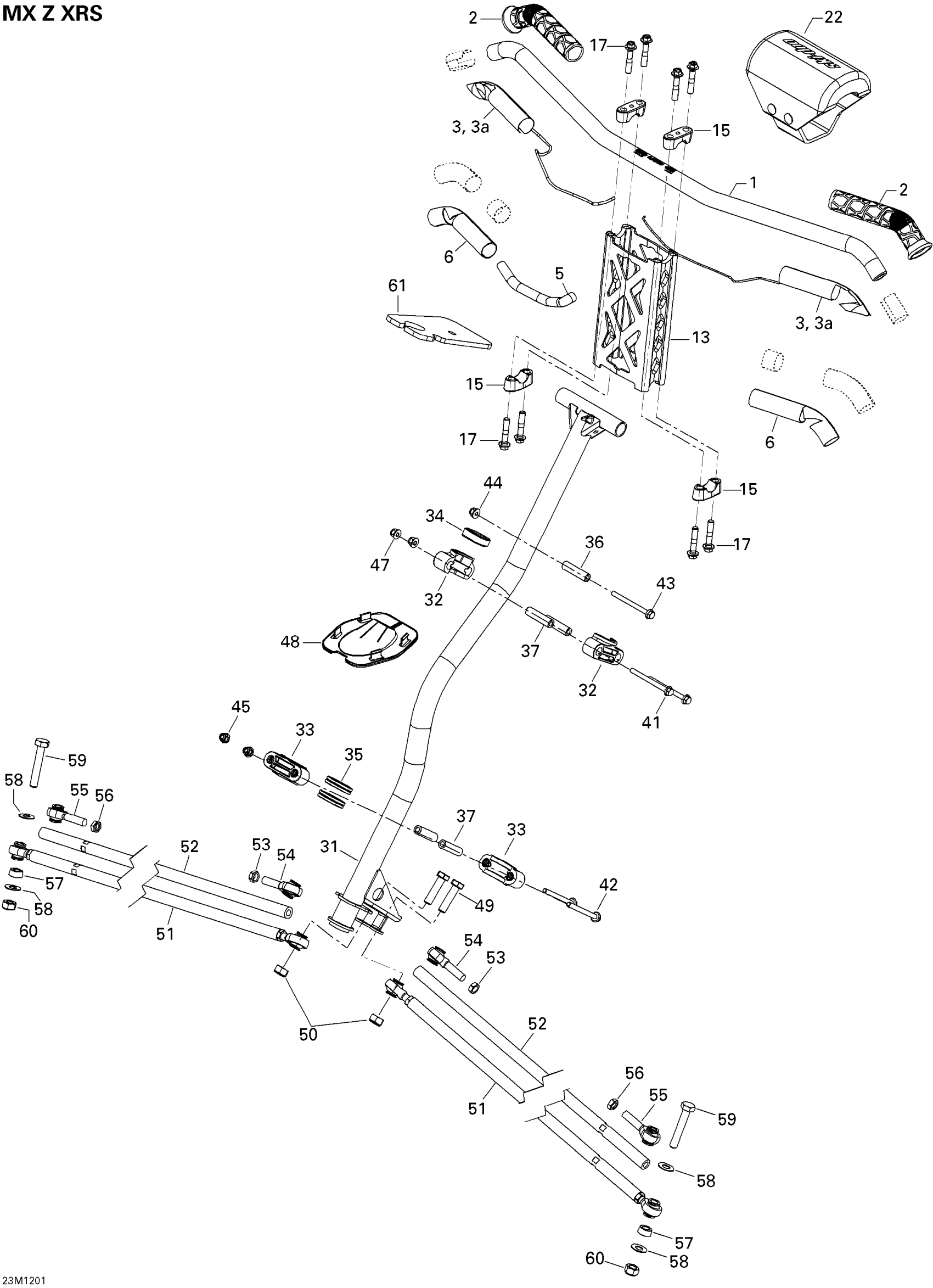

Ski-Doo MXZ XRS 600HOETEC, 2012 Steering Diagram

#

Description
Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

2

Grip

506152486

$14.71

3

Heating Element 32W

506152371

Unavailable

3a

Male Terminal

515175232

$1.49

5

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

6

Insulant

506152360

$5.89

13

Gold Handle Bar Extension

506152529

Unavailable

15

Steering Support | Includes 40 to 40a

506152751

$10.09

17

Hex. Flange Screw M8 X 40

250000352

$3.26

22

STEERING PAD - Call your local BRP dealership

506152522

Unavailable

31

MAIN TUBE - Call your local BRP dealership

506152478

Unavailable

32

Upper Half-Housing

506152508

$7.40

33

Lower Half-Housing

506152217

$5.57

34

Upper Anti-Vibration Gasket

506152509

$4.52

35

Lower Vibration Ring

506152518

$4.52

36

Housing Bushing

506152297

$10.23

37

Housing Bushing

506152297

$10.23

41

Hex. Flange Screw M6 X 70

207667056

$3.61

42

Hex. Flange Screw M6 X 70

207667044

$0.70

43

Hex. Flange Screw M6 X 70

207667056

$3.61

44

Elastic Flange Nut M6 X 1.0

233261416

$1.74

45

Elastic Flange Nut M6 X 1.0

233261416

$1.74

47

Elastic Flange Nut M6 X 1.0

233261416

$1.74

48

Plate

506152163

$10.23

49

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

50

Elastic Stop Nut M10

232500416

$1.56

51

Not Available As Spare Part - Friction Washer

Unavailable

52

Tie-Rod Ass'y

506152496

$59.97

53

LH Thread Ball Joint

506152081

$39.97

54

LH Threaded Hex. Jam Nut M10

250100016

$0.72

55

RH Threaded Ball Joint

506152019

$39.97

56

RH Threaded Hex. Jam Nut M10

732610010

$0.72

57

WASHER - Call your local BRP dealership

506152480

Unavailable

58

Washer

506152194

$4.42

59

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

60

Elastic Stop Nut M10

232500416

$1.56

61

Bushing

506152476

$9.98
