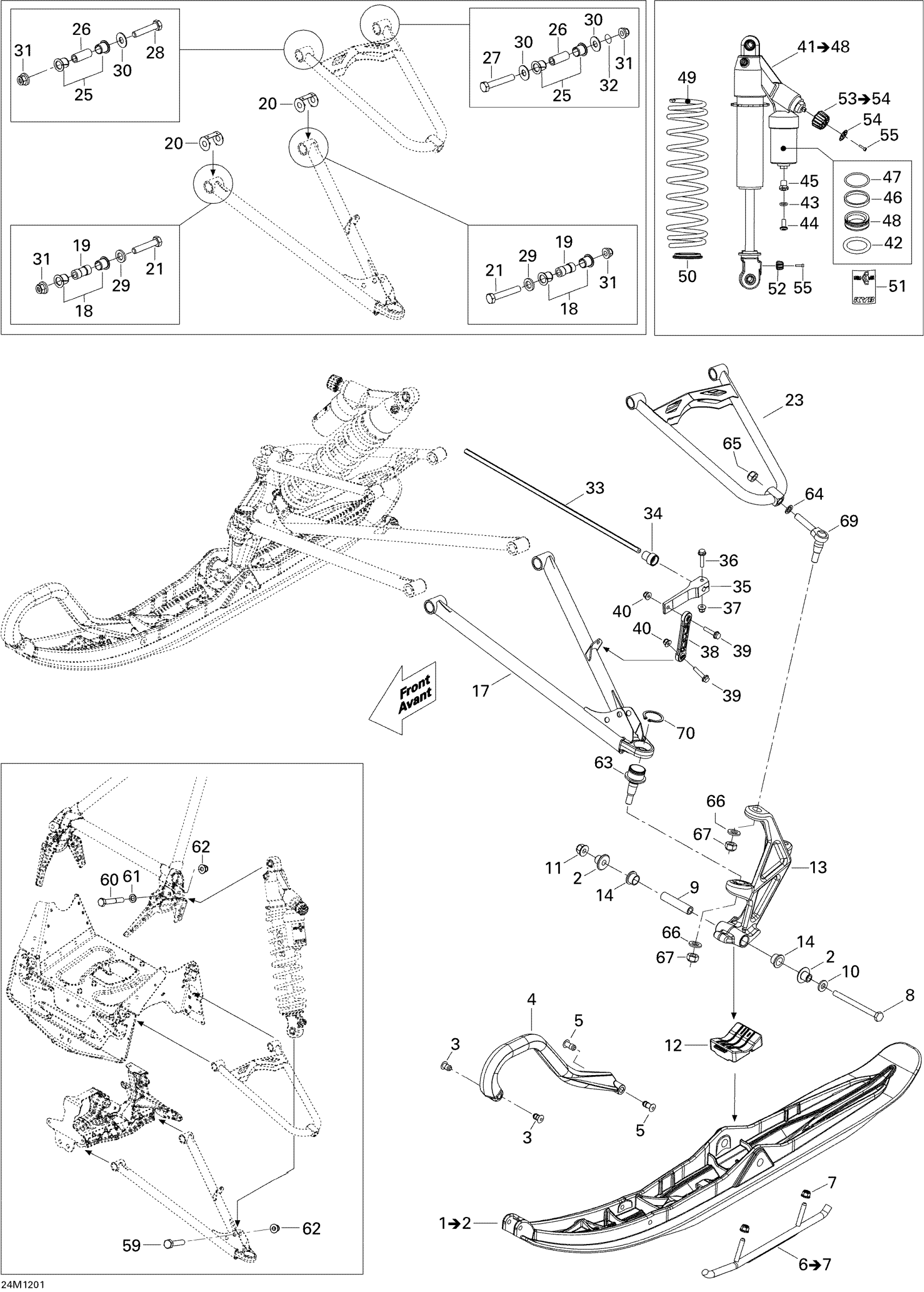

Ski-Doo MXZ XRS 600HOETEC, 2012 Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski 5.7X

505072205

$149.97

2

Ski Bushing

505071781

$15.35

3

Retainer 17mm long

505071812

$4.43

4

Black Handle

505073138

$34.58

5

Retainer 23mm Long

505072133

$5.03

6

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

9

Spacer

506133300

$19.97

10

Washer

732900049

$0.57

11

Hex. Flange Elastic Nut M10

233201414

$1.26

12

Ski Stopper

505072594

$17.66

13

GOLD LH SKI LEG - Call your local BRP dealership

505073135

Unavailable

13

GOLD RH SKI LEG - Call your local BRP dealership

505073136

Unavailable

14

Leg Bushing

505072690

Unavailable

17

Black, RH Lower Arm

505072664

$193.82

17

Black, LH Lower Arm

505072665

$193.82

18

Bushing

505072208

$3.14

19

Sleeve

505072209

$14.38

20

Wear Plate

505072634

$4.45

21

Screw Hex. M10 X 70

250001024

$1.74

23

Upper Arm | SE White/White Models

505072374

$143.05

25

Bushing

505072250

$3.14

26

Sleeve

505072143

$8.62

27

Screw Hex. M10 X 60

250001023

$1.74

28

Screw Hex. M10 X 50

250001022

$1.42

29

Washer

503189564

$0.72

30

Washer

505072392

$4.65

31

Hex. Flange Elastic Nut M10

250100165

$0.70

32

O-Ring

505072448

Unavailable

33

Stabilisator

505072602

$71.99

34

Bushing

505072064

$2.22

35

Stabilisator Lever

505072394

$16.12

36

Hex. Flange Screw M6 X 30

207663046

$1.42

37

Elastic Flange Nut M6 X 1.0

233261416

$1.74

38

Sway Bar Double Joint Link

505072204

$19.20

39

Hex. Flange Screw M6 X 30

207663046

$1.42

40

Elastic Flange Nut M6 X 1.0

233261416

$1.74

41

RH FRONT SHOCK - Call your local BRP dealership

505073094

Unavailable

41

LH FRONT SHOCK - Call your local BRP dealership

505073093

Unavailable

42

O-Ring

415093804

$4.38

43

O-Ring

505070400

$4.38

44

Screw | Not Shown

505070399

$4.00

45

Air Valve

505070398

$17.66

46

Piston Ring | Not Shown

415093806

$14.97

47

O-Ring

415093807

$34.58

48

Free Piston

505071016

Unavailable

49

GOLD SPRING - Call your local BRP dealership

505072968

Unavailable

50

Spring Stopper

503194270

$16.89

51

Shock Adjustment Decal

516005534

$12.95

52

Adjustment Knob

505072753

$2.08

53

Adjustment Knob Ass'y | Included 7740 to 7740b

503193025

Unavailable

54

Shock Knob Adjustment Decal

516004752

$12.95

55

Allen Screw M3 X 0.5 X 10

250000644

$1.74

59

Hex. Screw M10 X 55

207005544

$1.85

60

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

61

Washer

503189564

$0.72

62

Hex. Flange Elastic Nut M10

233201414

$1.26

63

Ball Joint

505073636

$49.97

64

Washer

503189276

$3.20

65

Hex. Elastic Hex. Nut M12

250100089

$0.39

66

Flat Washer 12 mm

234021410

$0.68

67

Hex. Elastic Hex. Nut M12

250100089

$0.39

69

Upper Ball Joint

505072257

$16.89

70

Circlip

293370035

$2.55
