Description

Price

1a

RAIL_SUSPENSION 120 B-348 - Call your local BRP dealership

503193246

Unavailable

1b

Black Slider Shoe 120"

503191301

$29.49

1c

Phillips Screw M6 X 25

208562531

$2.11

1d

Elastic Stop Nut M6

232561414

$0.55

2

Runner Decal

516004755

$11.99

3

Slide Protector

503192530

$19.99

4

Hex. Flange Screw M5 X 25

207652544

$0.50

5

Hex. Flange Elastic Nut M5

233251414

$1.04

7

Washer

250200140

$1.01

8a

Rubber Stopper Ass'y

503195523

$5.59

8b

Reinforcement Stopper

572084800

$12.99

9

Rubber Stopper

503190576

$12.99

10

Pop Rivet 3/16"

293150142

$2.29

11

Washer

503191273

$1.35

12

Rubber Stopper

503192750

$14.99

16a

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

16b

Ball Bearing | Package-STD

503190396

$14.30

16c

Retaining Ring

415129371

$12.01

17a

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

17b

Ball Bearing | Package-STD

503190396

$14.30

17c

Retaining Ring

415129371

$12.01

18

Casted Support

503193894

$16.49

19

Hex. Flange Screw M6 X 70

207667056

$4.44

20

Wheel Cup M6

503191820

$4.99

21

Hex. Flange Elastic Nut M6

233261466

$2.00

24

Hex. Flange Screw M6 X 25

207662556

$4.44

25

Labyrinth Seal

503190434

$6.09

26

Black, Wheel Cap

503192771

$2.39

27

Spring Support Kit

861805547

$10.49

28

Spring Support Kit

861805547

$10.49

29

Socket Screw M8 X 25

205082554

$2.11

31

Elastic Flange Nut M8

233281466

$1.01

32

Tensioner

503192583

$8.29

33

Hex. Cap Screw M6 X 30

207063054

$6.39

34

Hex. Flange Elastic Nut M6

233261466

$2.00

35

Spacer

503193250

$16.49

36

Hex Screw M10 x 100

230100054

$6.45

37

Elastic Locking Nut M10

233601466

$2.11

38

Stopper Strap

503192759

$25.99

39

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

40

Flat Washer 8 mm

250200128

$4.44

41

Elastic Flange Nut M8

233281466

$1.01

42

Axle Strap

503191260

$30.99

43

Spacer

503196943

$10.99

44

Socket Head Screw M10 X 35

205503554

$7.51

45

Washer

503192496

$0.77

46

Axle Strap

503191260

$30.99

47

Socket Head Screw M10 X 35

205503554

$7.51

48

Washer

503192496

$0.77

49a

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

49b

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

49c

Bushing

503191554

$6.14

49d

Rocker

503192531

$76.99

49e

Swivel Bushing

503191555

$7.83

49f

Bushing

503193037

$16.18

49g

Bushing | Includes 240d to 240d1

503189282

$4.34

49h

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

49i

Elastic Locking Nut M10 X 1.5

233601416

$1.69

50

Lower Axle

503191966

$15.89

51

Washer

503190656

$2.96

52

Hex. Cap Screw M12 X 35

250000537

$3.17

53

Washer

503192491

$4.54

54

Washer

503191926

$1.58

55

Axle

503190698

$20.99

56

Washer

503192496

$0.77

57

Hex. Cap Screw M10 X 60

207006056

$7.51

58

Elastic Locking Nut M10

233601466

$2.11

59

Pivot Arm Axle

503189156

$21.99

60

Bolt M8 X 248mm

503192440

$30.49

61

Washer

503192494

$3.17

62

Elastic Flange Nut M8

233281466

$1.01

63a

Rear Arm Ass'y | With Quick Adjust System

503193618

$296.49

63b

Bushing

503192767

$17.39

63c

Swivel Bushing

503191555

$7.83

63d

Cushion

503191640

$5.93

63e

Lower Shaft

503192981

$20.99

63f

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$124.99

63g

Grease Fitting

408200700

$3.49

63h

Guide Block

503192749

$6.19

63i

LH Cam Block

503192918

$14.99

63j

RH Cam Block

503192919

$14.99

63k

Washer

503189276

$3.28

63l

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

63m

Grease Fitting

408200700

$3.49

63n

O-Ring

503192921

$2.32

63o

LH Block Sticker Decal

516004900

$18.99

63p

RH Block Sticker Decal

516004901

$18.99

64a

Link Ass'y | Includes 3100 to 3100f

503195985

$75.99

64b

Hex. Screw M8 X 50

207085044

$1.48

64c

Washer

503189157

$3.28

64d

Hex. Flange Elastic Nut M8

233281414

$1.47

64e

Swivel Bushing

503191555

$7.83

65a

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$48.49

65b

Ball Bearing

503193548

$17.99

65c

Retaining Ring

415129780

$15.79

66

Labyrinth Ring

503192592

$4.99

67

Labyrinth Seal

503190434

$6.09

68

Axle Spring

503189146

$9.59

69

Cap Screw Hex. M10 X 40

207204056

$7.51

70

Washer

503192496

$0.77

71

Retaining Ring

293370080

$2.29

72

Black, LH Spring Square

503193158

$79.49

73

Black, RH Spring Square

503193159

$79.49

74

ROD_LINK - Call your local BRP dealership

503193010

Unavailable

75

Axle Bar

503192555

$14.15

76

Axle Bar (Long)

503190643

$17.39

77

Screw M8 X 90

503193372

$4.44

78

Washer

503192494

$3.17

79

Hex. Screw M8 X 55

207085544

$1.68

80

Elastic Flange Nut M8

233281466

$1.01

81

Flat Washer 8 mm

234082410

$1.47

82

Washer

503192494

$3.17

83

Axle Shock Absorber

503196509

$12.58

84a

REAR SHOCK - Call your local BRP dealership

503193173

Unavailable

84b

O-Ring

415093807

$35.99

84c

Piston Ring | Not Shown

415093806

$16.86

84d

Air Valve

505070398

$20.99

84e

Screw | Not Shown

505070399

$4.12

84f

O-Ring

505070400

$4.54

84g

O-Ring

415093804

$4.54

84h

Bolt

415093810

$16.86

84i

O-Ring

415038700

$42.99

87

Leg Cushion

505072663

$9.23

88

Hex. Flange Screw M8 X 40

207684044

$1.48

89

Elastic Flange Nut M8

233281466

$1.01

90a

CENTER SHOCK - Call your local BRP dealership

503192783

Unavailable

90b

O-Ring

415093807

$35.99

90c

Piston Ring | Not Shown

415093806

$16.86

90d

Air Valve

505070398

$20.99

90e

Screw | Not Shown

505070399

$4.12

90f

O-Ring

505070400

$4.54

90g

O-Ring

415093804

$4.54

90h

Black, Spring (52mm) Short

503193479

$90.99

90i

Black, Spring (162mm) Long

503193065

$72.99

90j

Spring Stopper

503194270

$19.99

90k

Urethane Bushing

503189117

$8.19

90l

Bushing | Includes 240d to 240d1

503189282

$4.34

90m

Bushing

503189271

$13.99

90n

Shock Adjuster Knob

503193033

$10.99

90o

Allen Screw M3 X 0.5 X 10

250000644

$2.11

90p

Spring Spacer

503192743

$16.49

91

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

92

Elastic Locking Nut M10

233601466

$2.11

93

Pivot Axle

503193435

$39.99

94

Center Bushing

503191259

$11.49

95

Washer

250200138

$2.11

96

BOLT M10 X 251MM - Call your local BRP dealership

503191896

$15.99

97

Elastic Locking Nut M10

233601466

$2.11

98

Rear Axle

503190429

$59.99

99

Rear Spacer

503191263

$18.49

101

Rear Wheel Spacer

503190428

$8.14

102a

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$51.99

102b

Ball Bearing | Package-STD

503190396

$14.30

102c

Retaining Ring

415129371

$12.01

103

Labyrinth Seal

503190682

$6.19

104

Labyrinth Seal

503190434

$6.09

105a

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$51.99

105b

Ball Bearing | Package-STD

503190396

$14.30

105c

Retaining Ring

415129371

$12.01

106

Washer

503191910

$2.32

107

Conical Spring Washer 10 mm

234201474

$1.69

108

Hex. Screw With Nylon

250000019

$1.69

109

Black, Wheel Cap

503192771

$2.39

114

LH Support

503192811

$37.99

115a

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$769.99

115b

Master Cylinder Ass'y | Included 7000a to 7000a.j

503193490

$309.99

115c

Adjustment Decal

516004917

$44.99

115d

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$769.99

115e

Connector Hose

503193476

$45.99

115f

Copper Washer

705601628

$4.44

115g

Banjo Bolt

705600628

$11.63

115h

O-Ring

293250269

$2.32

115i

WIPER SEAL - Call your local BRP dealership

503192825

Unavailable

116a

Knob Adjuster Ass'y | Included 7010 to 7010b

503193056

$26.99

116b

STICKER KNOB ADJUSTER - Call your local BRP dealership

516004751

Unavailable

117

Socket Head Screw M4 X 12

205041254

$2.11

119

LH Half Housing

503192956

$12.99

120

RH Half-Housing

503192957

$14.49

121

RH Support

503192810

$37.99

122

O-Ring

293250085

$1.01

123a

Adjustment Knob Ass'y | Included 7740 to 7740b

503193025

$14.49

123b

Shock Knob Adjustment Decal

516004752

$16.49

124

Allen Screw M3 X 0.5 X 10

250000644

$2.11

125

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

126

Plate

503193166

$19.99

127

Decal

516006369

$16.49

128

Socket Head Screw M6 X 20

205062060

$2.32

129

Hex. Flange Elastic Nut M6

233261466

$2.00

130

Stainless Flat Washer M6

234061600

$0.33

131

LH HOSE PROTECTOR - Call your local BRP dealership

503193437

Unavailable

132

RH HOSE PROTECTOR - Call your local BRP dealership

503193438

Unavailable

133

Retaining Plate

503195712

$20.99

134

Stavex Rivet

293150144

$0.82

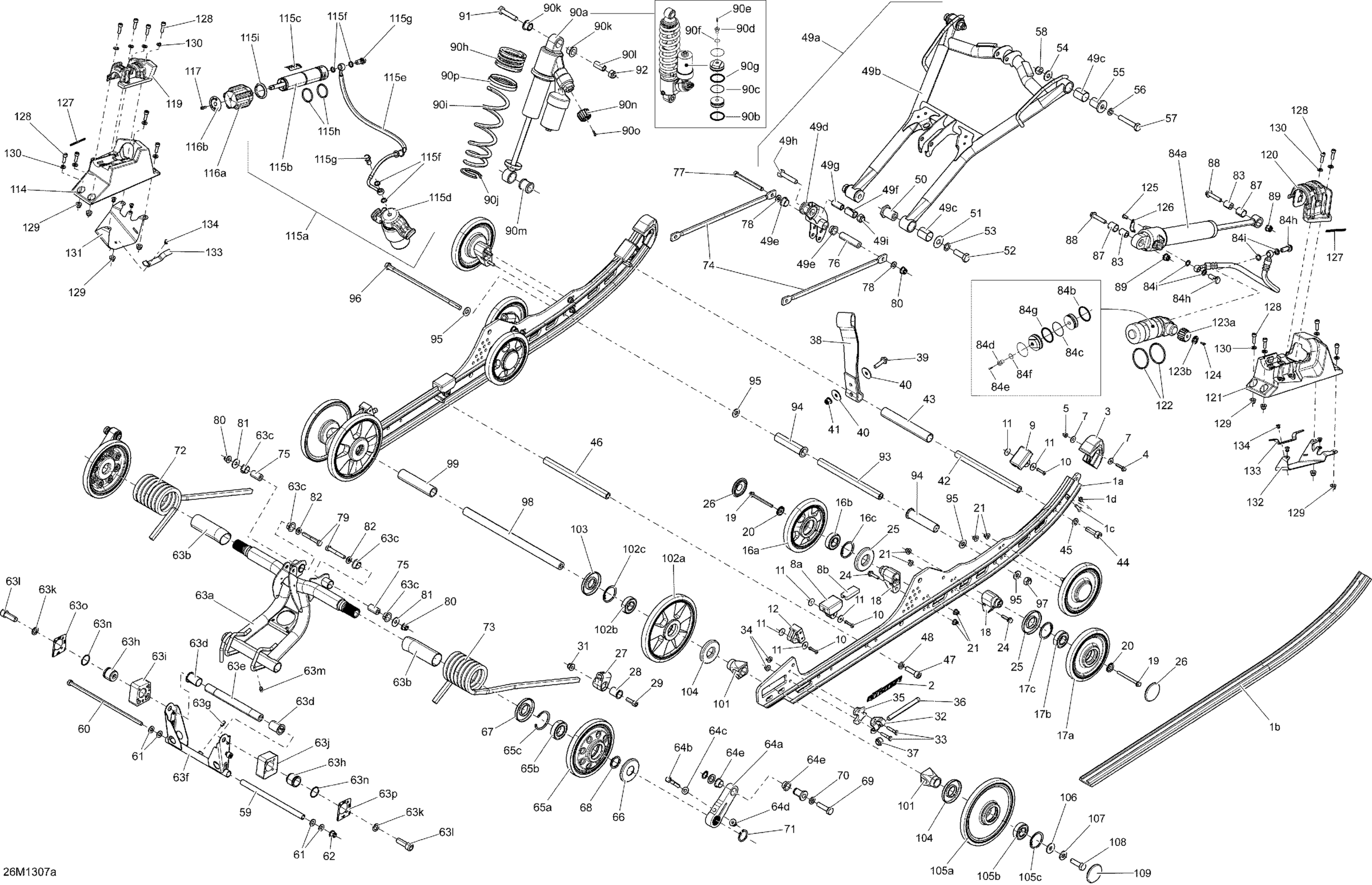

Ski-Doo MXZ XRS 600HOE, 2013 08- Rear Suspension With Adjust System Diagram

RAIL_SUSPENSION 120 B-348 - Call your local BRP dealership

Black Slider Shoe 120"

Phillips Screw M6 X 25

Elastic Stop Nut M6

Runner Decal

Slide Protector

Hex. Flange Screw M5 X 25

Hex. Flange Elastic Nut M5

Washer

Rubber Stopper Ass'y

Reinforcement Stopper

Rubber Stopper

Pop Rivet 3/16"

Washer

Rubber Stopper

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

Ball Bearing | Package-STD

Retaining Ring

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

Ball Bearing | Package-STD

Retaining Ring

Casted Support

Hex. Flange Screw M6 X 70

Wheel Cup M6

Hex. Flange Elastic Nut M6

Hex. Flange Screw M6 X 25

Labyrinth Seal

Black, Wheel Cap

Spring Support Kit

Spring Support Kit

Socket Screw M8 X 25

Elastic Flange Nut M8

Tensioner

Hex. Cap Screw M6 X 30

Hex. Flange Elastic Nut M6

Spacer

Hex Screw M10 x 100

Elastic Locking Nut M10

Stopper Strap

Hex. Flange Screw M8 X 30 | DS 650 X

Flat Washer 8 mm

Elastic Flange Nut M8

Axle Strap

Spacer

Socket Head Screw M10 X 35

Washer

Axle Strap

Socket Head Screw M10 X 35

Washer

Front Arm Ass'y | Included 2000 to 2000g

Front Arm Ass'y | Included 2000 to 2000g

Bushing

Rocker

Swivel Bushing

Bushing

Bushing | Includes 240d to 240d1

Hex. Screw M10 X 1.5 X 50

Elastic Locking Nut M10 X 1.5

Lower Axle

Washer

Hex. Cap Screw M12 X 35

Washer

Washer

Axle

Washer

Hex. Cap Screw M10 X 60

Elastic Locking Nut M10

Pivot Arm Axle

Bolt M8 X 248mm

Washer

Elastic Flange Nut M8

Rear Arm Ass'y | With Quick Adjust System

Bushing

Swivel Bushing

Cushion

Lower Shaft

Pivot Arm Ass'y | Included 3000f to 3000f.p

Grease Fitting

Guide Block
