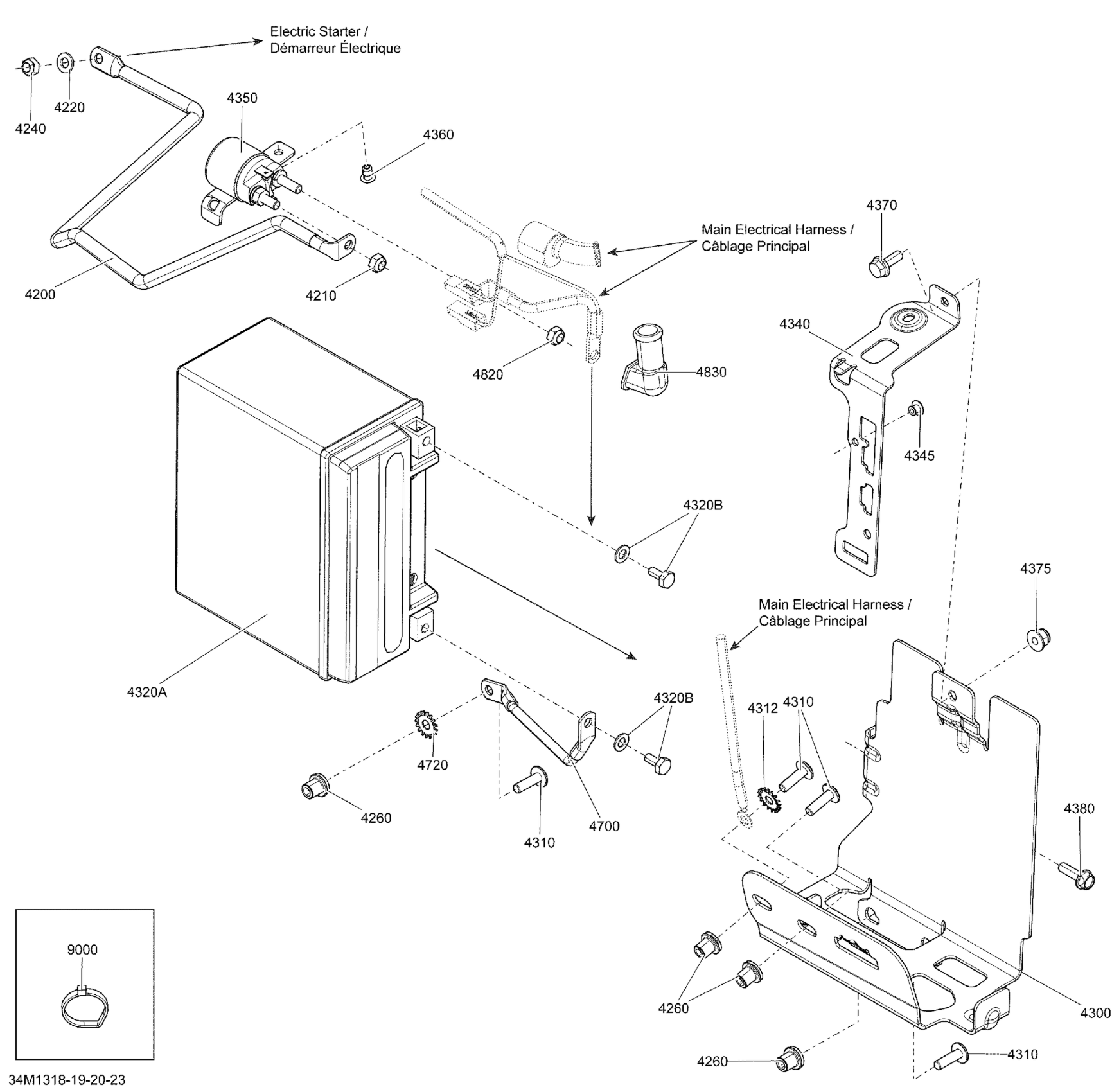

Ski-Doo MXZ X & TNT 1200 XR, 2013 Battery And Starter Diagram

Description

Price

4200

BATTERY WIRE - Call your local BRP dealership

515176557

Unavailable

4210

Elastic Stop Nut M6

232561414

$1.78

4220

Flat Washer 6 mm

234061410

$1.19

4240

Elastic Stop Nut M6

232561414

$1.78

4260

Insert

293450275

$11.36

4300

BATTERY SUPPORT - Call your local BRP dealership

515176970

Unavailable

4310

Hex. Socket Screw M6 X 20

250000770

$1.87

4312

Lock Washer Serrated M6

250200041

$1.06

4320A

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$154.45

4320B

Battery Bolt Kit

250000282

$3.39

4340

BATTERY STRIP - Call your local BRP dealership

515177008

Unavailable

4345

Pop Rivet 3/16"

390402200

$0.30

4350

Starter Relay

515176501

$91.01

4360

Pop Rivet 3/16"

390402200

$0.30

4370

Hex. Flange Screw M6 X 16

207661644

$0.70

4375

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

4380

Hex. Flange Screw M6 X 20

210262040

$2.00

4700

Ground Wire

515175749

$18.63

4720

Lock Washer Serrated M6

250200041

$1.06

4820

Elastic Stop Nut M6

232561414

$1.78

4830

Protector Cap

710000495

$9.84

9000

Tie Wrap 94 mm | 4X4

293750001

$0.96

9000

Tie Wrap 142 mm

293750002

$1.01

9000

Tie-Rap 180 mm

414115200

$0.10

9000

Tie-Rap 206 mm

293750027

$2.61

9000

Tie Wrap 368 mm

293750008

$0.97
