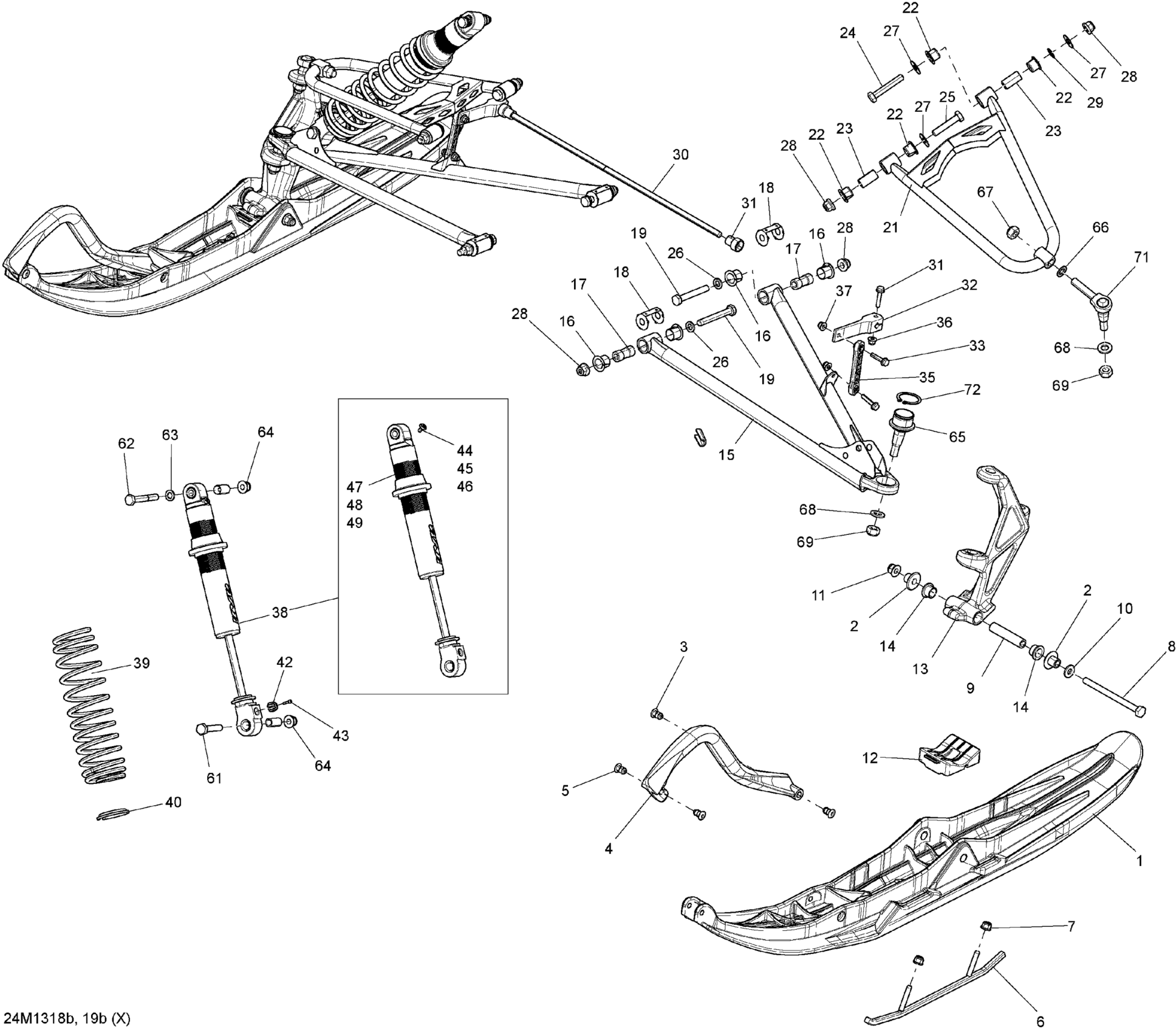

Ski-Doo MXZ X & TNT 1200 XR, 2013 Front Suspension And Ski X Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$155.94

1

Deep Black, LH Pilot 5.7 Ski

505072854

$170.12

2

Ski Bushing

505071781

$14.90

3

Retainer 17mm long

505071812

$4.30

4

Black, Handle

505070963

$34.30

5

Retainer 23mm Long

505072133

$4.88

6

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$126.09

7

Hex. Flange Elastic Nut M8

233281414

$1.31

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

9

Spacer

506133300

$19.37

10

Washer

503192496

$0.73

11

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

12

Ski Stopper

505072594

$17.13

13

BLACK LH SKI LEG - Call your local BRP dealership

505073173

Unavailable

13

BLACK RH SKI LEG - Call your local BRP dealership

505073174

Unavailable

14

Leg Bushing

505072690

$5.75

15

Black, RH Lower Arm

505072664

$184.30

15

Black, LH Lower Arm

505072665

$184.30

16

Bushing

505072208

$3.04

17

Sleeve

505072209

$13.96

18

Wear Plate

505072634

$4.31

19

Screw Hex. M10 X 70

250001024

$2.00

20

Hex. Screw M10 X 75

250001063

$11.18

21

Upper Arm | SE White/White Models

505072374

$138.03

22

Bushing

505072250

$3.04

23

Sleeve

505072143

$8.36

24

Screw Hex. M10 X 60

250001023

$2.00

25

Screw Hex. M10 X 50

250001022

$1.63

26

Washer

503189564

$0.70

27

Washer

505072392

$4.51

28

Hex. Flange Elastic Nut M10

250100165

$0.81

29

O-Ring

505072448

$2.18

30

Stabilisator

505072602

$70.12

31

Bushing

505072064

$2.15

32

Stabilisator Lever

505072394

$15.64

33

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

34

Hex. Flange Elastic Nut M6

233261466

$1.91

35

Sway Bar Double Joint Link

505072204

$18.63

36

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

37

Hex. Flange Elastic Nut M6

233261466

$1.91

38

Front Shock | Model-MX-Z X

505073117

$591.01

39

Deep Black, Spring

505072761

$49.22

40

Spring Stopper

503194270

$16.39

42

Adjustment Knob

505072753

$2.01

43

Allen Screw M3 X 0.5 X 10

250000644

$2.00

44

O-Ring

505070400

$4.25

45

Screw | Not Shown

505070399

$3.88

46

Air Valve

505070398

$17.13

47

Piston Ring

503189308

$75.34

48

O-Ring

414888312

$15.64

49

Not Available As Spare Part - Friction Washer

Unavailable

61

Hex Screw M10 X 1.5 X 55

207005554

$7.09

62

Hex. Screw M10 X 1.5 X 65

207006544

$2.63

63

Washer

503189564

$0.70

64

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

65

Ball Joint

505073636

$48.48

66

Washer

503189276

$3.10

67

Hex. Elastic Hex. Nut M12

250100089

$0.45

68

Washer

503192491

$4.25

69

Hex Elastic Nut M12 X 1.25

232521464

$2.00

71

Upper Ball Joint

505072257

$16.39

72

Circlip

293370035

$2.48
