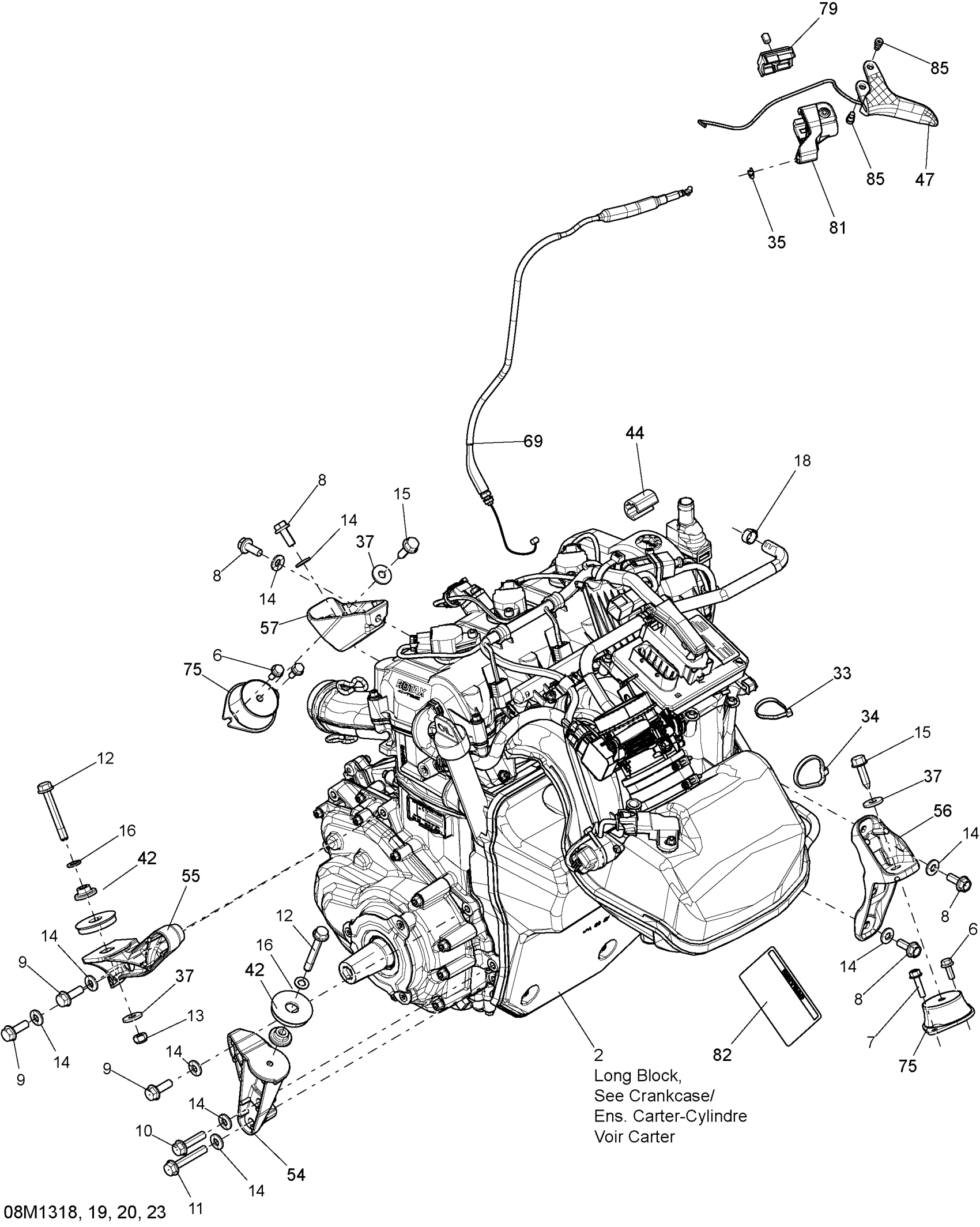

Ski-Doo MXZ X & TNT 1200 XR, 2013 Engine And Engine Support Diagram

#

Description
Price

2

Not Available As Spare Part - Friction Washer

Unavailable

6

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

7

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.06

8

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

9

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.26

10

Hex. Flange Screw M8 X 35

250000986

$1.74

11

Hex. Flange Screw M8 X 50, Scotch Grip

207585086

$4.28

12

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$1.74

13

Hex. Elastic Stop Nut M8

232581414

$0.47

14

Conical Spring Washer M8

250200146

$0.83

15

Cone Screw, M8 X 30

250000257

$1.72

16

Flat Washer With Teflon 8 mm

250200008

$3.12

18

Oetiker Clamp

293650046

$2.33

33

Tie-Rap 180 mm

414115200

$0.09

35

Circlip

414274500

$0.74

37

Yellow, Washer

503183200

$3.00

42

Stopper This part replaces 512060244.

512061202

$18.43

43

Spacer

512060285

$17.66

44

Protector

512060313

$9.31

47

Throttle Handle Ass'y

512061252

$117.66

47

Handle Ass'y

512061250

$117.66

54

Rear Support, PTO

512060591

$45.35

55

Front Support, PTO

512060593

$28.43

56

Rear Support, MAG

512060594

$29.97

57

Front Support, MAG

512060596

$29.97

69

THROTTLE CABLE - Call your local BRP dealership

512060673

Unavailable

75

Rubber Mount

512060729

$69.97

79

Upper Housing

512060859

$8.38

81

Lower Housing

512060860

$16.89

82

Caution Decal, Oil Level

516005521

Unavailable

85

Flange Screw

732601143

$4.02
