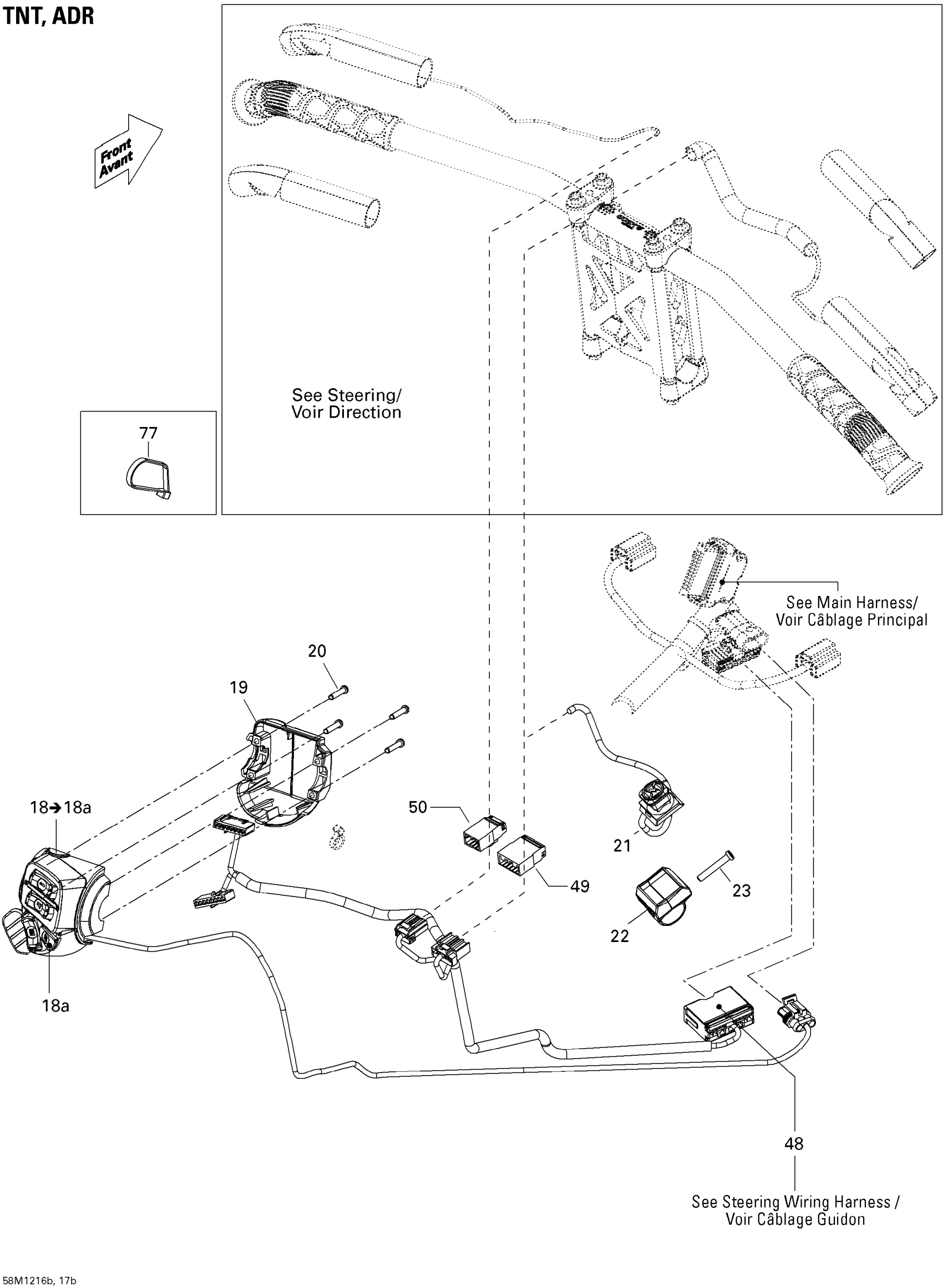

Ski-Doo MXZ X & TNT 1200 XR, 2012 Electrical Accessories, Steering TNT Diagram

#

Description

Price

18

LH Switch Housing | Includes 1 To 3

515177508

$179.99

18a

Start/RER Button

515176088

$20.99

19

Switch Housing Plate

515175926

$20.99

20

Torx Screw #8-18

250000263

$1.04

21

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

22

Kill Switch Support

515176825

$10.49

23

Torx Screw #8-18

250000263

$1.04

48

STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership | Includes 11 To 23

515176867

Unavailable

49

Male Terminal Housing, 8 Circuits

515175817

$8.79

50

Male Terminal Housing, 6 Circuits

515175662

$8.79

77

Tie-Rap 180 mm

414115200

$0.11

77

Tie Wrap 368 mm

293750008

$1.04

77

Tie Wrap 142 mm

293750002

$1.25

77

Tie Wrap 94 mm | 4X4

293750001

$1.03

77

Tie-Rap 206 mm

293750027

$2.89
