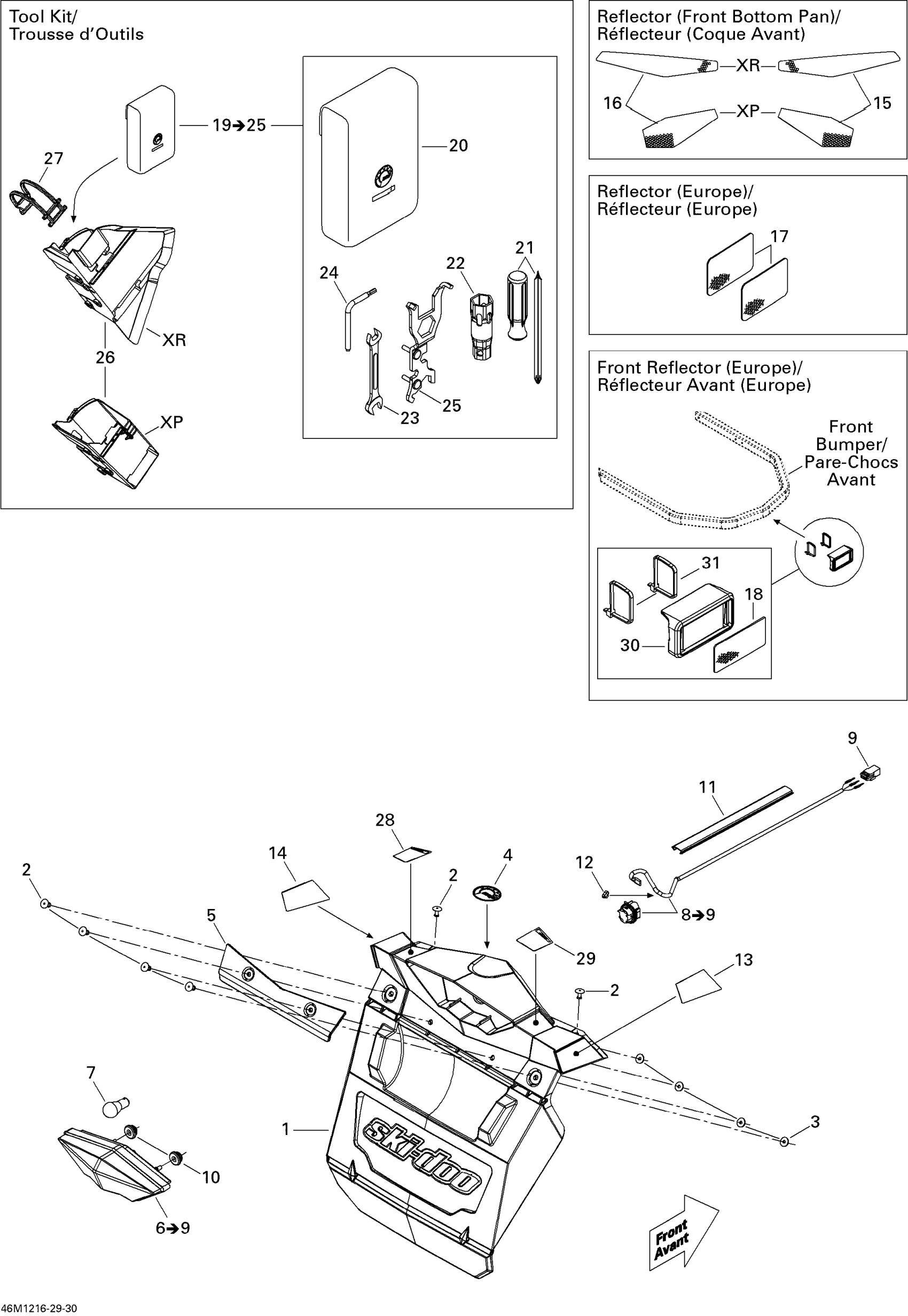

Ski-Doo MXZ X & TNT 1200 XR, 2012 09- Utilities X Diagram

#

Description
Price

1

Snow Guard

520000702

$63.99

2

Pop Rivet 3/16”

293150108

$1.19

3

Washer

517124300

$0.19

4

BRP Logo 48 mm

219903305

$19.99

5

Reinforcement

520000751

$20.99

6

Rear Light Ass'y

520000587

$105.99

7

Bulb

520000758

$9.10

8

Wiring Harness Ass'y | Not Shown

520000677

$38.99

9

Male Housing, 3 Circuits

515175494

$16.18

10

Stopper Rubber

705014429

$5.95

11

Radiator Trim

520000829

$21.99

12

Tie Wrap 142 mm

293750002

$1.25

13

YELLOW RH REAR REFLECTOR - Call your local BRP dealership | Model-Europe

520000706

Unavailable

13

Red, RH Rear Reflector

520001162

$20.99

14

YELLOW LH REAR REFLECTOR - Call your local BRP dealership | Model-Europe

520000707

Unavailable

14

Red, LH Rear Reflector

520001161

$41.99

15

RH FRONT REFLECTOR - Call your local BRP dealership

520000759

Unavailable

16

LH FRONT REFLECTOR - Call your local BRP dealership

520000760

Unavailable

17

Amber, Reflector

520000271

$19.99

18

White, Reflector

415037900

$22.99

19

Tool Kit | Includes 16 To 22

529000066

$45.99

20

Not Available As Spare Part - Friction Washer

Unavailable

21

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

24

Spacing Tool

520001142

$10.52

25

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

26

TOOL KIT RACK - Call your local BRP dealership | Model-LE & SE

520000720

Unavailable

27

Latch

520000528

$7.69

28

WARNING DECAL, SAFETY - Call your local BRP dealership

516005057

Unavailable

29

Warning Decal, Safety

516005058

Unavailable

30

Deep Black, Reflector Support

520000871

$5.79

31

Tie Rap 371 mm

293750018

$0.56
