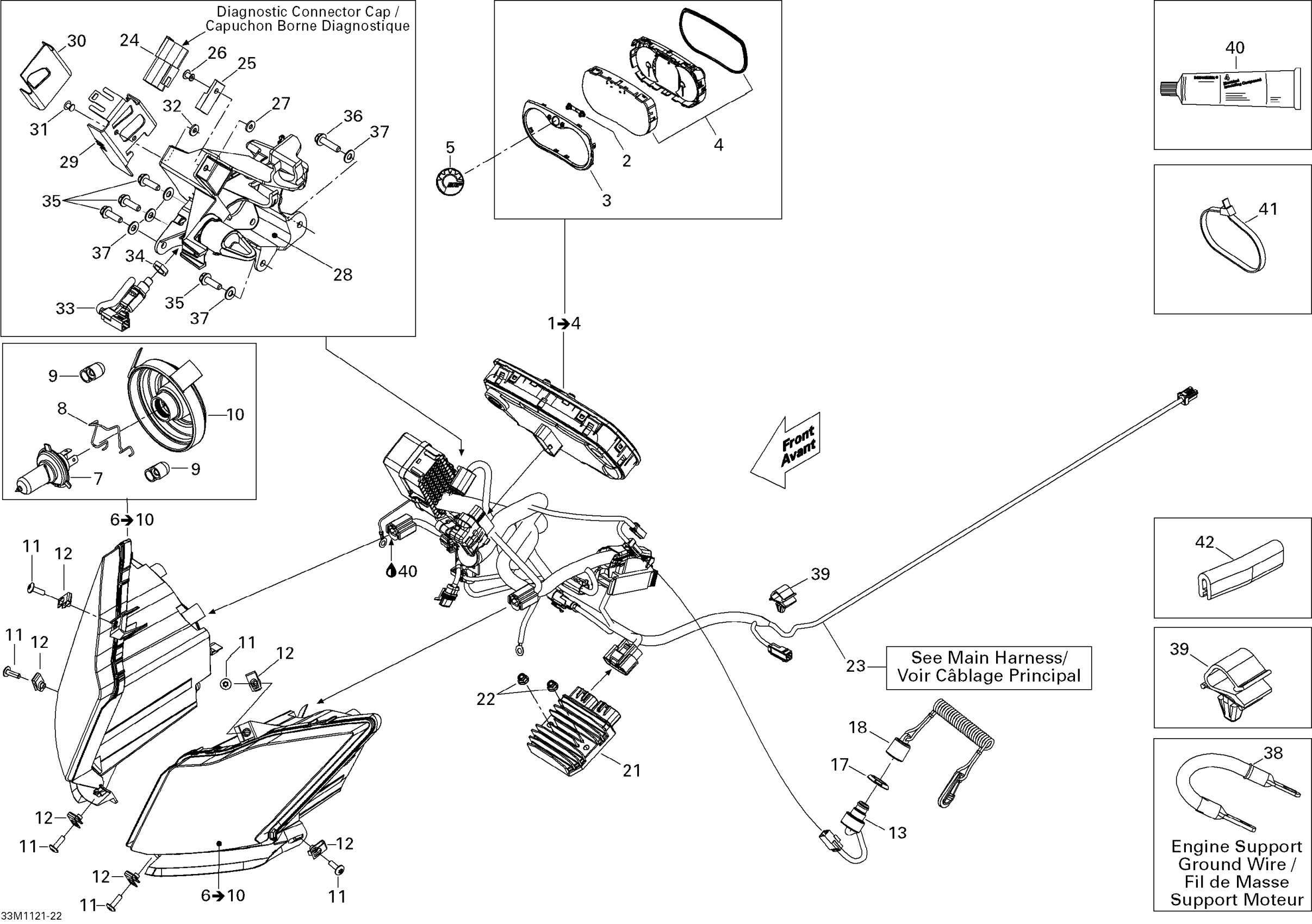

Ski-Doo MXZ X & TNT 1200 XR, 2011 10- Electrical System Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$659.99

1

Speedometer | Includes 10 to 10c

515177914

$629.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129348

$13.99

3

Gauge Ring

415129370

$11.49

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

8

BULB HOLDER - Call your local BRP dealership

515176493

Unavailable

9

Cap

515176498

$12.99

10

Rubber Cap Protector

219800280

$19.49

11

Torx Screw M6 X 20

250000722

$1.68

12

Panel Nut M6 X 1.0

250100198

$2.11

13

DESS Switch

515177249

$114.99

17

Safety Nut (DESS Switch)

278002963

$3.28

18

DESS

515178284

$84.99

21

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

MAIN HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 257

515176985

Unavailable

24

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

25

Clip

270000141

$11.49

26

Pop Rivet 3/16"

390402200

$0.35

27

Flat Washer M5

234051410

$0.53

28

PLATE - Call your local BRP dealership

515177044

Unavailable

29

Fuse Support - Call Your Local BRP Dealership

515177549

Unavailable

30

PROTECTOR - Call your local BRP dealership

515176637

Unavailable

31

Pop Rivet 3/16"

390402200

$0.35

32

Flat Washer M5

234051410

$0.53

33

Switch Ass'y

515176472

$72.99

34

Brass Nut

250000373

$7.51

35

Hex. Flange Screw M6 X 20

210262040

$2.11

36

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

37

Flat Washer

250200039

$0.74

38

Ground Wire

515177289

$26.99

39

Tie Rap Mount (screwable)

515176795

$5.39

40

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

41

Tie Wrap 94 mm | 4X4

293750001

$1.03

41

Tie Wrap 142 mm

293750002

$1.25

41

Tie-Rap 180 mm

414115200

$0.11

41

Tie-Rap 206 mm

293750027

$2.89

41

Tie Wrap 368 mm

293750008

$1.04

42

Trim 1000Mm Long

219704354

$15.99
