Description

Price

1

FRAME GSX LE REV XR 120'' - Call your local BRP dealership | Includes 1 to 37

415129664

Unavailable

2

E MODULE - Call your local BRP dealership

518327485

Unavailable

3

RH Side Member

518326328

$284.99

4

LH Side Member

518326330

$284.99

5

Front Member

518326198

$64.99

6

Stavex Rivet

293150144

$0.82

7

Hemlock Rivet 6.5 mm

293150120

$7.41

8

Hemlock Rivet, 6.5 mm

293150119

$4.29

9

Leg Bushing

505072690

$12.49

10

Not Available As Spare Part - Friction Washer

Unavailable

11

MAG Engine Support

518325371

$77.49

12a

Hex. Flange Screw M6 X 20

207662044

$2.00

12b

Hex. Flange Screw M6 X 16

207661644

$0.74

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Hex. Flange Screw M6 X 20

207662044

$2.00

15

RH Reinforcement

518324874

$27.99

16

LH Reinforcement

518324875

$27.99

17

RH Deflector, Black Polypropylene

518325782

$13.99

18

LH Deflector, Black Polypropylene

518325783

$13.99

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

20

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

21

RH Slide Bracket

518324885

$39.99

22

LH Slide Bracket

518324886

$39.99

23

RH Rear Base

518325973

$21.99

24

LH Rear Base | Includes 10v to 10x

518325974

$21.99

25

RH Roller

518324812

$194.99

26

LH Roller

518324813

$194.99

27

Insert

293450275

$12.99

28

Seal

518326656

$9.19

29

FRONT RADIATOR ASS'Y - Call your local BRP dealership

518326489

Unavailable

30

Clinch Stud M6 X 20

250300027

$2.09

31

Rear Radiator Ass'y

518326666

$720.49

32

Stavex Rivet

293150144

$0.82

33

Rear Cap

518327105

$22.49

34

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

35

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

36

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

37

Full Moon Dart 5 mm

293730042

$2.21

38

Insert M5 X 0.8

293450268

$2.09

A

Pop Rivet 3/16"

390402300

$0.75

B

Avex Rivet

390909200

$0.30

C

Avex Rivet

390909100

$0.30

D

Stavex Rivet

293150144

$0.82

E

Henrob Rivet

293150146

$2.09

F

Hemlock Rivet, 6.4 mm

293150174

$7.86

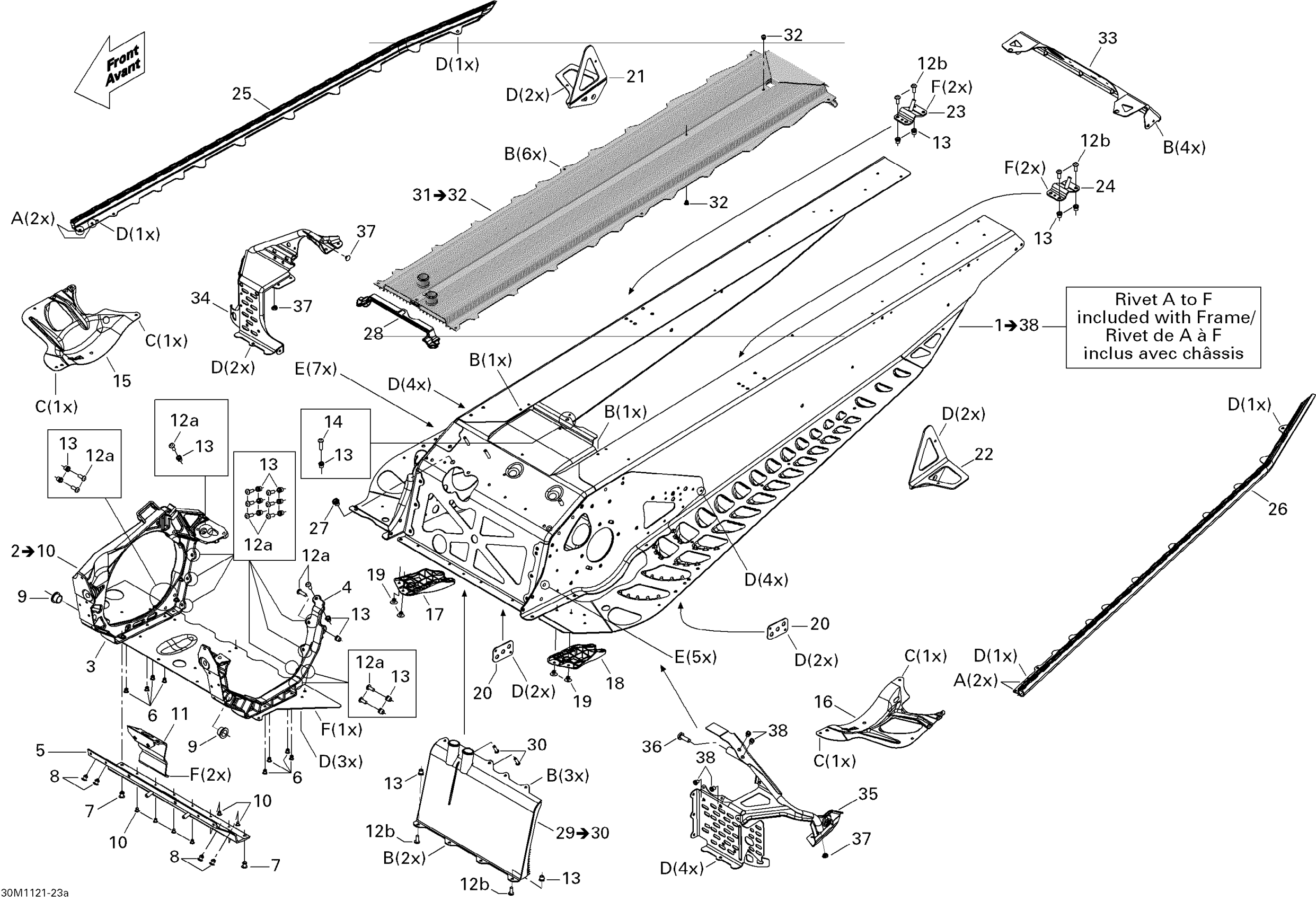

Ski-Doo MXZ X & TNT 1200 XR, 2011 09- Frame TNT Diagram

FRAME GSX LE REV XR 120'' - Call your local BRP dealership | Includes 1 to 37

E MODULE - Call your local BRP dealership

RH Side Member

LH Side Member

Front Member

Stavex Rivet

Hemlock Rivet 6.5 mm

Hemlock Rivet, 6.5 mm

Leg Bushing

Not Available As Spare Part - Friction Washer

MAG Engine Support

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 16

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

RH Reinforcement

LH Reinforcement

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

Pop Rivet 3/16" | DS 650 X

REINFORCEMENT PLATE - Call your local BRP dealership

RH Slide Bracket

LH Slide Bracket

RH Rear Base

LH Rear Base | Includes 10v to 10x

RH Roller

LH Roller

Insert

Seal

FRONT RADIATOR ASS'Y - Call your local BRP dealership

Clinch Stud M6 X 20

Rear Radiator Ass'y

Stavex Rivet

Rear Cap

RH Stirup | Includes 10aa to 10ab

LH STIRUP - Call your local BRP dealership

Torx Screw M8 X 1.25 X 25, Scotch Grip

Full Moon Dart 5 mm

Insert M5 X 0.8

Pop Rivet 3/16"

Avex Rivet

Avex Rivet

Stavex Rivet

Henrob Rivet

Hemlock Rivet, 6.4 mm
