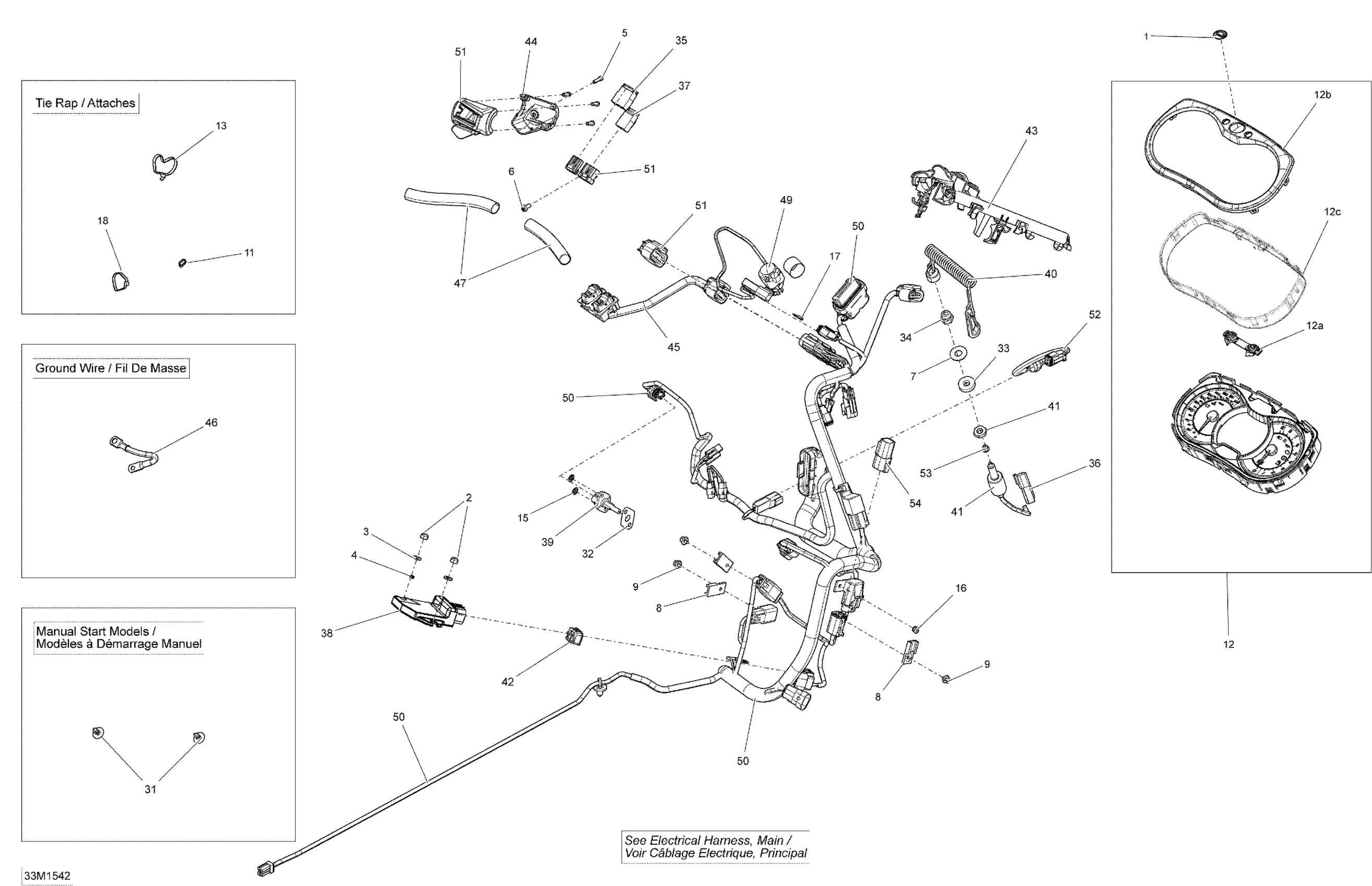

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 Electrical System _33M1542 Diagram

#

Description
Price

1

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

2

Elastic Stop Nut M6

232561434

$1.55

3

Flat Washer 6 mm

234061410

$1.04

4

External Serrated Lock Washer 6 mm

234461608

$0.92

5

Torx Screw

250000671

$0.83

6

Pan Screw Forming, 7500C

250000690

$2.06

7

Washer

250200032

$4.98

8

Clip

270000141

$8.33

9

Avdel Rivet 3/16"

293150037

$0.47

11

Tie Wrap 94 mm | 4X4

293750001

$0.83

12

Speedometer | Includes 10 to 10c

515177910

$615.35

12a

Speedometer Button | XTP

415129355

$13.94

12b

Gauge Ring

415129348

$11.71

12c

Lens | XTP

415129349

$23.05

13

Tie Wrap 368 mm

293750008

$0.85

15

Push Nut

389804300

$0.43

16

Pop Rivet 3/16"

390402200

$0.26

17

Male Lock, 2 Circuits

409207500

$3.02

18

Tie-Rap 180 mm

414115200

$0.09

31

Black, Dart

414644300

$0.78

32

Seal

508000769

$5.22

33

WASHER - Call your local BRP dealership

510004418

Unavailable

34

Switch Nut

515145900

$10.83

35

Male Terminal Housing, 6 Circuits

515175662

$8.57

36

Male Terminal Housing, 2 Circuits

515175665

$8.02

37

Male Terminal Housing, 4 Circuits

515175846

$8.57

38

Voltage Regulator

515176364

$147.66

39

Air Temperature Sensor

515176366

$18.43

40

Cap Ass'Y This part replaces 515176462.

515178292

$37.66

41

Brake Switch

515175653

$15.57

42

Lock

515176681

$18.43

43

Connector Plate

515177134

$14.02

44

LH Switch Housing Plate

515177149

$16.89

45

Double Switch Module

515177154

$75.35

46

Ground Wire

515177289

$25.35

47

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

49

Kill Switch

515177454

Unavailable

50

Main Harness | Includes 1 To WMS

515177567

Unavailable

51

LH Switch Housing

515178305

$236.12

52

Temperature Sensor This part replaces 420664508.

420664509

$142.28

53

Plunger Cap

570151100

$10.14

54

Housing

710003006

$7.24
