Partiron

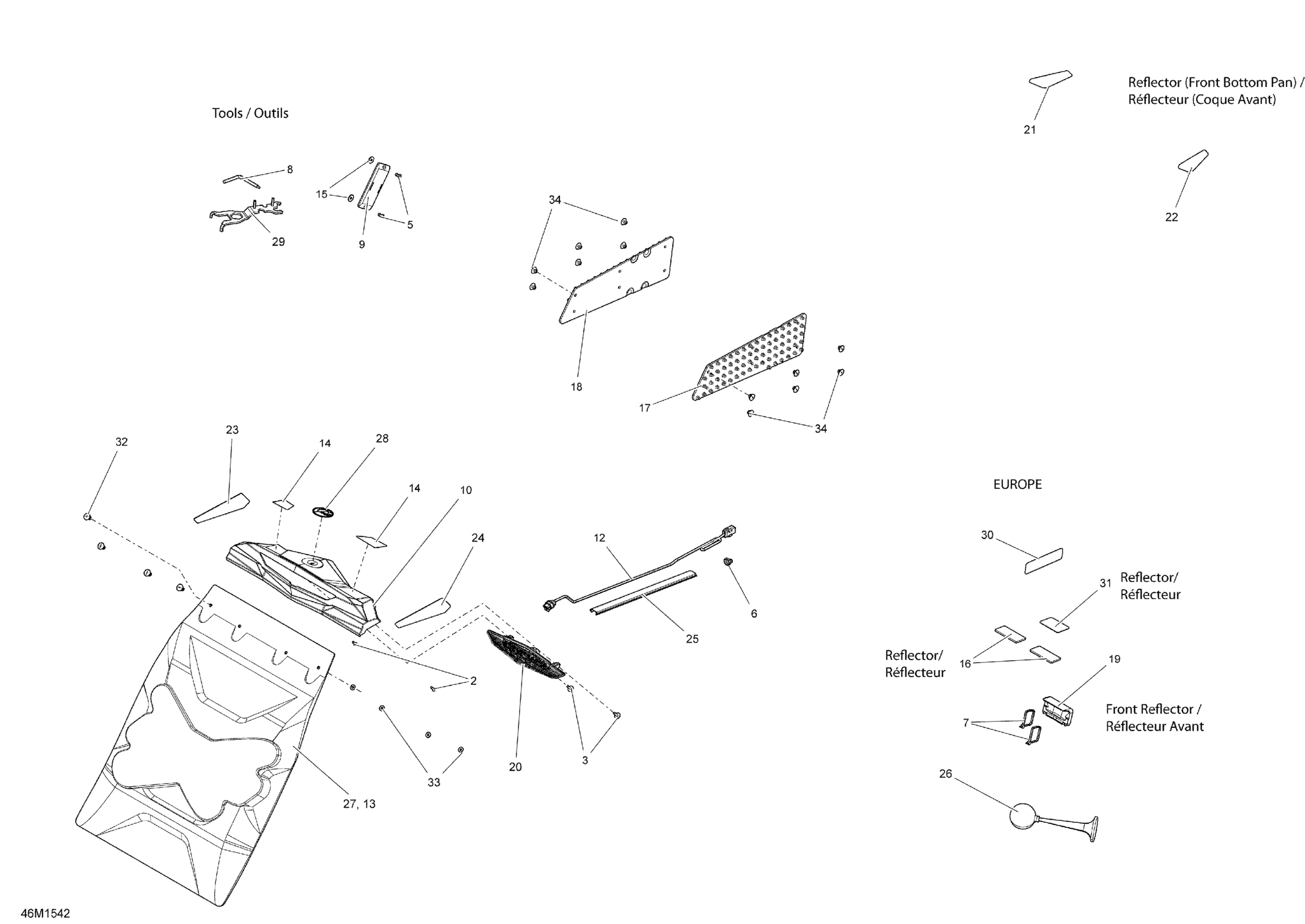

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 Utilities _46M1542 Diagram

#

Description
Price

2

Hex. Screw K40 X 13

241141340

$0.83

3

Screw M4 X 16

250000725

$2.87

5

Pop Rivet 3/16"

293150008

$0.40

6

Tie Wrap 142 mm

293750002

$0.88

7

Tie Rap 371 mm

293750018

$0.46

8

Belt Installation Tool

417127044

$12.99

9

LENS - Call your local BRP dealership | Europe

510004350

Unavailable

10

Deep Black, Light Fairing

511000810

$19.97

12

Wiring Harness Ass'y | Package-137"

515177275

$19.20

13

Decal X

516003647

$46.12

14

Security Label, XS

516006914

Unavailable

14

Warning Decal, Safety

516005058

Unavailable

15

Washer

517124300

$0.16

16

Amber, Reflector

520000271

$19.20

17

Grip Plate Kit

860200164

$43.05

18

Grip Plate Kit

860200164

$43.05

19

Deep Black, Reflector Support

520000871

$5.29

20

Rear Light

520001143

$75.99

21

Yellow, LH Front Reflector

520001236

$19.97

22

Yellow, RH Front Reflector

520001237

$19.97

23

Red, LH Rear Reflector

520001238

$17.66

23

Yellow, LH Rear Reflector

520001240

$17.66

24

Red Rh Rear Reflector

520001239

$17.66

24

Yellow, RH Rear Reflector

520001241

$17.66

25

Radiator Trim

520000829

$20.74

26

Horn

549011291

$35.35

27

Snow Flap

520001441

$86.99

28

BRP Logo 48 mm

219903947

$14.88

29

Wrench

520001499

$13.99

30

CE Decal | Model Europe

516006804

$9.94

31

White, Reflector

415037900

$19.20

32

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

33

Flat Washer

517225900

$0.17

34

Pop Rivet 3/16"

293150103

$0.54
