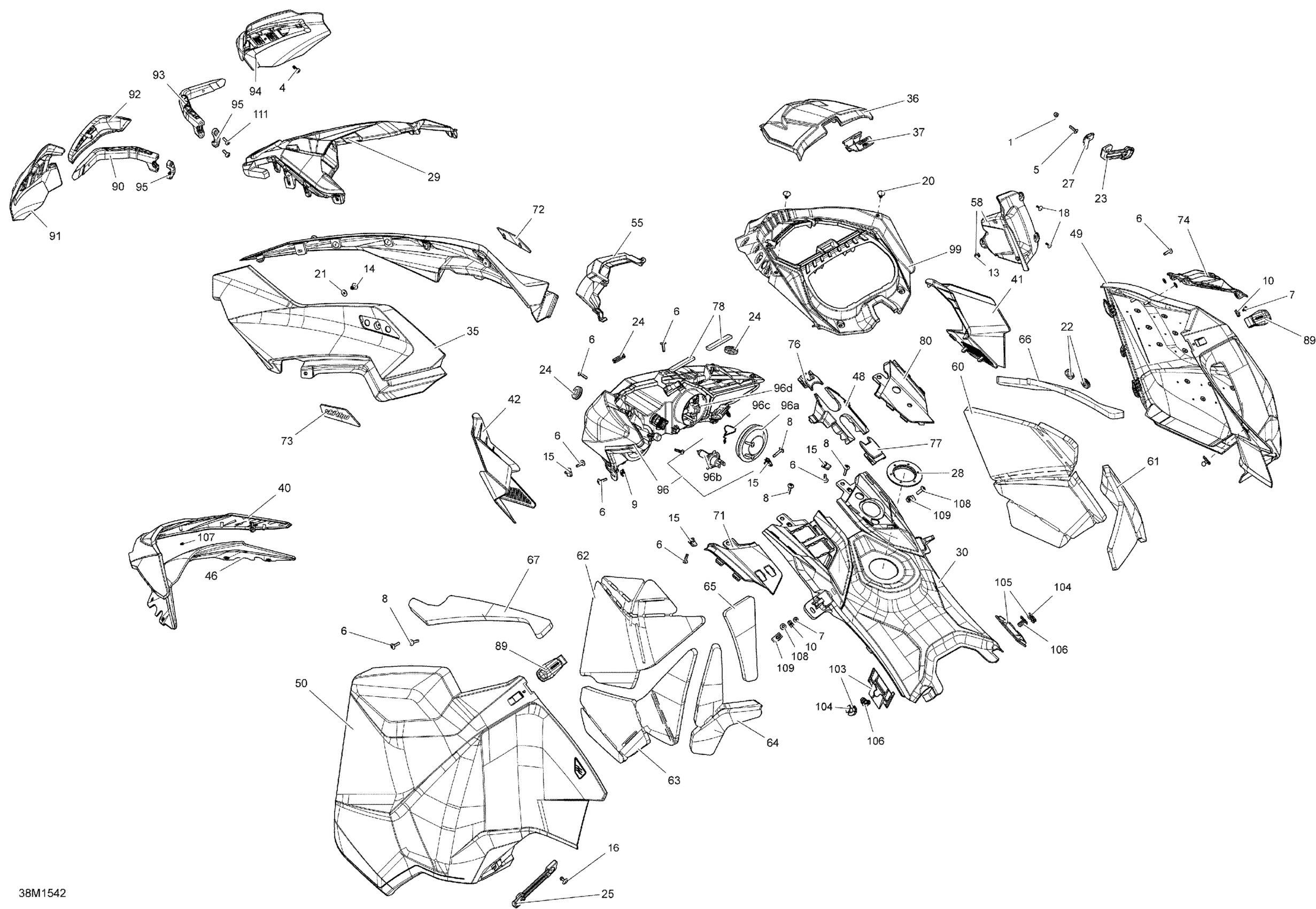

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 Hood _38M1542 Diagram

#

Description
Price

1

Flange Elastic Nut M5

233251434

$1.66

4

Truss Head Torx Screw K50 X 20

250000297

$2.06

5

Torx Screw M5 X 20

250000792

$1.74

6

Torx Screw M5 X 20

250000528

$1.74

7

Hexalob Screw M4 X 10

250000565

$1.74

8

Torx Screw M5 X 26

250000587

$3.61

9

Jack Nut M5

250100035

$6.03

10

Weld Nut M4

250100156

$4.25

13

Black, Cap

275500241

$2.76

14

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

15

Panel Nut M5 X 0.8

250000958

$3.48

16

Pop Rivet 3/16”

293150108

$1.23

18

Pop Rivet 5/32"

293150170

$3.02

20

Black, Dart

414644300

$0.78

21

Washer

517124300

$0.16

22

Grommet

517302841

$2.22

23

RH Panel Latch

517303612

$9.49

24

Grommet

517303756

$3.15

25

LH Panel Latch

517303808

$9.91

27

Latch Support

517304221

$6.49

28

Console Nut

517304518

$13.78

29

Deep Black, Center Hood

517304796

$198.43

30

Deep Black, Rear Console

517305641

$212.28

35

HOOD RH B-354 - Call your local BRP dealership

517305575

$174.58

35

HOOD LH B-354 - Call your local BRP dealership

517305576

Unavailable

36

Deep Black, Upper Storage Access Cover

517304912

$15.35

37

Cover Latch

517304917

$10.23

40

Enjo Pare-Brise*Windshield Tri | Package X This part replaces 517304922.

860200937

$26.89

41

RH Air Deflec.Console, Black 63% Transm. | Package X

517304923

$33.05

42

LH Air Deflec.Console, Black 63% Transm. | Package X

517304924

$33.05

48

Deep Black, Console Support

517304970

$11.45

49

Deep Black - RH Panel | Manual Start

517305508

$286.12

50

Deep Black LH Panel

517305510

$189.20

55

Headlight Trim Cap

517305010

$35.35

58

Deep Black RH Console | Package XRS

517305060

$33.82

60

RH Upper Panel Foam

517305082

$40.74

61

RH Rear Panel Foam

517305085

$18.43

62

LH Upper Panel Foam

517305086

$18.43

63

LH CENTER PANEL FOAM - Call your local BRP dealership

517305087

$23.05

64

LH Lower Panel Foam

517305088

$18.43

65

LH REAR PANEL FOAM - Call your local BRP dealership

517305089

$10.20

66

RH Rear Hood Foam

517305090

$12.69

67

LH Rear Hood Foam

517305091

$12.69

71

Deep Black, LH Front Console

517305128

$29.97

72

RH Hood Filler Plate, SKI-DOO | Package XRS

517305137

$12.45

73

LH Hood Filler Plate, SKI-DOO | Package XRS

517305138

Unavailable

74

RH Panel Vent Grid Deep Black

517305140

$29.20

76

Deep Black, Support Console Cap

517305147

$4.57

77

Deep Black, Support Console Cap

517305148

$4.66

78

Seal Joint

517305157

$2.28

80

DEEP BLACK RH FRONT CONSOLE - Call your local BRP dealership

517305183

Unavailable

89

Panel Latch

517305279

$14.85

90

Deep Black, LH Arm

517305290

$23.05

91

LH Deflector, Smoked 60%

517305291

$20.12

92

Sunburst Yellow, LH Cap, SKI-DOO

517305589

$36.12

92

Sunburst Yellow, RH Cap, SKI-DOO

517305588

$36.12

93

Deep Black, RH Arm

517305293

$20.12

94

RH Deflector, Smoked 60%

517305294

$20.12

95

Clamp

517305296

$3.93

96

Headlamp

517306180

$233.05

96a

Cap

219400070

$16.89

96b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

96c

Holder Bracket

219800282

$5.49

96d

Spring

219800281

$3.23

99

Deep Black, Indicator Support

517305512

$61.51

103

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$12.69

104

Ring

517305723

$3.31

105

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$12.69

106

Pin

517305734

$3.40

107

Push Nut

250100158

$1.74

108

Torx Truss Screw M6 X 20

250000705

$1.74

109

Panel Nut M6 X 1.0

250100198

$1.73

111

Torx Screw M5 X 20

250000724

$1.39
