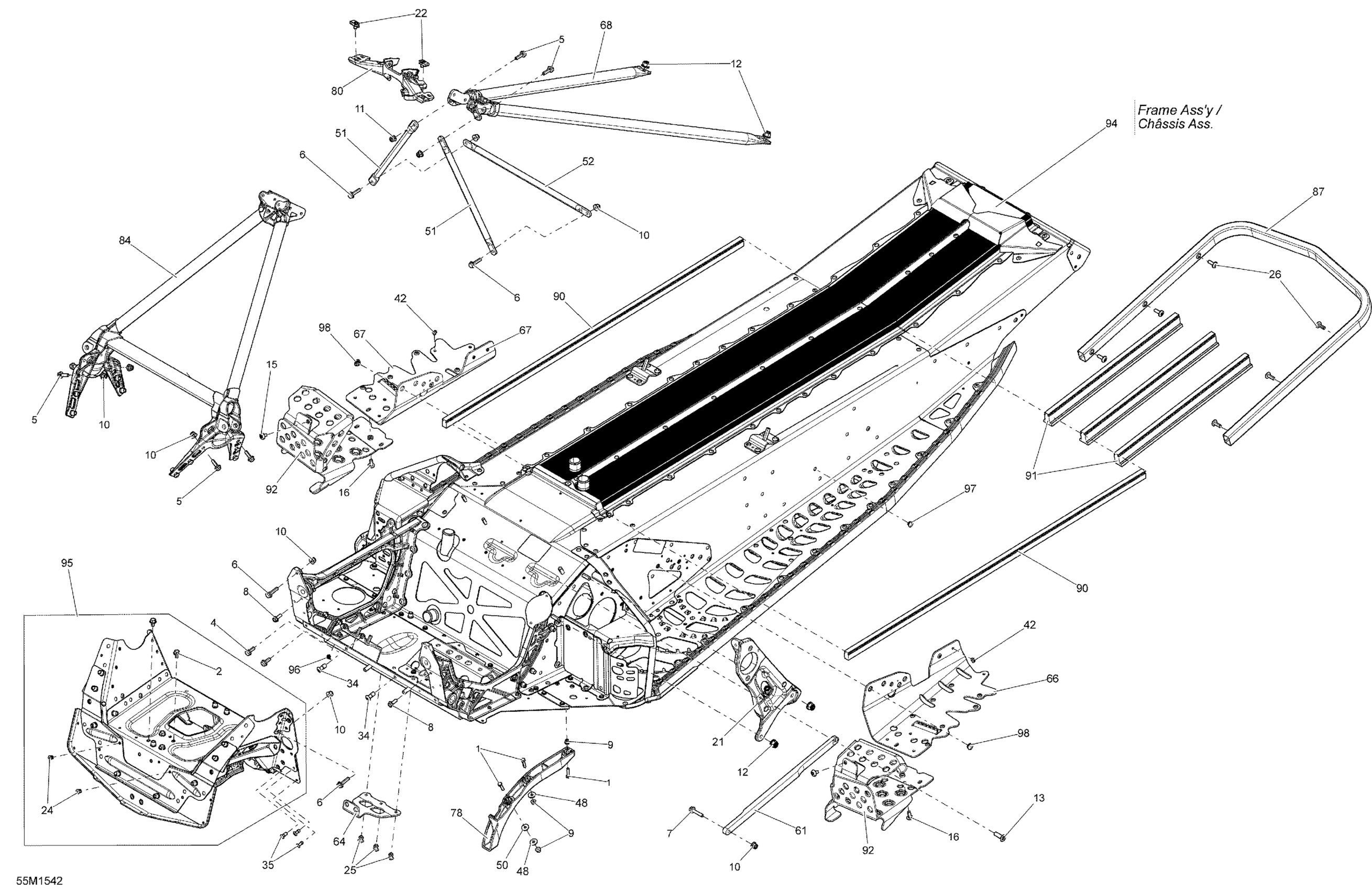

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 Frame And Components _55M1542 Diagram

#

Description
Price

1

Hex. Screw M5 X 20

207152044

$0.85

2

Flange Screw M6 X 10, Scotch Grip

207561044

$6.76

4

Hex. Flange Screw M6 X 16

207661644

$0.70

5

Hex. Flange Screw M6 X 20

207662044

$1.91

6

Hex. Flange Screw M6 X 25

207662544

$0.61

7

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

8

Hex. Flange Screw M6 X 16

210261650

$1.40

9

Flange Elastic Nut M5

233251434

$1.91

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

11

Elastic Flange Nut M6 X 1.0

233261416

$2.00

12

Hex. Flange Elastic Nut M8

233281414

$1.31

13

Torx Screw M8 X 25, Scotch Grip

250000143

$2.03

15

Torx Truss Screw M6 X 12

250000767

$1.91

16

Torx Screw M6 X 16

250000365

$2.00

21

Pulley Support

518328346

$114.15

22

Panel Nut M5 X 0.8

250000958

$4.00

24

Stavex Rivet

293150144

$0.75

25

Ornit Rivet 6,5 X 14.5

293150266

$1.88

26

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

34

Monobolt Rivet 6.4

293150182

$2.82

35

Monobolt Rivet, 4.8 mm

293150191

$0.93

42

Pop Rivet 3/16"

390402200

$0.30

48

Washer | DS 650 X

391301600

$0.46

50

Washer

517124300

$0.18

51

Upper Lateral Column Support

518325114

$20.12

52

Center Column Support

518325115

$20.12

61

LINK - Call your local BRP dealership

518326118

Unavailable

64

MODULE REINFORCEMENT - Call your local BRP dealership

518326466

Unavailable

66

LH BRACKET - Call your local BRP dealership

518327131

Unavailable

67

RH BRACKET - Call your local BRP dealership

518327132

Unavailable

68

Rear Member

518326559

$237.28

78

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.13

80

Sub A Support

518327145

$76.84

84

Front Member

518327565

$306.69

87

Black, Rear Bumper | Except Package Iron Dog

518327637

$164.90

90

FRONT PROTECTOR - Call your local BRP dealership

518328040

Unavailable

91

REAR PROTECTOR - Call your local BRP dealership

518328041

Unavailable

92

RH FOOTREST - Call your local BRP dealership

518328106

$179.82

92

LH FOOTREST - Call your local BRP dealership

518328107

Unavailable

94

FRAME - Call your local BRP dealership

415130162

Unavailable

95

S-MODULE - Call your local BRP dealership This part replaces 518328551.

518327766

Unavailable

96

Black Dart 5 mm

293730053

$4.28

97

Black, Dart 8 mm

293730047

$2.07

98

Black, Dart 10 mm

293730060

$4.28
