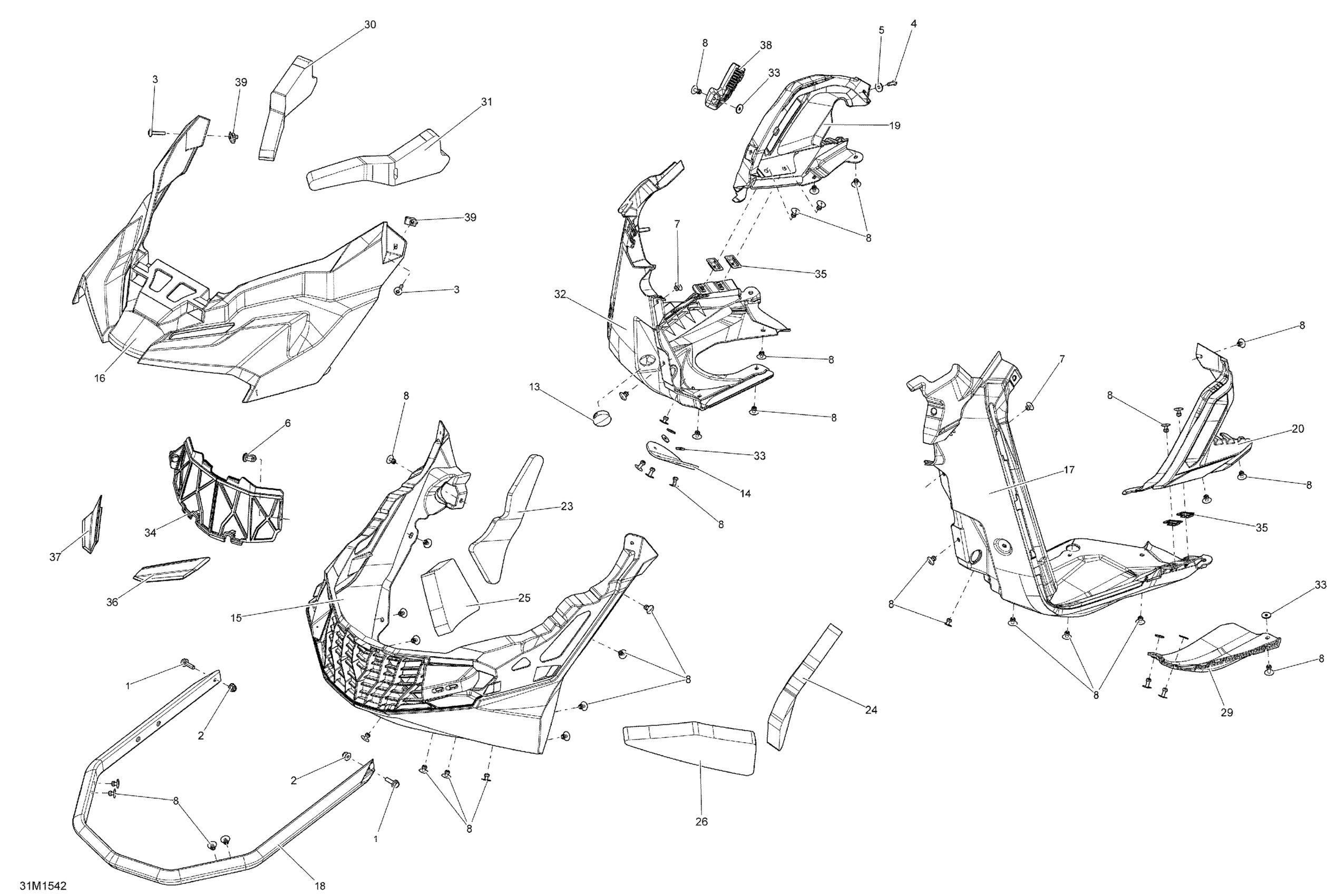

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 09- Bottom Pan _31M1542 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3

Torx Screw M5 X 26

250000587

$4.44

4

Socket Screw M5 X .80 X 16

250000652

$1.01

5

Washer M5

250200025

$0.74

6

Tuflok Plastic Rivet

293150230

$1.47

7

Pop Rivet 3/16"

293150103

$0.55

8

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

13

Black, Nylon Cap

414916600

$4.69

14

Snow Deflector

502006935

$54.99

15

YELLOW FRONT BOTTOM PAN - Call your local BRP dealership

502007404

Unavailable

16

Yellow Bottom Pan Cap | Sunburst Yellow Hull Cap Models

502007397

$69.99

17

Deep Black, LH Bottom Pan

502007254

$67.99

18

Black Front Bumper | Engine 600HO E-TEC Except Package Enduro This part replaces 502007176.

860201167

$88.99

19

Black - RH Side Bottom Pan Panel

502007306

$58.99

20

Black - LH Side Bottom Pan Panel

502007304

$56.99

23

RH Bottom Pan Upper Foam

502007243

$13.49

24

LH Bottom Pan Upper Foam

502007244

$13.49

25

RH Bottom Pan Lower Foam

502007245

$15.99

26

LH Bottom Pan Lower Foam

502007246

$15.99

29

GUARD PLATE - Call your local BRP dealership

502007261

Unavailable

30

RH Bottom Pan Cap Foam

502007263

$15.99

31

LH Bottom Pan Cap Foam

502007264

$15.99

32

Deep Black, RH Bottom Pan

502007253

$67.99

33

Washer

517124300

$0.19

34

Pre-Filter

517305029

$38.99

35

Rivet Plate

517305109

$4.99

36

LH Cap

517305122

$4.38

37

RH Cap

517305123

$4.38

38

Stopper Bumper

517305280

$18.99

39

Panel Nut M5 X 0.8

250000958

$4.23
