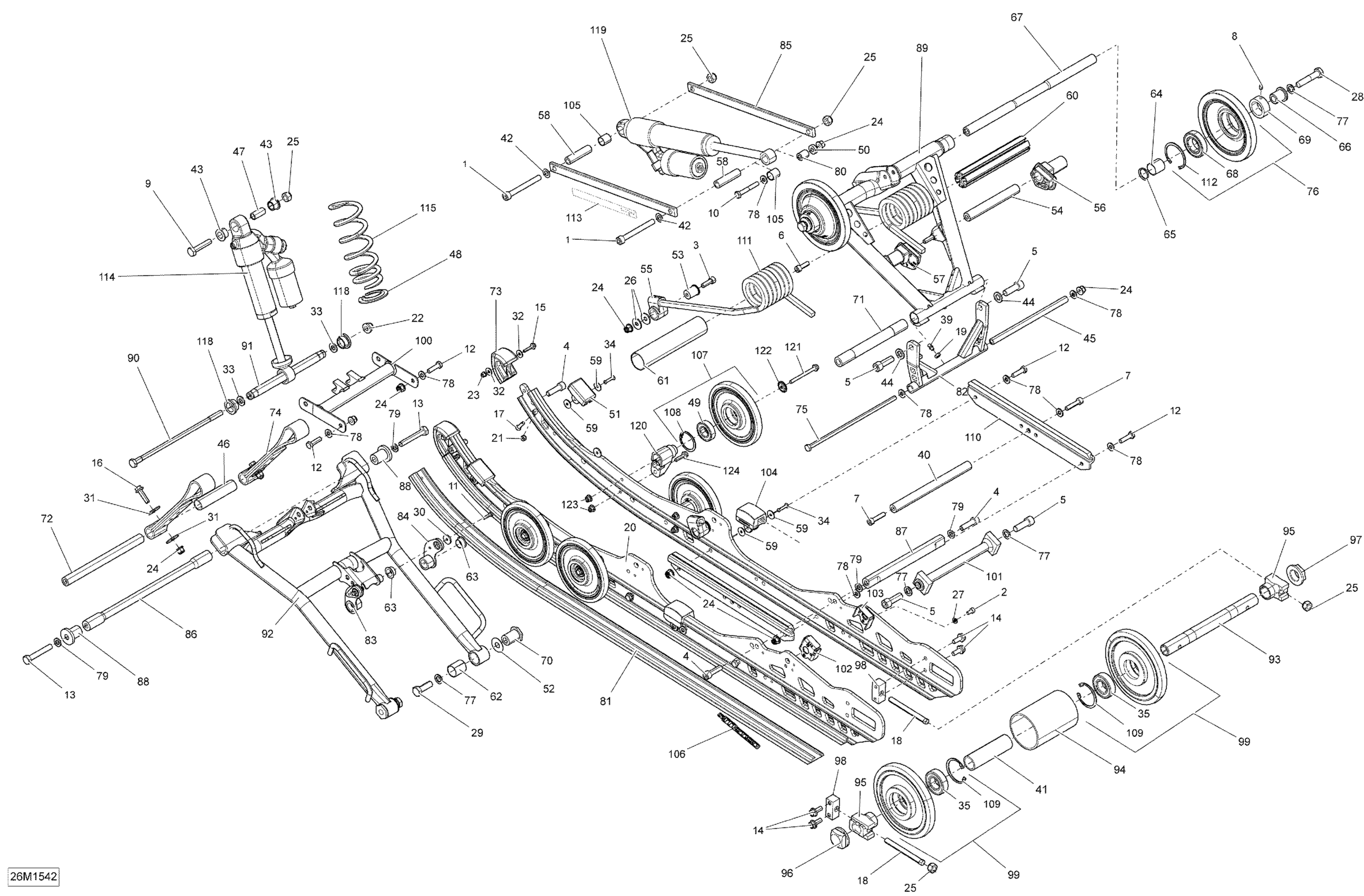

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 08- Rear Suspension _26M1542 Diagram

#

Description
Price

1

Socket Screw M10 X 90

205009044

$8.01

2

Socket Head Screw M6 X 12

205061260

$1.58

3

Socket Screw M8 X 25

205082554

$2.11

4

Socket Head Screw M10 X 35

205503554

$7.51

5

Socket Head Screw Scotch Grip Din.912

205523587

$2.11

6

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

7

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.64

8

Socket Set Screw M6 X 8

206260844

$1.48

9

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

10

Hex. Screw M8 X 55

207085586

$7.41

11

Hex. Screw M5 X 20

207152044

$0.90

12

Hex. Cap Screw M8 X 30

207183054

$4.44

13

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

14

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

15

Hex. Flange Screw M5 X 25

207652544

$0.50

16

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

17

Phillips Screw M6 X 25

208562531

$2.11

18

Socket Head Screw

205009087

$11.60

19

Hexagonal Nut M6

232061404

$0.34

20

PAINTED RUNNER - Call your local BRP dealership

503194098

Unavailable

21

Elastic Stop Nut M6

232561434

$1.99

22

Flange Elastic Nut M10

233201466

$3.17

23

Flange Elastic Nut M5

233251434

$2.00

24

Elastic Flange Nut M8

233281466

$1.01

25

Elastic Locking Nut M10

233601466

$2.11

26

Flat Washer 8 mm

234082410

$1.47

27

Lock Washer M6, Black

234161471

$0.53

28

Hex. Cap Screw M12 X 60, Scotch Grip

250000485

$13.16

29

Hex. Cap Screw M12 X 35

250000537

$3.17

30

Washer

250200016

$0.74

31

Flat Washer 8 mm

250200128

$4.44

32

Washer

250200140

$1.01

33

Flat Washer

250200143

$3.17

34

Pop Rivet 3/16"

293150013

$1.37

35

Ball Bearing

293350115

$12.11

39

Grease Fitting

408200700

$3.49

40

Axle

503151600

$18.49

41

Center Spacer

503156000

$12.01

42

Washer

503175800

$3.28

43

Urethane Bushing

503189117

$8.19

44

Washer | 7415/7416. 7417/7418.

503189148

$2.85

45

Pivot Arm Axle

503189156

$21.99

46

Spacer

503189265

$4.99

47

Bushing | Includes 240d to 240d1

503189282

$4.34

48

Spring Stopper

503190271

$22.49

49

Ball Bearing | Package-STD

503190396

$14.30

50

Spacer

503190526

$10.49

51

Rubber Stopper

503190576

$12.99

52

Washer

503190656

$2.96

53

Spring Support Kit

861805547

$10.49

54

Spring Cam Axe

503191178

$28.99

55

Spring Support Kit

861805547

$10.49

56

RH Spring Cam

503191190

$15.29

57

LH Spring Cam

503191191

$15.79

58

Bar Axle

503191192

$41.49

59

Washer

503191273

$1.35

60

Spring Axle

503191344

$36.99

61

Plastic Bushing

503191345

$7.83

62

Bushing

503191554

$6.14

63

Swivel Bushing

503191555

$7.83

64

Bushing

503191773

$16.79

65

Washer

503191774

$2.32

66

Bushing

503191775

$17.39

67

Upper Shaft

503191776

$45.99

68

Ball Bearing

503191778

$12.49

69

Retaining Ring

503191782

$17.99

70

Lower Axle

503191966

$15.89

71

Lower Shaft

503192095

$45.99

72

Axle Strap

503191260

$30.99

73

Runner Protector

503192299

$24.99

74

Stopper Strap

503192360

$20.99

75

Bolt M8 X 248mm

503192440

$30.49

76

BLACK WHEEL ASS'Y 155 MM - Call your local BRP dealership

503192483

Unavailable

77

Washer

503192491

$4.54

78

Washer

503192494

$3.17

79

Washer

503192496

$0.77

80

Axle Shock Absorber

503196509

$12.58

81

Black Slider, 154"

503192618

$34.99

82

Pivot Arm

503192701

$294.99

83

LH ROCKER ARM - Call your local BRP dealership

503192706

Unavailable

84

RH ROCKER ARM - Call your local BRP dealership

503192707

Unavailable

85

ROD_LINK - Call your local BRP dealership

503192712

Unavailable

86

Slide Bushing

503192713

$98.49

87

Limit Axle

503192715

$83.99

88

Bushing

503192721

$35.99

89

Rear Arm

503193126

$349.49

90

Bolt M10 X 251MM

503193227

$17.29

91

Pivot Axle

503193435

$39.99

92

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 2000 to 2000,006

503195009

Unavailable

93

Rear Axle

503193692

$139.99

94

Bushing

503193693

$17.39

95

Spacer

503193694

$38.99

96

Nut

503193695

$27.49

97

Nut

503193696

$25.99

98

Tensioner

503193697

$40.99

99

Wheel 165" | Includes 670 to 670b

503194127

$51.99

100

Reinforcement

503194129

$104.99

101

Cam Axle

503194161

$249.99

102

Plate

503194162

$28.99

103

Plate

503194163

$28.99

104

Stopper Rubber

503194164

$14.99

105

Leg Cushion

505072663

$9.23

106

Runner Decal

516004755

$11.99

107

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

108

Retaining Ring

415129371

$12.01

109

Retaining Ring

415129371

$12.01

110

Rail Reinforcement

503194175

$109.99

111

LH Spring

503194179

$62.49

111

RH Spring

503194180

$62.49

112

Retaining Ring

415129598

$12.01

113

Shock Position Decal

516005609

$19.99

114

CENTER SHOCK - Call your local BRP dealership

503194011

Unavailable

115

PAINT SHOCK SPRING - Call your local BRP dealership

503194190

Unavailable

118

Bushing

503189271

$13.99

119

REAR SHOCK - Call your local BRP dealership

503194012

Unavailable

120

Casted Support

503193894

$16.49

121

Hex. Flange Screw M6 X 70

207667056

$4.44

122

Wheel Cup M6

503191820

$4.99

123

Hex. Flange Elastic Nut M6

233261466

$2.00

124

Hex. Flange Screw M6 X 25

207662556

$4.44
