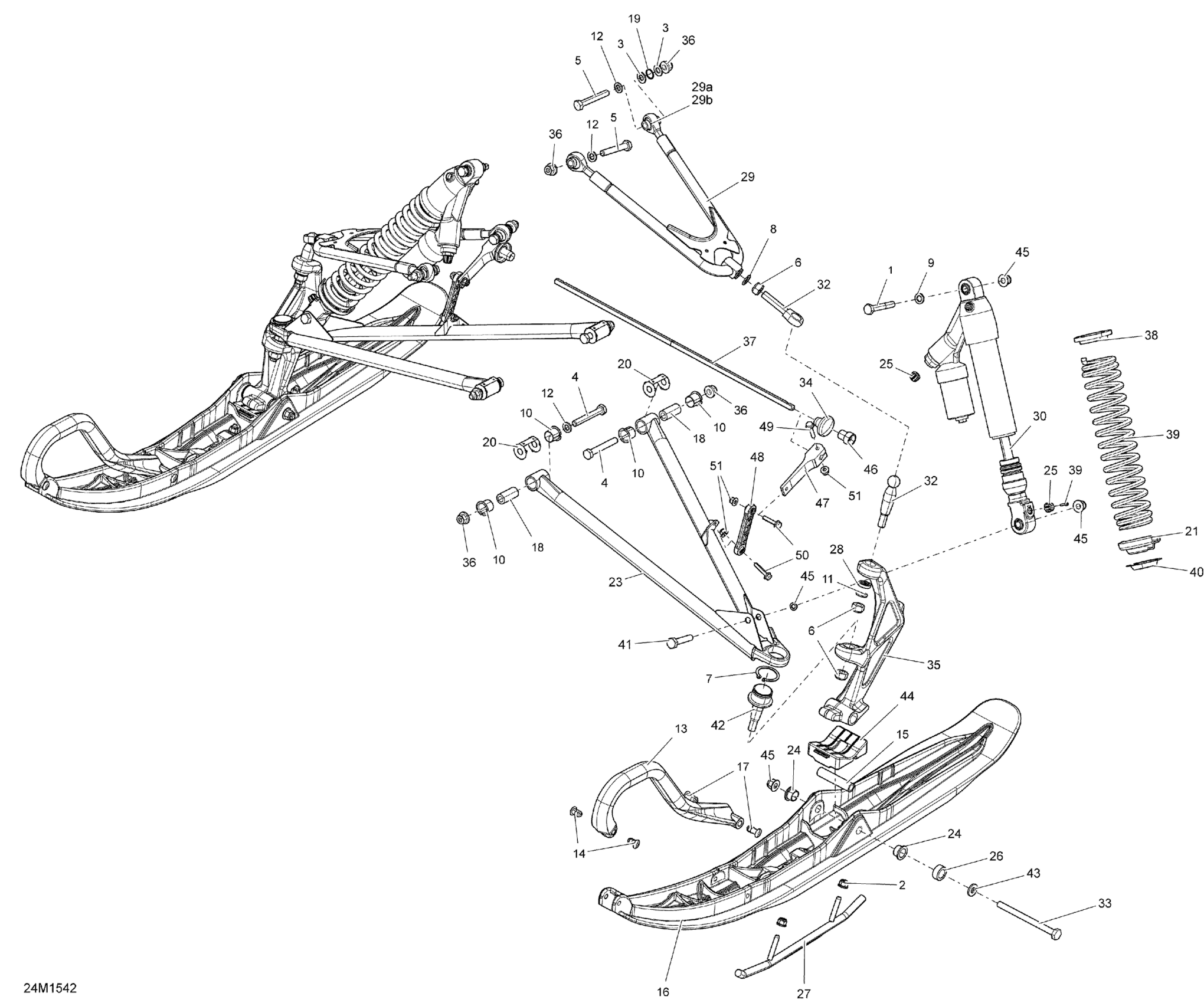

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 Front Suspension And Ski _24M1542 Diagram

#

Description
Price

1

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

2

Hex. Flange Elastic Nut M8

233281414

$1.14

3

Flat Washer 10 mm

234001410

$0.98

4

Screw Hex. M10 X 70

250001024

$1.74

5

SCREW HEX. M10 X 65 - Call your local BRP dealership

250000387

Unavailable

6

Hex. Elastic Hex. Nut M12

250100089

$0.39

6

Hex Elastic Nut M12 X 1.25

232521464

$1.74

7

Circlip

293370035

$2.55

8

Washer

503189276

$3.20

9

Washer

503189564

$0.72

10

Cushion

503191766

$5.71

11

Washer

503192491

$4.38

12

Washer

503192496

$0.75

13

Black Handle

505073138

$34.58

14

Retainer 17mm long

505071812

$4.43

15

Spacer

506133300

$19.97

16

Black Pilot Ski 5.7X

505072205

$149.97

17

Retainer 23mm Long

505072133

$5.03

18

Aluminum Bushing

505072401

$16.12

19

O-Ring

505072448

$2.25

20

Wear Plate

505072634

$4.45

21

Spring Stopper

505072635

$33.82

23

RH LOWER ARM - Call your local BRP dealership

505072654

Unavailable

23

LH LOWER ARM - Call your local BRP dealership

505072655

$242.28

24

Leg Bushing

505072690

$5.92

25

Adjustment Knob

505072753

$2.08

26

Spacer

505072807

$17.66

27

Round Carbide Runner

860201043

$144.58

28

SPACER - Call your local BRP dealership

505073506

Unavailable

29

LH UPPER ARM - Call your local BRP dealership

505073527

Unavailable

29

RH UPPER ARM - Call your local BRP dealership

505073528

Unavailable

29

RH Upper Arm | includes 30, 38, 24

505073534

Unavailable

29a

BALL JOINT - Call your local BRP dealership

505073532

Unavailable

29b

Nut Hexagonal RH.

232026414

$1.48

30

LH FRONT SHOCK - Call your local BRP dealership

505073694

Unavailable

30

RH FRONT SHOCK - Call your local BRP dealership

505073695

Unavailable

32

Upper Ball Joint This part replaces 505073491.

505073561

$52.28

33

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

34

Cap

572091300

$8.97

35

BLACK LH LEG SKI - Call your local BRP dealership

505073362

Unavailable

35

BLACK RH LEG SKI - Call your local BRP dealership

505073363

Unavailable

36

Hex. Flange Elastic Nut M10

250100165

$0.70

37

Stabilisator

505072602

$71.99

38

Deep Black, Spring

505073537

$66.89

39

Allen Screw M3 X 0.5 X 10

250000644

$1.74

40

Cap

706200793

$4.42

41

Hex Screw M10 X 1.5 X 55

207005554

$6.18

42

Ball Joint

505073636

$49.97

43

Washer

503192496

$0.75

44

Ski Stopper

505072594

$17.66

45

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

46

Bushing

505072064

$2.22

47

Stabilisator Lever

505072394

$16.12

48

Sway Bar Double Joint Link

505072204

$19.20

49

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

50

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

51

Hex. Flange Elastic Nut M6

233261466

$1.66
