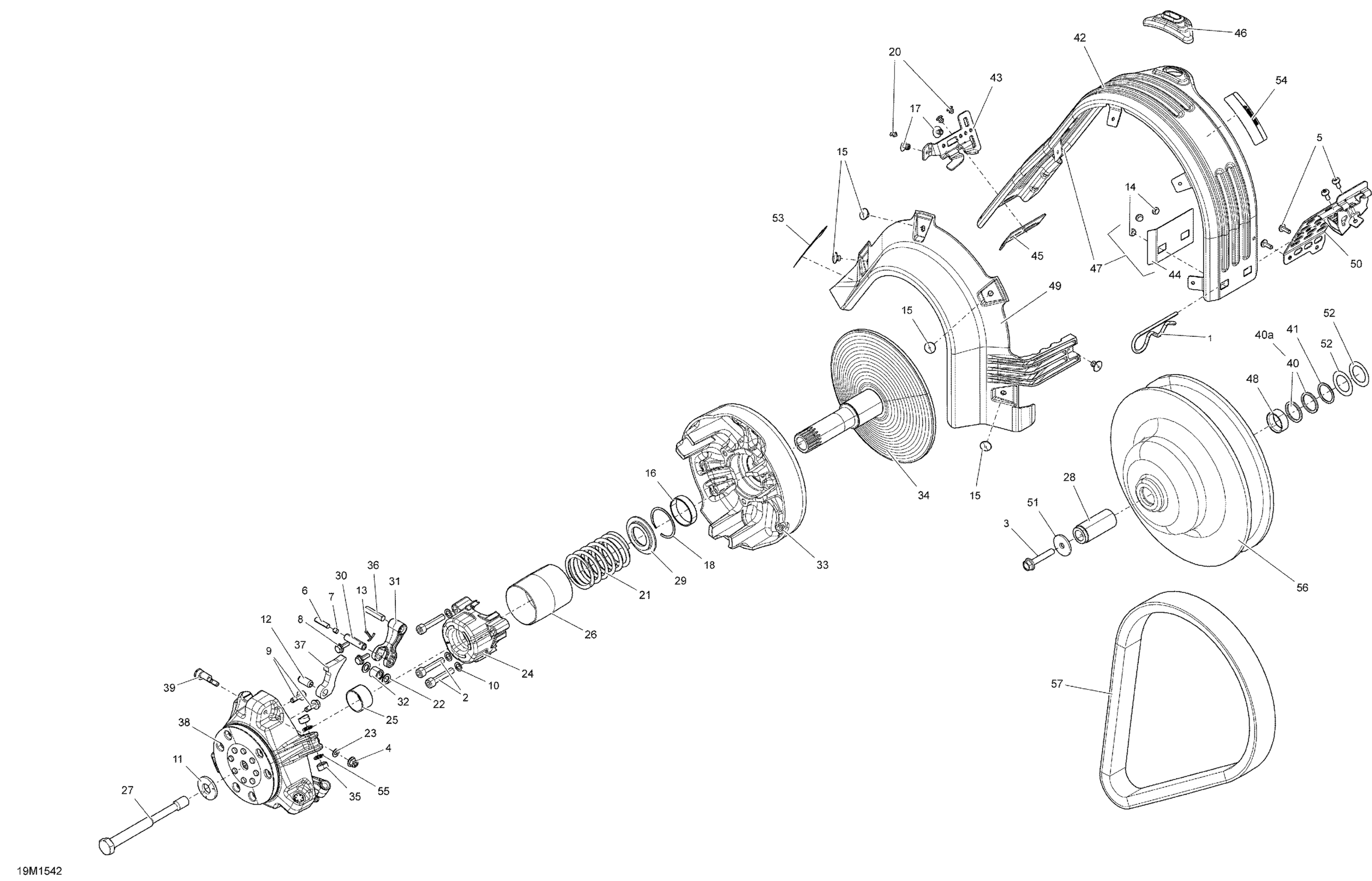

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 05- Pulley System _19M1542 Diagram

#

Description
Price

1

Hair Pin

114045200

$11.11

2

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

3

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$7.20

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5

Torx Screw M5 X 14

250000742

$1.47

6

Screw Socket Set DIN.913 S.Grip

250000408

$4.09

7

Socket Set Screw

250000411

$3.17

8

Serrated Hex. Flange Bolt M6

250000416

$4.23

9

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

10

Lock Washer 8 mm

250200009

$2.11

11

Conical Spring Washer M14

250200144

$4.44

12

Spring Pin M10 X 22

250400050

$2.99

13

Cotter Pin

250400060

$2.00

14

Henrob Rivet

293150091

$0.77

15

Pop Rivet 3/16"

293150103

$0.55

16

Bushing

417222758

$22.49

17

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

18

Circlip

293370037

$3.19

20

Avex Rivet

390909200

$0.30

21

Racing Spring

417223610

$50.99

22

Stopper Washer

417004302

$15.90

23

Washer

417005600

$4.09

24

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

25

Bushing

417009204

$17.49

26

Guard

417009205

$21.99

27

Drive Pulley Bolt

417120000

$65.49

28

Bushing

417127300

$63.99

29

Spring Seat

417222312

$9.59

30

Threaded Pin, M6 | High Altitude

417222595

$23.49

31

Lever | Includes 10f to 10g

417222671

$49.99

32

Roller

417222947

$21.99

33

Sliding Flange Ass'y

417222971

$579.99

34

FIXED FLANGE ASS'Y - Call your local BRP dealership

417223012

Unavailable

35

Slider Shoe This part replaces 420460045.

417223021

$5.90

36

Lever Axle

417223164

$4.49

37

RAMP 443 - Call your local BRP dealership

417223281

Unavailable

38

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223366

$459.99

39

Calibration Screw

417223501

$13.99

40

Spacer

417300252

$5.49

40a

Spacer

504149100

$12.99

41

Spacer

417300265

$2.29

42

Belt Guard

417300357

$91.99

43

FRONT BELT GUARD BRACKET - Call your local BRP dealership

417300360

$14.49

44

PLATE - Call your local BRP dealership

417300372

Unavailable

45

Reinforcement

417300380

$7.29

46

Guide

417300381

$11.99

47

BELT GUARD ASS'Y KIT - Call your local BRP dealership

860200362

Unavailable

48

Spacer

417300399

$17.49

49

CVT AIR DUCT - Call your local BRP dealership

417300501

Unavailable

50

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

51

Washer

503183100

$3.17

52

Shim

504112000

$8.59

53

Decal English

516005503

Unavailable

54

Safety Belt Guard Decal

516005509

Unavailable

55

O-Ring

732401030

$0.98

56

Driven Pulley (Rapid Reaction)

417127483

Unavailable

57

Drive Belt

417300534

$219.99
