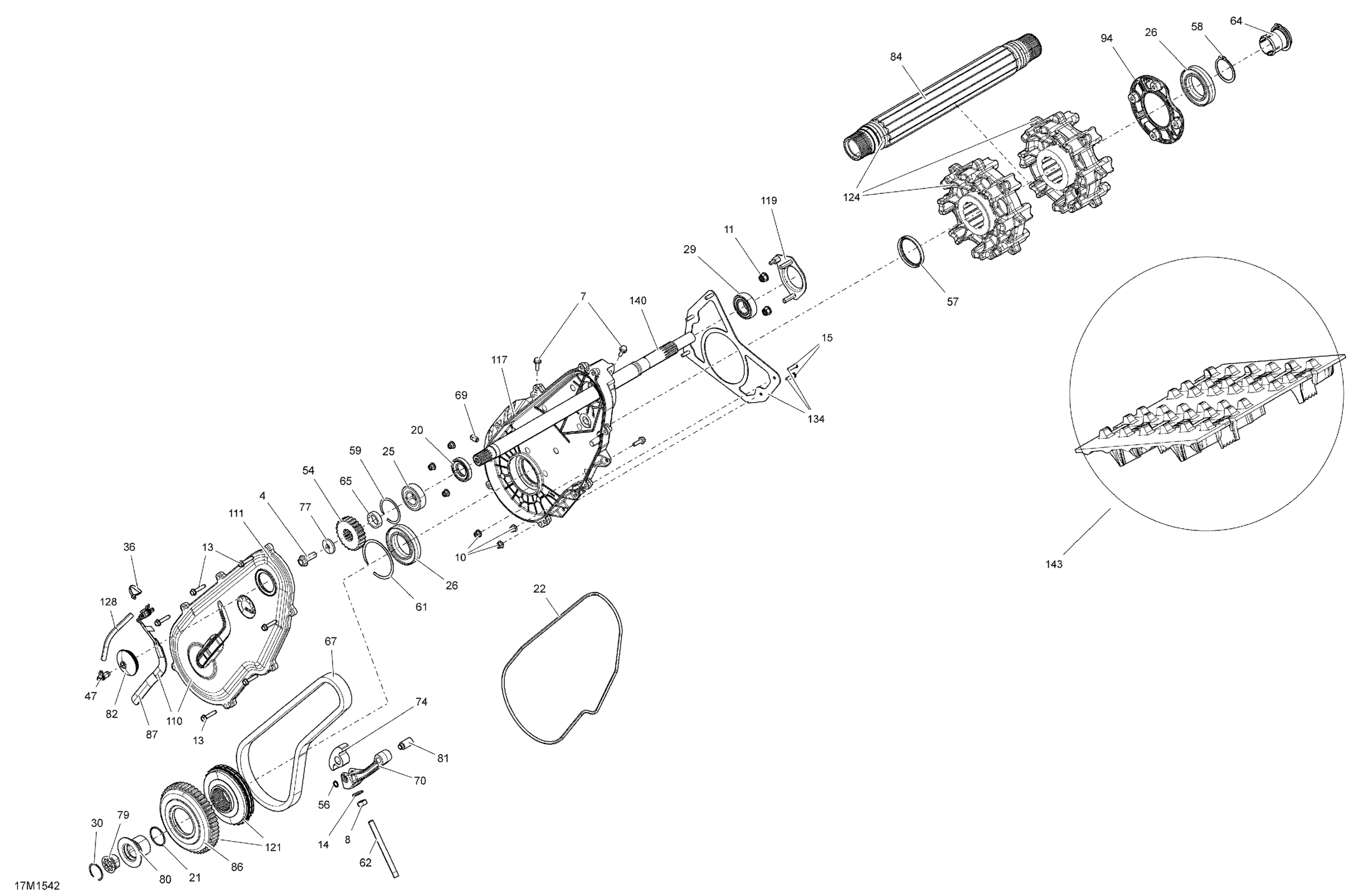

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 Drive System _17M1542 Diagram

#

Description
Price

4

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.46

7

Hex. Flange Screw M6 X 20

207662034

$1.74

8

Hex. Nut M10 X 1.5

232006414

$1.11

10

Flange Elastic Nut M6

233261434

$3.61

11

Hex. Flange Elastic Nut M8

233281414

$1.14

13

Hex. Flange Screw M6 X 1.0 X 30

250000360

$1.74

14

Bonded Washer

250200100

$1.74

15

Clinch Stud M6 X 20

250300027

$1.92

20

Oil Seal

293200168

$13.65

21

O-Ring

293300122

$2.06

22

Tight Seal

293300130

$7.31

25

Ball Bearing

293350115

$11.15

26

Ball Bearing

293350059

$30.74

29

Ball Bearing

293350074

Unavailable

30

Circlip

293370052

$4.71

36

Tie-Rap 180 mm

414115200

$0.09

47

Male Connector

414580700

$3.38

54

Sprocket (Large), 21 Teeth

504139300

$126.89

56

Circlip

504152282

$3.11

57

Oil Seal

293200159

$13.12

58

Circlip

504152572

$6.26

59

Circlip

504152576

$8.71

61

Circlip

504152582

$8.71

62

Adjustment Screw

504152602

$9.62

64

Magnetic Cap

504152619

$23.05

65

Shim

504152628

$8.40

67

Drive Chain, 106 Links

504152630

$173.82

69

Magnetic Plug 1/8 - 27 NPTF

504152636

$8.95

70

Tensioner chain

504153429

$13.77

74

Slider Chain

504152739

$67.66

77

Spring Washer M10

504152784

$6.26

79

Magnetic Adaptor

504152794

$46.12

80

THREADED CAP - Call your local BRP dealership

504152802

$73.05

81

Tensioner Axle

504152841

$14.65

82

Cap

504152860

$19.20

84

Drive Axle Ass'y

504153084

$396.89

86

49 Teeth Sprocket

504152892

Unavailable

87

Rotation Sensor

504152896

$35.35

94

Retaining Ring

504153886

$18.43

110

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$324.58

111

Casting Cover

504153151

$180.74

117

Chaincase

504153181

$324.58

119

Bearing Housing

504153185

$28.43

121

SPROCKET_49 TEETH ASSY - Call your local BRP dealership

504153598

Unavailable

124

Drive Axle Ass'y

504153084

$396.89

128

Polyurethane Hose 10000Mm Long

219704410

$46.12

134

Plate | Not Shown

518325816

$73.82

140

COUNTERSHAFT - Call your local BRP dealership

504153166

$346.12

143

Track Ass'y 15" X 128" X 1.7R" | Includes 3200 to 3200b

504153342

$1,179.99
