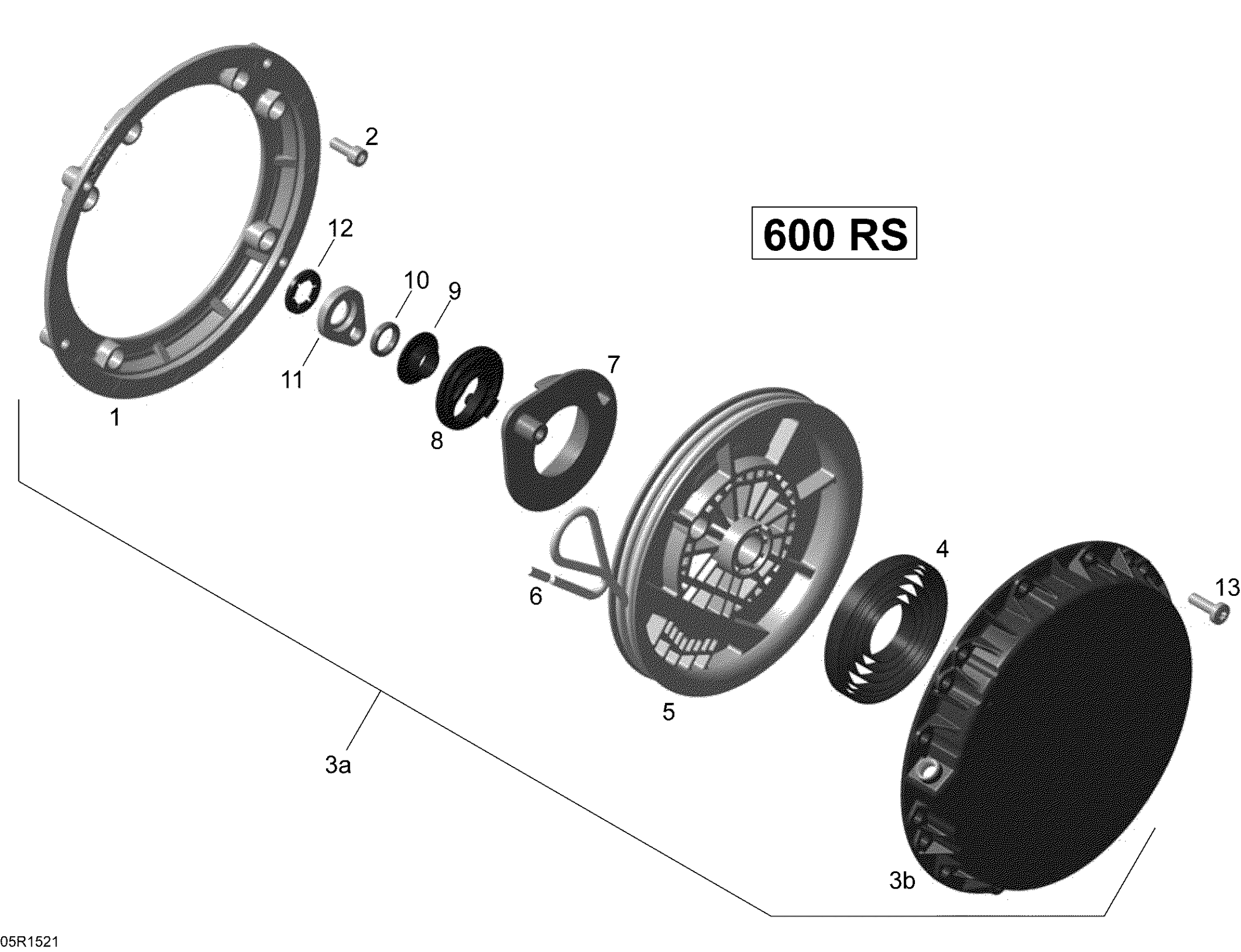

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 Rewind Starter _05R1521 Diagram

#

Description

Price

1

Flange Connector

420810868

$83.55

2

Socket Head Screw M6 x 16

420241237

$2.12

3a

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$158.93

3b

Starter Housing

420910256

$86.54

4

Rewind Spring

420939115

$29.07

5

Rope Sheave

420852288

$38.78

6

Was 412500100 Rope-Starter

219704403

$9.85

7

Pawl

420852633

$31.31

8

Pawl Lock | Includes no. 8-9

420852640

$5.34

9

Stage Sleeve

420847926

$14.10

10

O-Ring

420250407

$1.79

11

Lock Ring

420852520

$8.09

12

Locking Element

420845560

$1.97

13

Torx Flange Screw M6 X 20

420441386

$2.00
