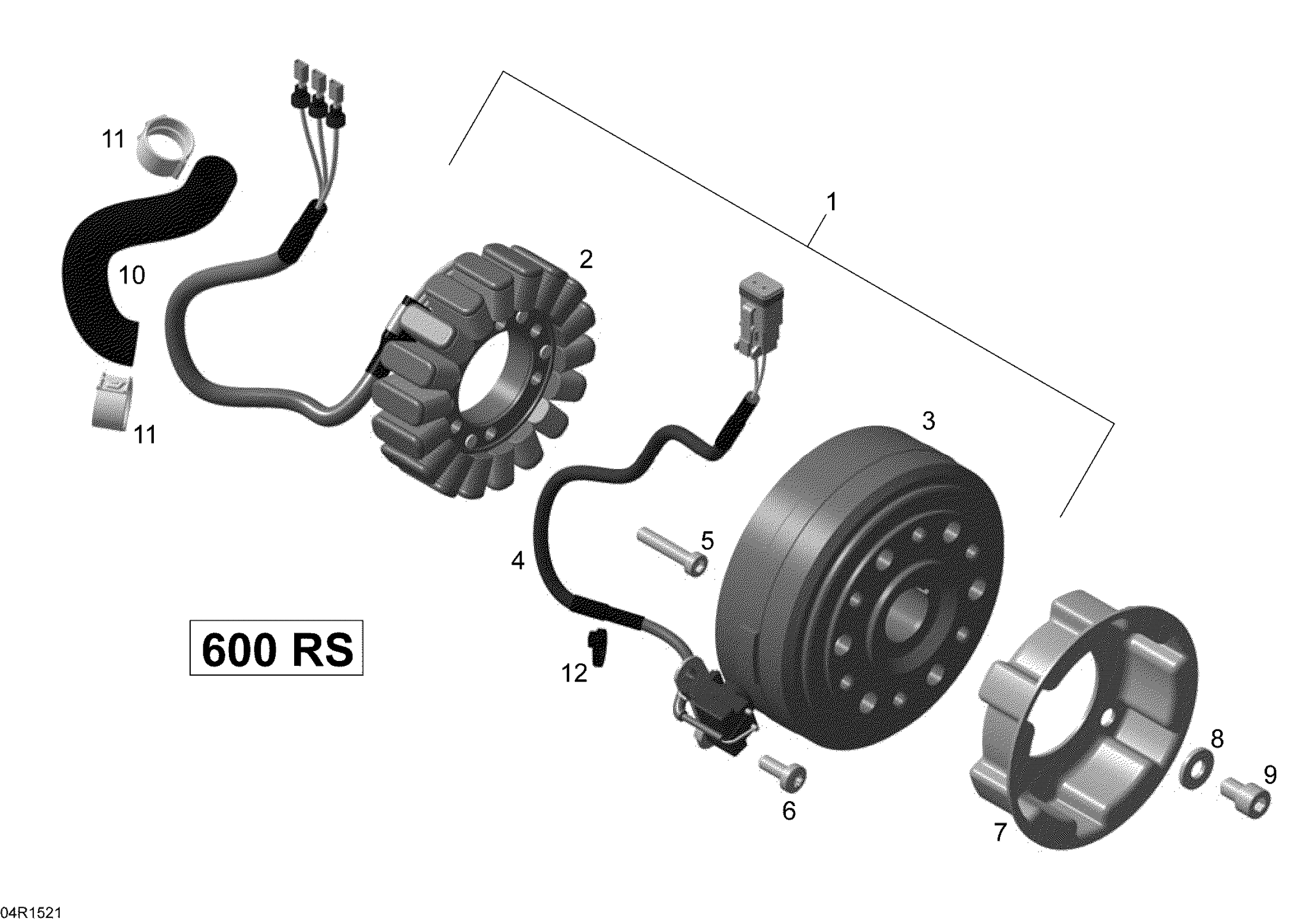

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 Magneto _04R1521 Diagram

#

Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

STATOR PLATE - Call your local BRP dealership

420893060

Unavailable

3

FLYWHEEL - Call your local BRP dealership

420665725

Unavailable

4

Pick-Up

410922951

$106.89

5

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

6

Torx Screw M6 X 16

420640324

$2.06

7

Starting Pulley

420852590

$28.43

8

Flat Washer

420827405

$1.66

9

Socket Head Screw M8 X 12

420841520

$1.68

10

Tube

420460871

$2.06

11

Conduit Clip

420960896

$2.14

12

Tie Rap

420866714

$1.56
