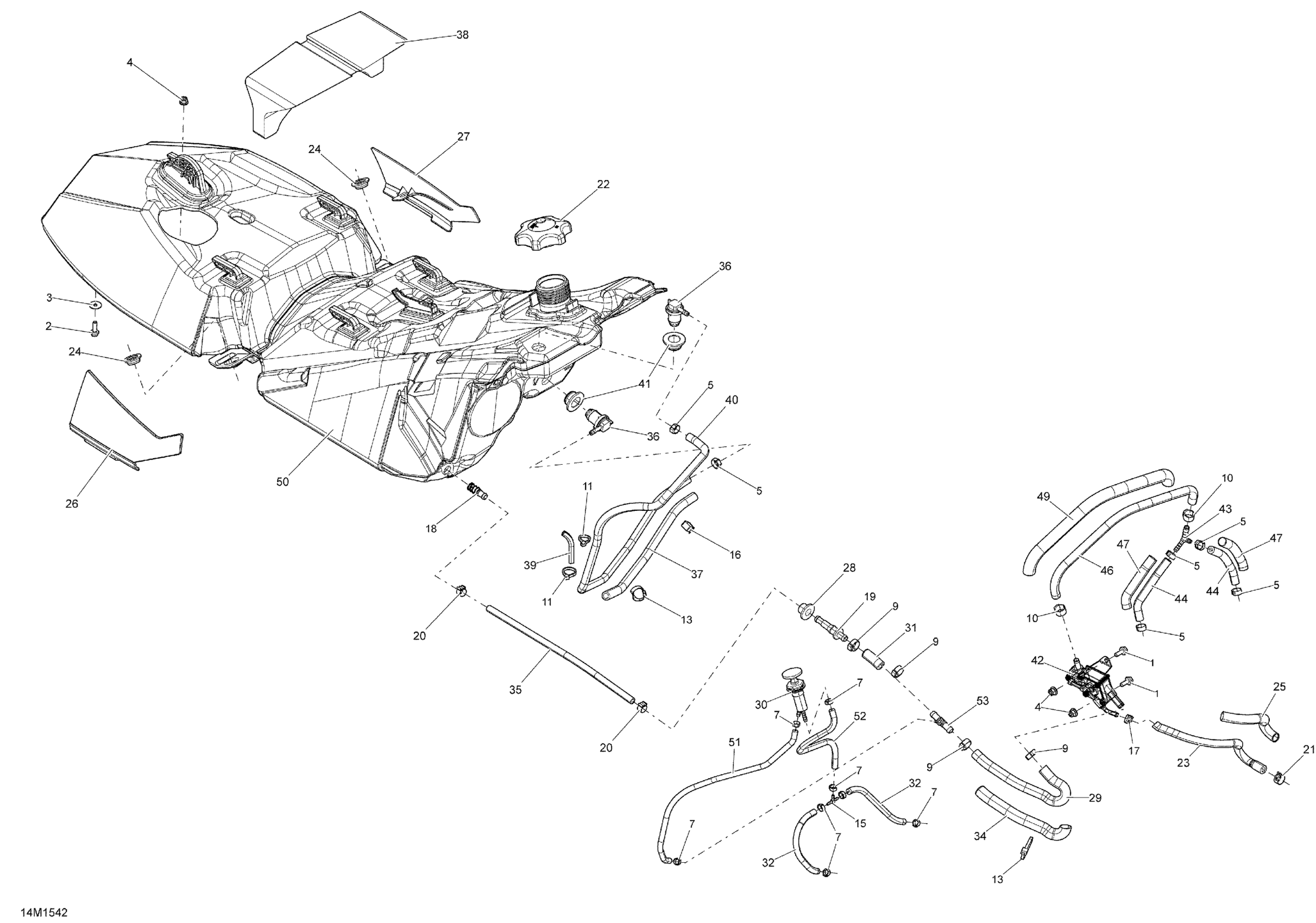

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 Fuel System _14M1542 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.70

2

Hex. Flange Screw M6 X 20

207662044

$1.91

3

Flat Washer

224060201

$1.12

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

5

Oetiker Gear Clamp

293650025

$2.82

7

Oetiker Gear Clamp

293650043

$3.10

9

Crimp Clamp

293650053

$2.78

10

Oetiker Clamp

293650125

$3.09

11

Tie Wrap 142 mm

293750002

$1.01

13

Tie-Rap 180 mm

414115200

$0.10

15

T-Fitting

414222400

$1.52

16

Clip

414227300

$1.40

17

Spring Clamp

414415200

$0.81

18

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

19

Male Connector

414872700

Unavailable

20

Norma Spring Clamp

513033010

$8.42

21

Universal Spring Clamp

513033029

$4.96

22

Fuel Tank Cap

513033752

$54.45

22

Fuel Tank Cap | Europe

513033755

$54.45

23

FORMED HOSE - Call your local BRP dealership

513033111

Unavailable

24

Shoulder Bushing

513033326

$12.24

25

Was 409901800 Tubing (13 mm)

219704400

$10.79

26

RH Cap

513033418

$12.24

27

LH Cap

513033419

$12.24

28

Grommet

513033435

$4.28

29

FORMED HOSE - Call your local BRP dealership

513033439

Unavailable

30

Primer

513033441

$32.06

31

HOSE 9.53MM ID - 40MM - Call your local BRP dealership

513033444

Unavailable

32

HOSE - Call your local BRP dealership

709000665

Unavailable

34

Tubing 16 Mm 1000Mm Long

219704408

$7.15

35

Polyurethane Hose 1000Mm Long

219704391

Unavailable

36

Remote Vent

513033859

$17.88

37

Was 409901800 Tubing (13 mm)

219704400

$10.79

38

FOAM - Call your local BRP dealership

513033528

Unavailable

39

TRIM 30000MM LONG - Call your local BRP dealership

219704405

Unavailable

40

Hose

513033565

$28.33

41

Grommet

513033596

$17.88

42

Fuel Pump

513033669

$79.82

43

Y Connector | CARB

513033672

$1.03

44

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

46

Hose 3000Mm Long

219704612

$77.58

47

Was 409901800 Tubing (13 mm)

219704400

$10.79

49

Tubing 16 Mm 1000Mm Long

219704408

$7.15

50

FUEL TANK - Call your local BRP dealership

513033697

Unavailable

51

HOSE - Call your local BRP dealership

709000665

Unavailable

52

HOSE - Call your local BRP dealership

709000665

Unavailable

53

T-Fitting

513033756

Unavailable
