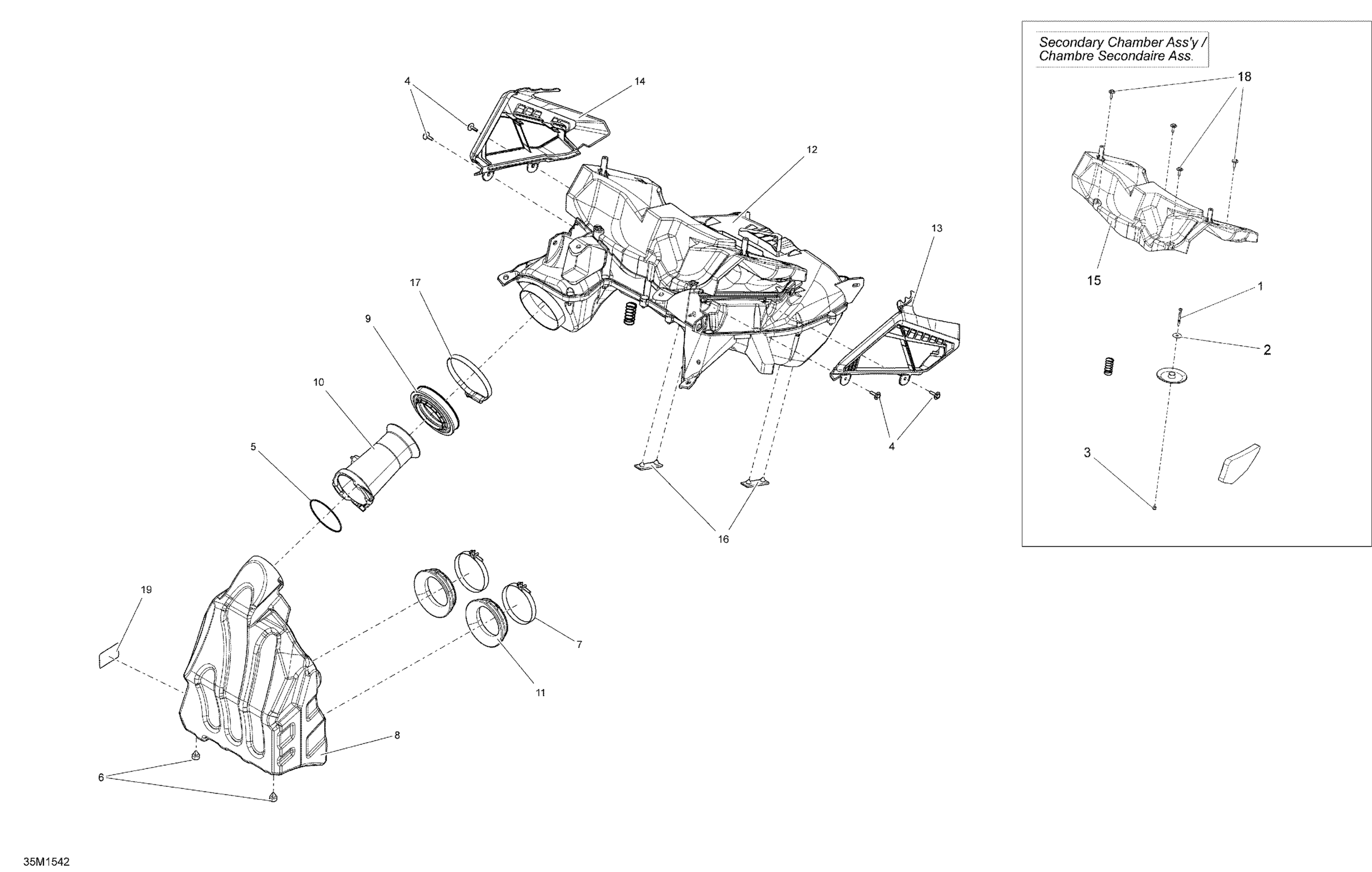

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 Air Intake System _35M1542 Diagram

#

Description
Price

1

Socket Head Screw M4 X 40 | X

205444086

$1.42

2

Flat Washer

224060201

$1.15

3

Elastic Stop Nut M4

232541414

$0.48

4

Screw M4 X 16

250000725

$2.87

5

O-Ring

293300115

$2.63

6

Rubber Bumper

293830005

$5.33

7

Gemi Clamp

508000346

$9.31

8

PRIMARY CHAMBER ASS'Y - Call your local BRP dealership

508000535

Unavailable

9

Boot

508000567

$16.89

10

Flute

508000662

$13.65

11

INTAKE ADAPTER - Call your local BRP dealership

508000721

Unavailable

12

Secondary Chamber Ass'y | Includes 10 to 10e

508000722

$155.35

13

RH Air Filter

508000730

$40.74

14

LH Air Filter

508000731

$40.74

15

Air Duct

508000732

$45.35

16

Stopper

508000744

$2.08

17

Norma Clamp

514052924

$10.58

18

Screw M4 X 16

250000725

$2.87

19

Notice Decal, Air Intake Silencer

516005876

$4.12
