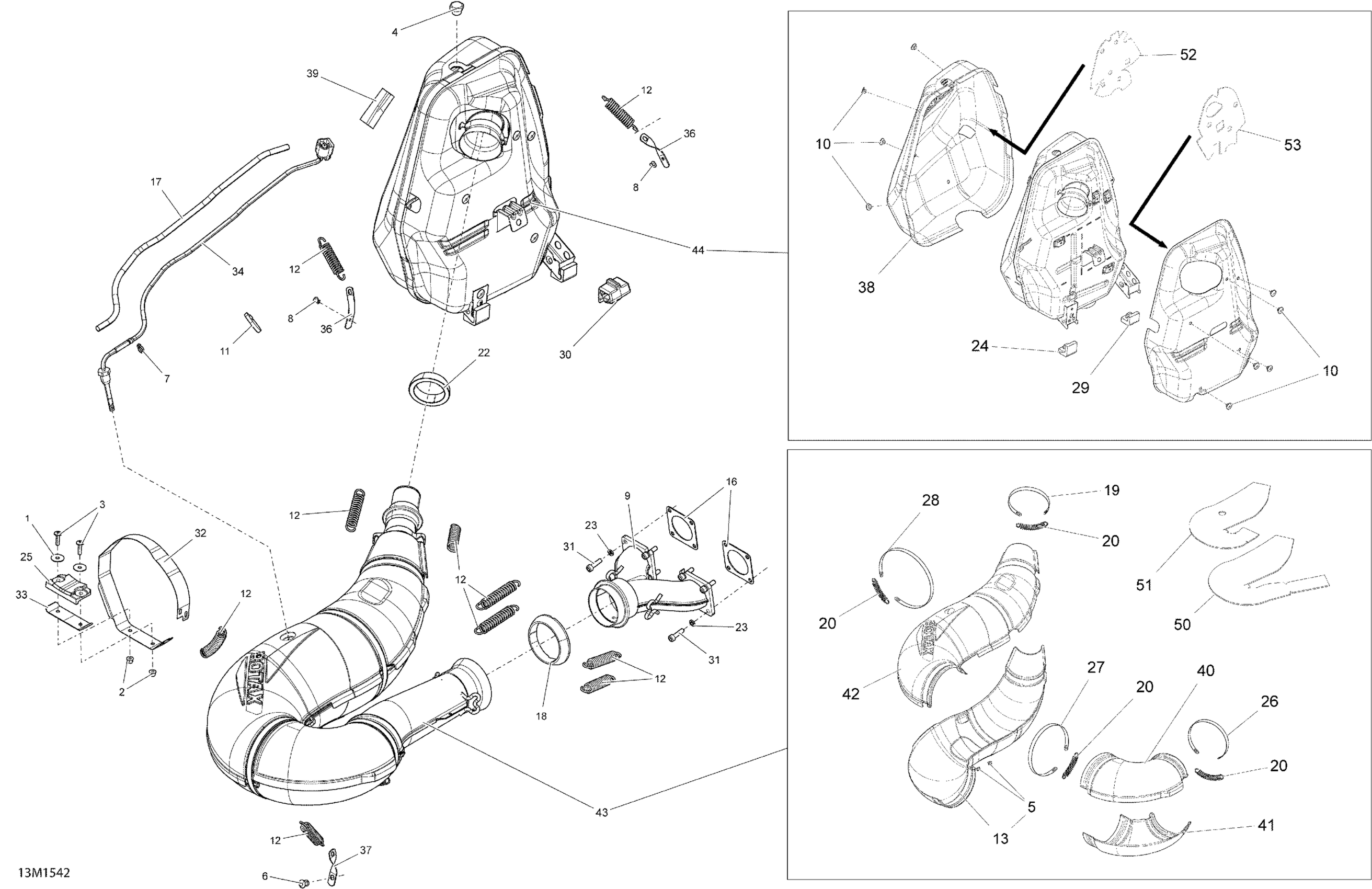

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 Exhaust System _13M1542 Diagram

#

Description
Price

1

Flat Washer

224060201

$1.12

2

Flange Elastic Nut M5

233251434

$1.91

3

Torx Screw M5 X 20

250000724

$1.60

4

Hexagonal Head Pipe Plug M14

250100074

$12.15

5

Henrob Rivet

293150091

$0.73

6

Ornit Rivet 6,5 X 14.5

293150266

$1.88

7

Tie Wrap 94 mm | 4X4

293750001

$0.96

8

Pop Rivet 3/16"

390402200

$0.30

9

EXHAUST MANIFOLD - Call your local BRP dealership

420673422

Unavailable

10

Pop Rivet 3/16”

390910000

$0.55

11

Tie-Rap 180 mm

414115200

$0.10

12

Spring

415107100

$6.01

13

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$51.46

16

Gasket

420850552

$7.69

17

Tubing 6 Mm 3000Mm Long

219704425

$12.75

18

Exhaust Gasket

514053487

$25.34

19

Retaining Strap

514053499

$8.10

20

Spring

514053643

$6.01

22

Exhaust Gasket

514053812

$24.60

23

Washer

514053953

$0.73

24

Lower Stopper

514054274

$18.63

25

Bumper

514054275

$14.21

26

Retaining Strap

514054408

$10.24

27

Retaining Strap

514054409

$10.24

28

Retaining Strap

514054410

$10.24

29

Lower Stopper

514054496

$25.34

30

Upper Stopper

514054606

$17.13

31

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.52

32

RETAINING STRAP - Call your local BRP dealership

514054637

Unavailable

33

Reinforcement Plate

514054638

$23.10

34

Temperature Sensor

514054870

$137.28

35

LH Deflector

514054967

$52.96

36

Spring Bracket, 5mm hole

514054974

$6.09

37

Spring Bracket, 8.0mm hole

514054975

$6.09

38

RH DEFLECTOR - Call your local BRP dealership

514054986

$47.73

39

Heat Shield (Rectangle)

514054987

Unavailable

40

Front Upper Half Enveloppe

514054992

$37.28

41

Front Lower Half Enveloppe

514054993

$37.28

42

REAR UPPER HALF ENVELOPPE - Call your local BRP dealership

514055067

Unavailable

43

PIPE_TUNED ASSY - Call your local BRP dealership

514055068

Unavailable

44

Muffler Ass'y | Includes 400 to 400g

514055083

$698.48

50

Insulating Wool

514054487

$18.63

51

INSULATING WOOL - Call your local BRP dealership

514054553

Unavailable

52

RH Insulating Wool

514054711

$17.88

53

LH Insulating Wool

514054299

$18.63
