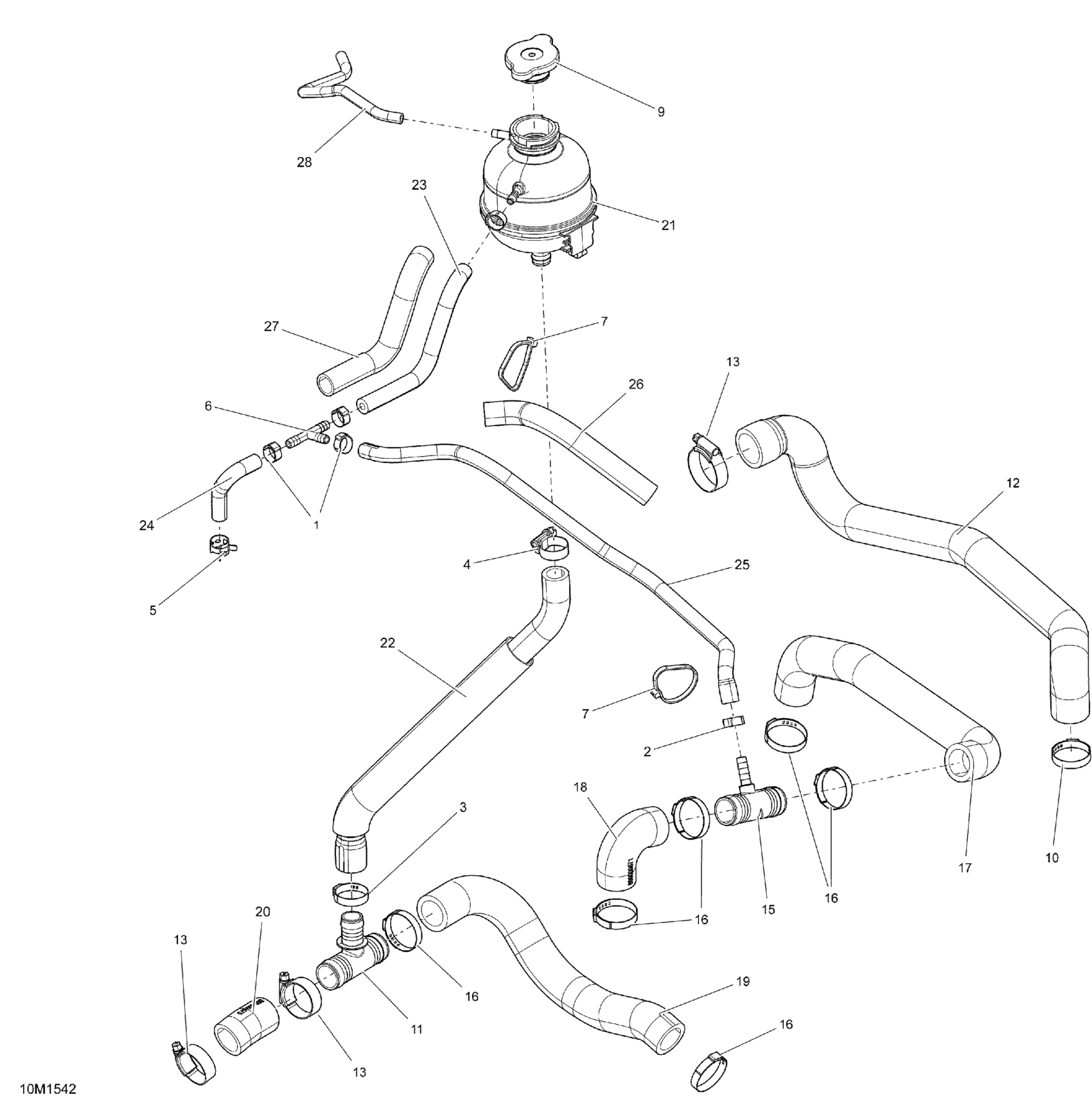

Ski-Doo MXZ X-RS 600HOE XS RS, 2015 Cooling System _10M1542 Diagram

#

Description
Price

1

Oetiker Clamp

293650046

$2.67

2

Crimp Clamp, 15.3-706R

293650047

$3.03

3

Crimp Clamp

293650099

$4.07

4

Norma Gear Clamp

293650124

$6.39

5

Spring Clamp

293650210

$5.06

6

T-Fitting | Europe

293710024

$14.72

7

Tie-Rap 180 mm

414115200

$0.10

9

Radiator Pressure Cap

509000180

$13.42

10

Oetiker Gear Clamp

509000181

$4.15

11

T-Fitting

509000372

$9.03

12

ENGINE OUTLET HOSE - Call your local BRP dealership

509000431

Unavailable

13

Aba Gear Clamp, 26-38 MM

509000443

$5.64

15

T-Fitting

509000510

$11.18

16

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

17

Radiator Hose

509000670

$33.55

18

Radiator Hose This part replaces 509000671.

509001066

$17.88

19

Radiator Hose

509000673

$21.61

20

Engine Inlet Hose This part replaces 509000675.

509001067

$16.39

21

Coolant Tank

509000802

$67.88

22

FILLING HOSE - Call your local BRP dealership

509000901

Unavailable

23

BREATHER HOSE - Call your local BRP dealership

509000902

Unavailable

24

BREATHER HOSE - Call your local BRP dealership

509000904

Unavailable

25

REAR BREATHER HOSE - Call your local BRP dealership

509000905

Unavailable

26

Tubing 16 Mm 1000Mm Long

219704408

$7.15

27

Tubing 16 Mm 1000Mm Long

219704408

$7.15

28

Hose 6 Mm 15000Mm Long

219704360

$120.12
