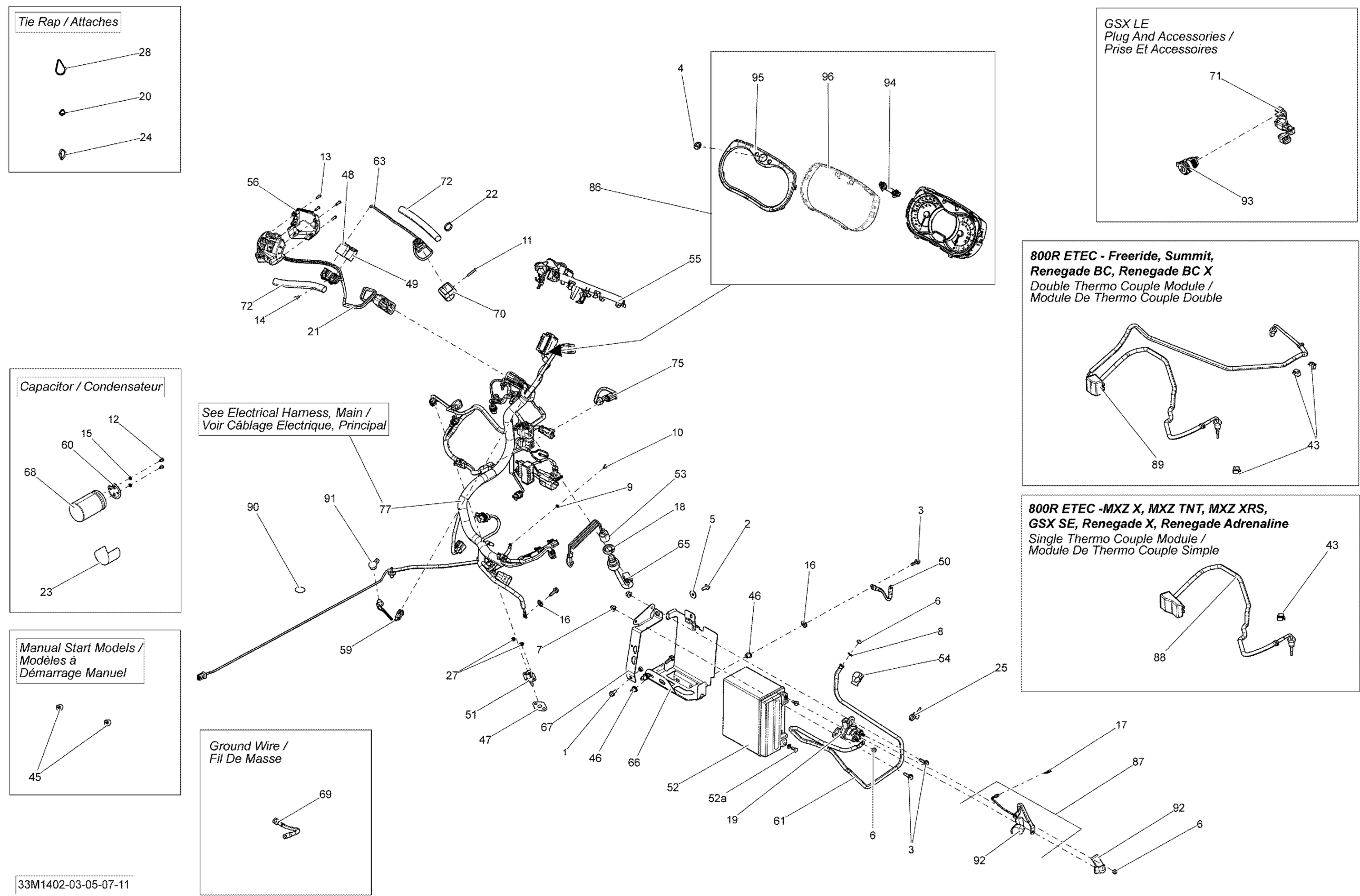

Ski-Doo MXZ X-RS 600HOE XS RS, 2014 10- Electrical System 600HOETEC_33M1403 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12

207661244

$2.11

2

Hex. Flange Screw M6 X 16

207661644

$0.74

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

5

Flat Washer

224061201

$1.37

6

Elastic Stop Nut M6

232561414

$0.55

7

Elastic Flange Nut M6 X 1.0

233261416

$2.11

8

Flat Washer 6 mm

234061410

$1.36

9

Lock Washer 4 mm

234141601

$1.15

10

Torx Screw M4 X 8

250000127

$1.15

11

Torx Screw #8-18

250000263

$1.04

12

Socket Head Screw M10 X 32

250000462

$2.11

13

Torx Screw

250000671

$1.01

14

Pan Screw Forming, 7500C

250000690

$2.11

15

Lock washer | Quest XT 650.

250200026

$1.90

16

Lock Washer Serrated M6

250200041

$1.15

17

Fuse, 25 Amperes

278001443

$3.28

18

Safety Nut (DESS Switch)

278002963

$3.28

19

Starter Relay

278003012

$42.49

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

21

LH Switch Housing

515178197

$264.99

22

Tie Wrap 142 mm

293750002

$1.25

23

Capacitor Decal

516006206

$1.19

24

Tie Wrap 368 mm

293750008

$1.04

25

Tie-Rap 173 mm

293750009

$1.04

27

Push Nut

389804300

$0.53

28

Tie-Rap 180 mm

414115200

$0.11

43

Clip

414227300

$1.67

45

Black, Dart

414644300

$0.98

46

Insert

293450275

$12.99

47

Seal

508000769

$6.39

48

Male Terminal Housing, 6 Circuits

515175662

$8.79

49

Male Terminal Housing, 4 Circuits

515175846

$8.79

50

Ground Wire

515176358

$27.99

51

Air Temperature Sensor

515176366

$19.99

52

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

52a

Not Available As Spare Parts

XXX

Unavailable

53

DESS

515178284

$84.99

54

Clip

515177066

$4.29

55

Connector Plate

515177134

$17.30

56

Housing Plate

515177147

$20.99

59

Not Available As Spare Parts

XXX

Unavailable

60

Cap

515177193

$4.69

61

Battery/Starter Wire

515177208

$30.99

63

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

65

DESS Switch

515177249

$114.99

66

Battery Support

515177264

$31.99

67

Battery Strip

515177266

$19.99

68

Capacitor

515177272

$90.99

69

Ground Wire

515177289

$26.99

70

Emergency Stop Switch Support

515177310

$9.19

71

Not Available As Spare Parts

XXX

Unavailable

72

Protector Tube

415129879

Unavailable

75

Temperature Sensor This part replaces 420664508.

420664509

$149.99

77

WIRING HARNESS MAIN - Call your local BRP dealership | 600HO ETEC

515177541

Unavailable

86

Speedometer | Includes 10 to 10c

515177910

$659.99

86

Speedometer | Includes 10 to 10c

515177910

$659.99

86

Speedometer | Includes 10 to 10c

515177910

$659.99

87

Fuse Battery Wire

515177576

$16.63

88

Not Available As Spare Parts

XXX

Unavailable

89

Not Available As Spare Parts

XXX

Unavailable

90

Adhesive Patch

518325560

$4.69

91

Not Available As Spare Parts

XXX

Unavailable

92

Protector Cap

710000495

$10.99

93

Not Available As Spare Parts

XXX

Unavailable

94

Speedometer Button | XTP

415129355

$15.80

95

Gauge Ring

415129348

$13.99

96

Lens | XTP

415129349

$24.49
