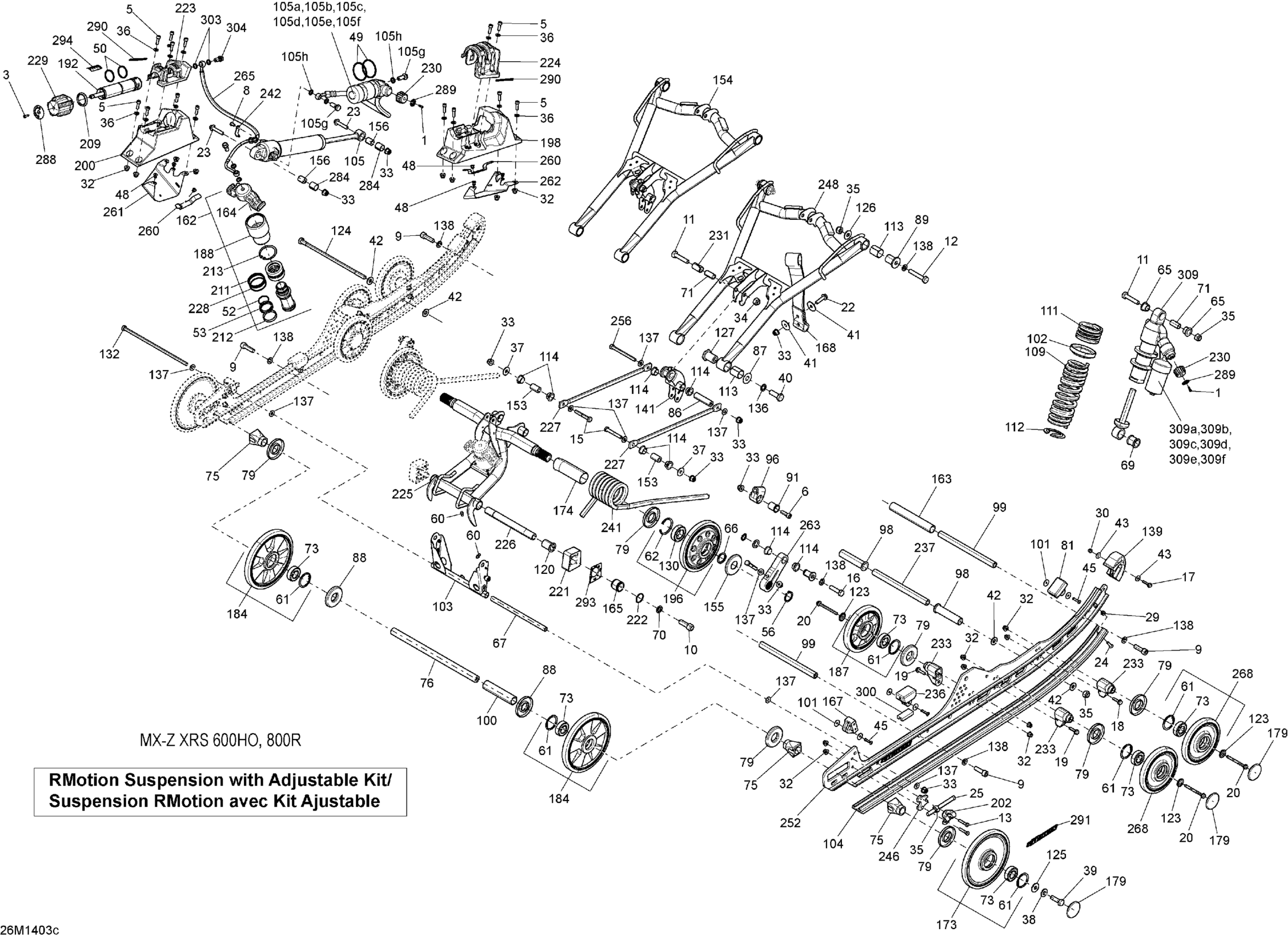

Ski-Doo MXZ X-RS 600HOE XS RS, 2014 Rear Suspension RMotion w ADJ KIT_26M1403c Diagram

#

Description
Price

1

Allen Screw M3 X 0.5 X 10

250000644

$1.74

3

Socket Head Screw M4 X 12

205041254

$2.02

5

Socket Head Screw M6 X 20

205062060

$1.92

6

Socket Screw M8 X 25

205082554

$1.74

8

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

9

Socket Head Screw M10 X 35

205503554

$6.18

10

Socket Head Screw M12 X 35

205523554

$4.28

11

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

12

Hex. Cap Screw M10 X 60

207006056

$6.18

13

Hex. Cap Screw M6 X 30

207063054

$4.41

15

Hex. Screw M8 X 55

207085544

$1.62

16

Cap Screw Hex. M10 X 40

207204056

$6.18

17

Hex. Flange Screw M5 X 25

207652544

$0.42

19

Hex. Flange Screw M6 X 25

207662556

$3.61

20

Hex. Flange Screw M6 X 70

207667056

$3.61

22

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

23

Hex. Flange Screw M8 X 40

207684044

$1.25

24

Phillips Screw M6 X 25

208562531

$1.74

25

Hex Screw M10 x 100

230100054

$5.29

29

Elastic Stop Nut M6

232561414

$1.55

30

Hex. Flange Elastic Nut M5

233251414

$1.66

32

Hex. Flange Elastic Nut M6

233261466

$1.66

33

Elastic Flange Nut M8

233281466

$0.83

34

Elastic Locking Nut M10 X 1.5

233601416

$1.68

35

Elastic Locking Nut M10

233601466

$1.74

36

Stainless Flat Washer M6

234061600

$0.25

37

Flat Washer 8 mm

234082410

$1.11

38

Conical Spring Washer M10

250200141

$2.06

39

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$3.61

40

Hex. Cap Screw M12 X 35

250000537

$2.63

41

Flat Washer 8 mm

250200128

$1.74

42

Washer

250200138

$2.06

43

Washer

250200140

$0.83

44

Spring Pin

250400014

$2.72

45

Pop Rivet 3/16"

293150013

$1.11

48

Stavex Rivet

293150144

$0.77

49

O-Ring

293250085

$0.83

50

O-Ring

293250269

$2.25

51

O-Ring

293300036

$8.89

52

O-Ring

293300039

$9.31

53

O-Ring

293300068

$5.29

56

Retaining Ring

293370080

$2.12

60

Grease Fitting

408200700

$2.80

61

Retaining Ring

415129371

$8.92

62

Retaining Ring

415129780

$13.88

65

Urethane Bushing

503189117

$6.88

66

Axle Spring

503189146

$7.54

67

Pivot Arm Axle

503189156

$20.74

69

Bushing

503189271

$10.46

70

Washer

503189276

$3.20

71

Bushing | Includes 240d to 240d1

503189282

$4.18

73

Ball Bearing | Package-STD

503190396

$7.12

75

Rear Wheel Spacer

503190428

$6.06

76

Rear Axle

503190429

$59.97

79

Labyrinth Seal

503190434

$4.29

81

Rubber Stopper

503190576

$10.23

86

Axle Bar (Long)

503190643

$15.35

87

Washer

503190656

$2.91

88

Labyrinth Seal

503190682

$5.85

89

Axle

503190698

$17.66

91

Spring Support Kit

861805547

$8.14

96

Spring Support Kit

861805547

$8.14

98

Center Bushing

503191259

$8.97

99

Axle Strap

503191260

$29.20

100

Rear Spacer

503191263

$15.35

101

Washer

503191273

$1.06

102

Spring Spacer

503192743

$12.65

103

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$118.43

104

Black Slider Shoe 120"

503191301

$27.66

105

REAR SHOCK - Call your local BRP dealership

503193173

Unavailable

105a

O-Ring

415093804

$4.38

105b

O-Ring

505070400

$4.38

105c

Screw | Not Shown

505070399

$4.00

105d

Air Valve

505070398

$17.66

105e

Piston Ring | Not Shown

415093806

$14.97

105f

O-Ring

415093807

$34.58

105g

Bolt

415093810

$14.97

105h

O-Ring

415038700

$39.97

105

Not Available As Spare Part - Friction Washer

Unavailable

105a

O-Ring

415093804

$4.38

105b

O-Ring

505070400

$4.38

105c

Screw | Not Shown

505070399

$4.00

105d

Air Valve

505070398

$17.66

105e

Piston Ring | Not Shown

415093806

$14.97

105f

O-Ring

415093807

$34.58

105g

Bolt

415093810

$14.97

105h

O-Ring

415038700

$39.97

106

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$36.12

109

Black, Spring (162mm) Long

503193065

$71.51

111

Black, Spring (52mm) Short

503193479

$88.43

112

Spring Stopper

503194270

$16.89

113

Bushing

503191554

$5.88

114

Swivel Bushing

503191555

$5.71

115

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$49.97

120

Cushion

503191640

$5.71

123

Wheel Cup M6

503191820

$4.66

124

BOLT M10 X 251MM - Call your local BRP dealership

503191896

$14.74

125

Washer

503191910

$2.25

126

Washer

503191926

$1.57

127

Lower Axle

503191966

Unavailable

130

Ball Bearing

503193548

$16.89

132

Bolt M8 X 248mm

503192440

$29.97

136

Washer

503192491

$4.38

137

Washer

503192494

$3.11

138

Washer

503192496

$0.75

139

Slide Protector

503192530

$16.89

141

Rocker

503192531

$78.43

153

Axle Bar

503192555

$11.40

154

Front Arm Ass'y | Included 2000 to 2000g

503194529

$447.66

155

Labyrinth Ring

503192592

$4.66

156

Axle Shock Absorber

503196509

$11.98

162

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$721.51

163

Spacer

503196943

$7.58

164

Spring Bracket

503192633

$155.35

165

Guide Block

503192749

$5.85

167

Rubber Stopper

503192750

$12.65

168

Stopper Strap

503192759

$25.35

174

Bushing

503192767

$15.26

179

Black, Wheel Cap

503192771

$2.28

184

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$49.97

187

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$36.12

188

Cylinder

503192795

$66.89

192

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$721.51

196

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$46.12

198

RH Support

503192810

$34.58

200

LH Support

503192811

$35.35

202

Tensioner

503192583

$5.85

209

WIPER SEAL - Call your local BRP dealership

503192825

Unavailable

211

O-Ring

503192832

$2.25

212

Wear Ring

503192833

$15.35

213

Retaining Ring

503192834

$4.66

221

LH Cam Block

503192918

$12.65

221

RH Cam Block

503192919

$12.65

222

O-Ring

503192921

$2.25

223

LH Half Housing

503192956

$10.23

224

RH Half-Housing

503192957

$11.45

225

Rear Arm Ass'y | With Quick Adjust System

503193618

$286.12

226

Lower Shaft

503192981

$17.66

227

ROD_LINK - Call your local BRP dealership

503193010

Unavailable

228

O-Ring

503193014

$2.25

229

Adjustment Knob Ass'y | Included 7740 to 7740b

503193025

Unavailable

230

Shock Adjuster Knob

503193033

$7.58

231

Bushing

503193037

$15.35

232

Knob Adjuster Ass'y | Included 7010 to 7010b

503193056

$25.35

233

Casted Support

503193894

$12.75

236

Rubber Stopper Ass'y

503195523

$5.25

237

Pivot Axle

503193435

$38.43

241

Black, LH Spring Square

503192271

$78.43

241

Black, RH Spring Square

503192270

$78.43

241

Black, LH Spring Square

503193158

$77.66

241

Black, RH Spring Square

503193159

$77.66

242

Plate

503193166

$15.35

246

Spacer

503193250

$13.95

248

Front Arm Ass'y | Included 2000 to 2000g

503194529

$447.66

252

RAIL_SUSPENSION 120 B-160 - Call your local BRP dealership

503193526

Unavailable

256

Screw M8 X 90

503193372

$4.28

260

Retaining Plate

503195712

$17.66

261

LH HOSE PROTECTOR - Call your local BRP dealership

503193437

Unavailable

262

RH HOSE PROTECTOR - Call your local BRP dealership

503193438

Unavailable

263

Link Ass'y | Includes 3100 to 3100f

503195985

$77.66

265

Connector Hose

503193476

$46.12

273

Master Cylinder Ass'y | Included 7000a to 7000a.j

503193490

$288.43

284

Leg Cushion

505072663

$7.40

288

STICKER KNOB ADJUSTER - Call your local BRP dealership

516004751

Unavailable

289

Shock Knob Adjustment Decal

516004752

$12.95

290

Decal

516006369

$12.65

291

Runner Decal

516004755

$9.11

293

LH Block Sticker Decal

516004900

$16.12

293

RH Block Sticker Decal

516004901

$16.12

294

Adjustment Decal

516004917

$42.28

300

Reinforcement Stopper

572084800

$5.25

303

Copper Washer

705601628

$4.34

304

Banjo Bolt

705600628

$11.05

309

CENTER SHOCK - Call your local BRP dealership

503192783

Unavailable

309a

O-Ring

415093804

$4.38

309b

O-Ring

505070400

$4.38

309c

Screw | Not Shown

505070399

$4.00

309d

Air Valve

505070398

$17.66

309e

Piston Ring | Not Shown

415093806

$14.97

309f

O-Ring

415093807

$34.58
