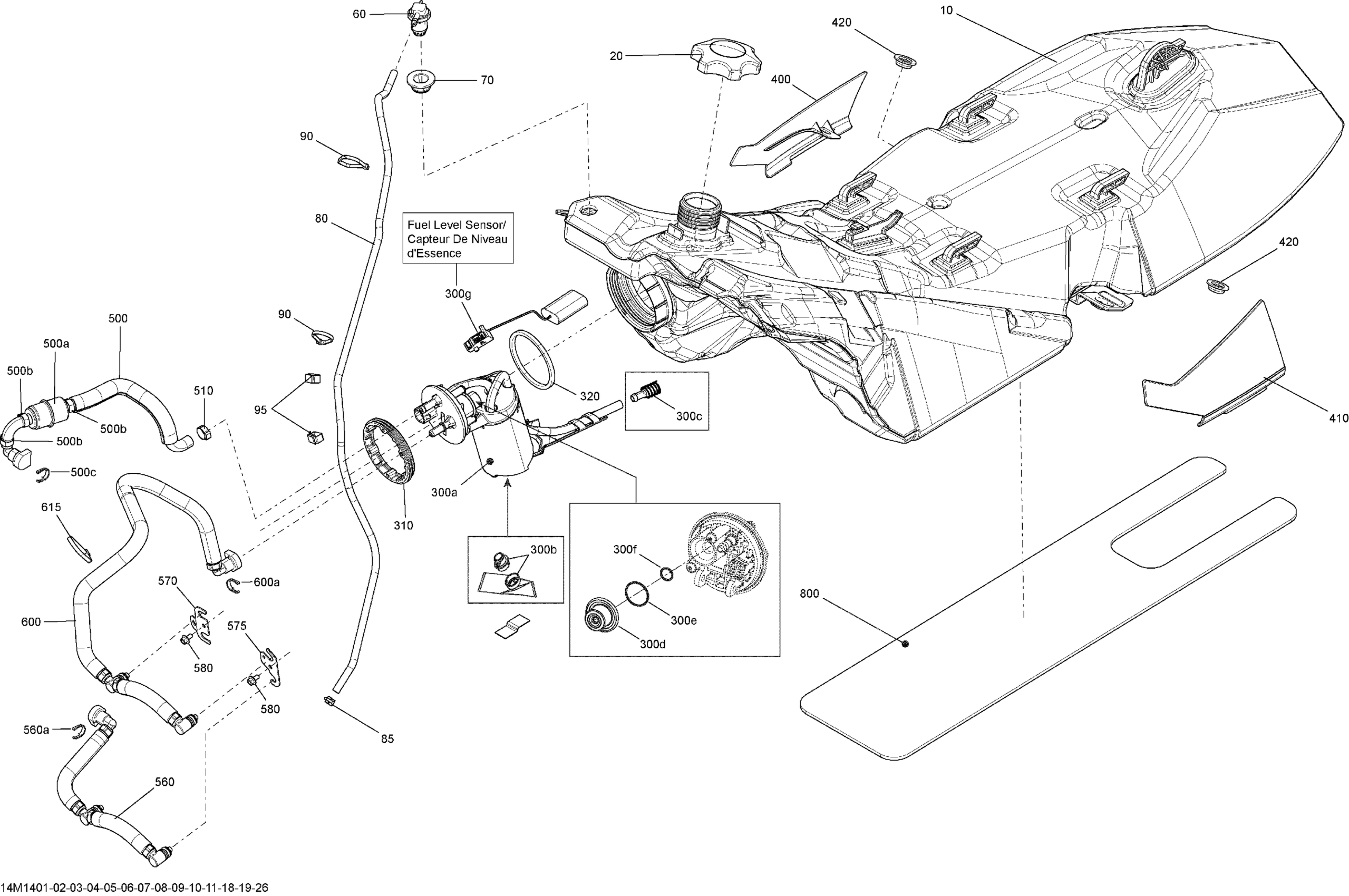

Ski-Doo MXZ X-RS 600HOE XS RS, 2014 Fuel System _14M1403 Diagram

#

Description
Price

10

Fuel Tank

513033667

$313.82

20

Fuel Tank Cap 91 Octane

513033722

$23.05

20

Fuel Tank Cap 95 Octane | Europe

513033723

$25.35

60

Check Valve

513033842

$33.82

70

Grommet

513033596

$18.43

80

Polyurethane Hose 10000Mm Long

219704410

$46.12

85

Spring Clamp

414554800

$0.83

90

Not Available As Spare Parts

XXX

Unavailable

95

Not Available As Spare Parts

XXX

Unavailable

310

Ring

513033180

$17.66

300a

PUMP FUEL | Includes 300 to 300f This part replaces 513033837.

513034258

Unavailable

300b

Fuel Filter

415129451

$23.05

300c

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

300d

Regulator

415129821

$76.12

300e

O-Ring

415129822

$18.43

300f

O-Ring

415129823

$18.43

300g

Fuel Level Sensor

415130108

$140.74

320

Gasket

513033334

$23.05

400

RH Cap

513033418

$12.62

410

LH Cap

513033419

$12.62

420

Shoulder Bushing

513033326

$12.62

500

Hose Ass'y | Includes 500 to 500b This part replaces 513033846.

513034137

$79.97

500a

Fuel Filter

513034047

$20.89

500b

Oetiker Clamp

293650125

$2.69

500c

Locking Clip

513033135

$5.11

510

Crimp Clamp

293650053

$2.42

560

Hose Ass'y | Includes 22 to 23

513033594

$81.51

560a

Locking Clip

513033135

$5.11

570

Bracket

513033542

$12.62

575

Bracket

513033593

$16.12

580

Hex. Flange Screw M5 X 10

207551044

$3.38

600

Fuel Hose Ass'y

513033648

$121.51

600a

Locking Clip

513033135

$5.11

615

Not Available As Spare Parts

XXX

Unavailable

800

Insulating Foam

513033588

$12.62
