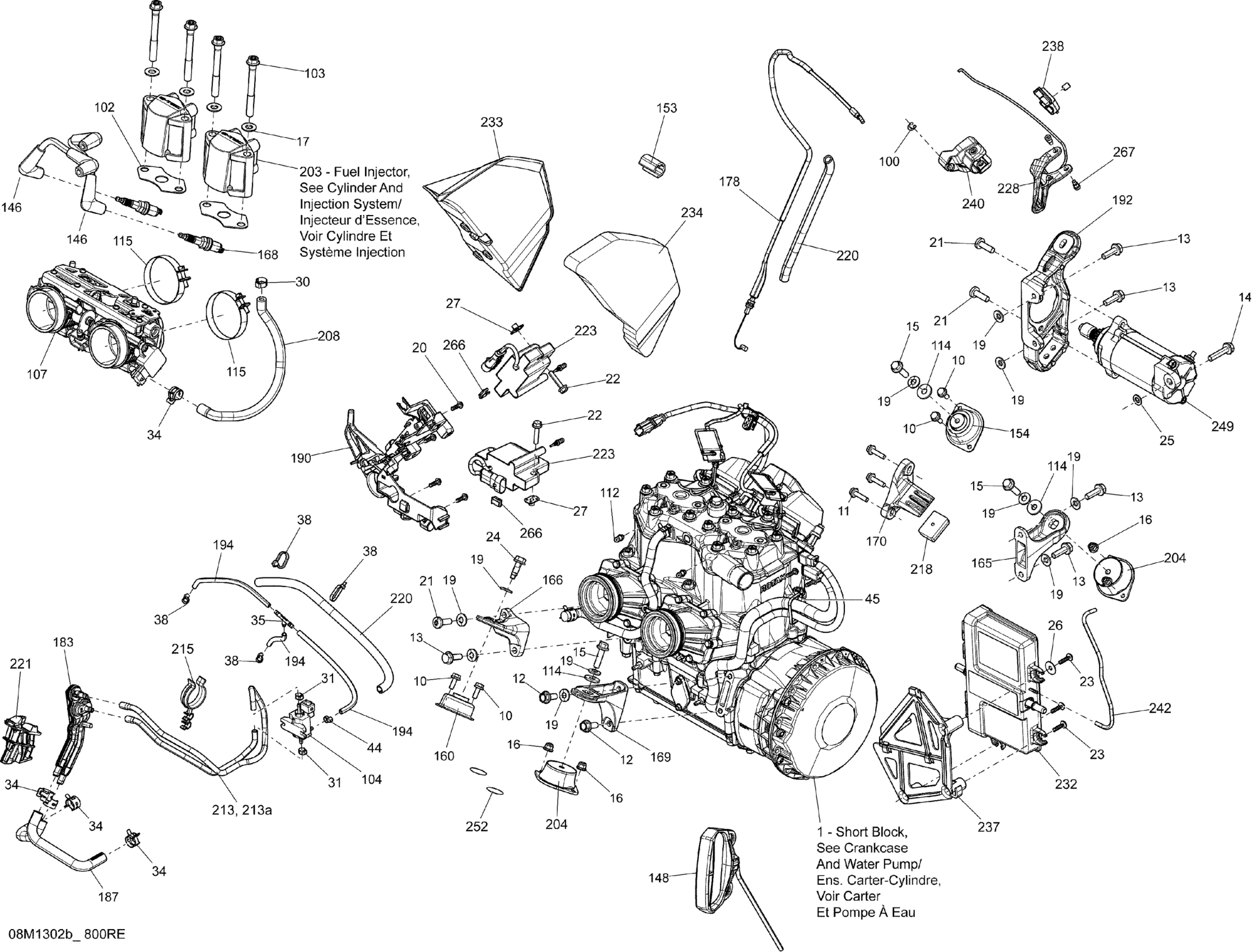

Ski-Doo MXZ X 800RE XS, 2013 01- Engine And Engine Support 800 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

10

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

11

Hex. Flange Screw M6 X 25

207562544

$1.69

12

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

13

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

14

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

15

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Flat Washer 10 mm

234001410

$1.26

19

Conical Spring Washer M8

250200146

$1.01

20

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

21

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

21

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

22

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

23

Truss Head Torx Screw K50 X 20

250000297

$2.11

24

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

25

Flat Washer With Teflon 8 mm

250200008

$3.80

26

Flat Washer

250200040

$1.90

27

Nut Welded, M6

293100003

$9.12

30

Oetiker Clamp

293650046

$2.89

31

Oetiker Gear Clamp

293650043

$3.39

34

Norma Spring Clamp

293650214

$15.89

34

Norma Spring Clamp

293650214

$15.89

35

T-Fitting

293710068

$8.29

38

Tie Wrap 94 mm | 4X4

293750001

$1.03

45

Tie Wrap 368 mm

293750008

$1.04

100

Circlip

414274500

$0.90

102

Gasket

420430930

$4.99

103

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

104

Solenoid Valve

270600005

$116.49

107

Throttle Body

420889202

$1.00

112

Hose Nipple

420924724

$14.83

114

Yellow, Washer

503183200

$3.19

115

GEMI CLAMP - Call your local BRP dealership | 800RE

508000007

Unavailable

146

Ignition Cable, 177mm long

512061126

$28.49

148

Starter Grip

512060136

$14.83

153

Protector

512060313

$10.33

154

Rubber Mount

512060387

$46.99

160

Rubber Mount

512060448

$51.99

165

Front Support, MAG

512060469

$31.99

166

Rear Support, PTO

512060478

$31.99

168

Spark Plug NGK PFR7AB | 800-TEC This part replaces 512060553.

415129484

$30.49

169

Rear Support, MAG

512060559

$31.99

170

Stopper Support

512060576

$29.49

178

Throttle Cable

512060668

$82.49

183

Manifold

512060692

$45.99

187

RH Formed Hose

512060694

$8.29

187

LH Formed Hose

512060695

$8.29

190

Ignition Coils Support

512060888

$11.60

192

Front Support, PTO

512060714

$90.99

194

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

203

Fuel Injector | Includes 13 to 16

512061054

$339.99

204

Rubber Mount

512060729

$65.99

208

Bleeder's Collector Outlet Hose

512060944

$28.99

213

Polyurethane Hose 10000Mm Long

219704410

$56.99

213a

SPRING - Call your local BRP dealership

512060814

Unavailable

215

HOSE SUPPORT - Call your local BRP dealership

512060762

Unavailable

218

Stopper

512060627

$10.33

220

Was 409901700 Tubing (9 mm)

219704399

$84.99

221

Manifold Support

512060822

$11.60

223

Ignition Coil

512060953

$132.49

228

Handle Ass'y

512061250

$124.99

232

Calibrated Module

512060756

$749.99

233

Noise Shield

512060847

$16.33

234

Inner Acoustic Foam

512060958

$19.49

237

Calibrated Module Support

512060858

$14.22

238

Upper Housing

512060859

$8.89

240

Lower Housing

512060860

$17.53

242

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

249

Starter

515178473

$319.49

252

Adhesive Patch

518325560

$4.69

266

Clip

710000992

$4.29

267

Flange Screw

732601143

$4.12
