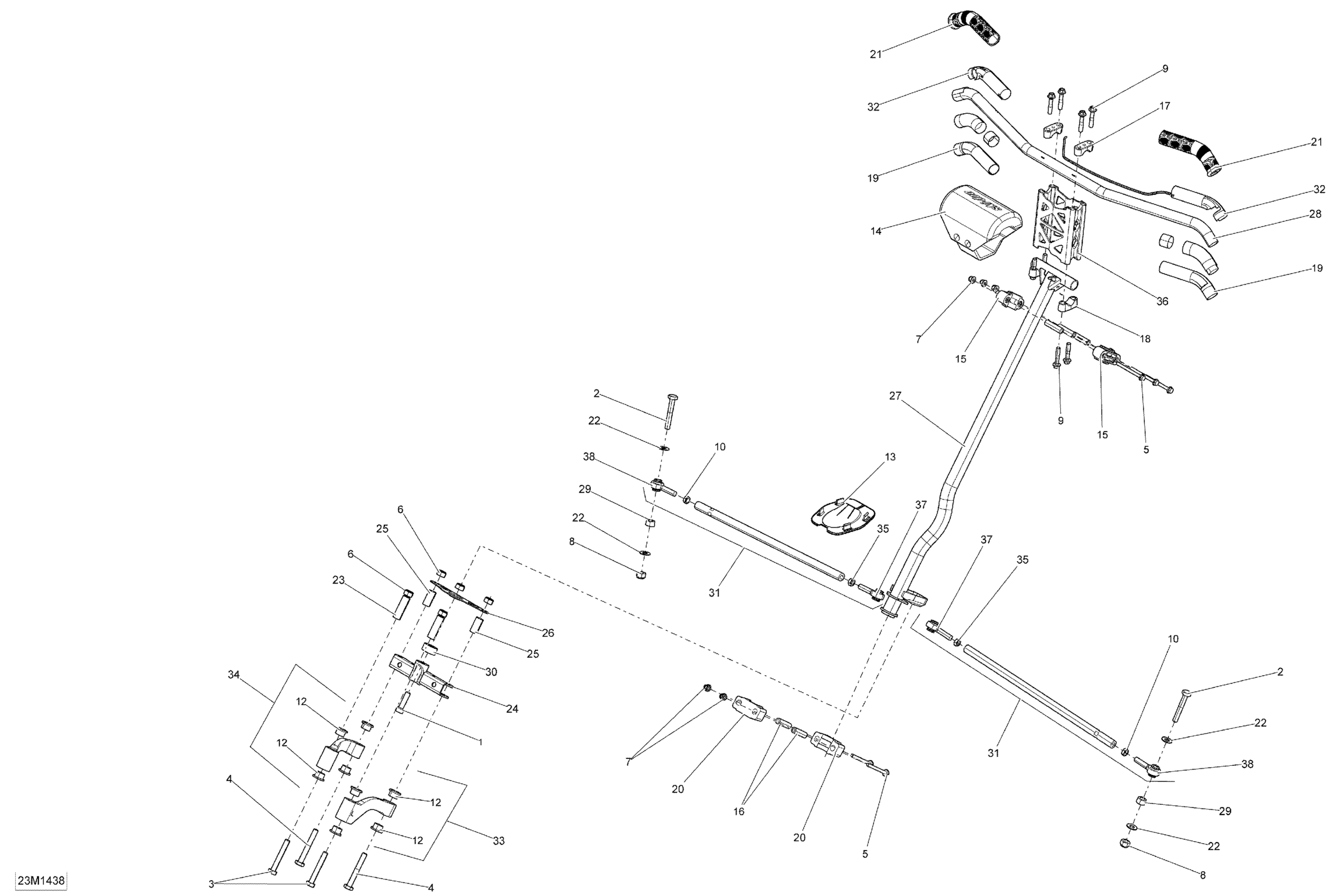

Ski-Doo MXZ X 600RS XS RS, 2014 Steering _23M1438 Diagram

#

Description
Price

1

Socket Screw M10 X 35

205003544

$1.69

2

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

3

Hex. Screw M10 X 70

207007044

$2.32

4

Hex. Screw M10 x 75

207007544

$3.17

5

Hex. Flange Screw M6 X 70

207667056

$4.44

6

Elastic Stop Nut M10

232500416

$1.90

7

Elastic Flange Nut M6 X 1.0

233261416

$2.11

8

Elastic Locking Nut M10

233601466

$2.11

9

Hex. Flange Screw M8 X 40

250000352

$3.38

10

LH Threaded Hex. Jam Nut M10

250100016

$0.74

12

Leg Bushing

505072690

$12.49

13

Plate

506152163

$12.99

14

STEERING PAD - Call your local BRP dealership

506152522

$53.99

15

Half-Housing

506152293

$12.99

16

Housing Bushing

506152297

$12.99

17

Steering Support | Includes 40 to 40a

506152751

$13.99

18

Steering Support | Includes 40 to 40a

506152751

$13.99

19

Thermal Insulation

506153176

$6.09

20

LOWER HALF-HOUSING - Call your local BRP dealership

506152549

Unavailable

21

Grip 148mm

506152560

$16.88

22

Washer

506152582

$4.55

23

SWIVEL PIVOT - Call your local BRP dealership

506152691

Unavailable

24

WELDED SWIVEL BAR - Call your local BRP dealership

506152693

Unavailable

25

SWIVEL PIVOT - Call your local BRP dealership

506152696

Unavailable

26

PLATE - Call your local BRP dealership

506152697

Unavailable

27

TUBE-MAIN PAINT - Call your local BRP dealership

506152965

Unavailable

28

FULL MOON HAND BAR - Call your local BRP dealership

506152712

Unavailable

29

Washer

506152713

$15.29

30

BEARING - Call your local BRP dealership

506152714

Unavailable

31

ROD ASS'Y - Call your local BRP dealership

506152715

Unavailable

32

Heating Element 20 WATT

506152674

$38.99

33

LH SWIVEL ARM ASS'Y - Call your local BRP dealership

506152719

Unavailable

34

RH SWIVEL ARM ASS'Y - Call your local BRP dealership

506152720

Unavailable

35

RH Threaded Hex. Jam Nut M10

732610010

$0.74

36

Black Handlebar Extension (130mm) | Package Extreme

506152616

$147.99

37

LH Thread Ball Joint

506152081

$41.49

38

RH Threaded Ball Joint

506152019

$41.49
