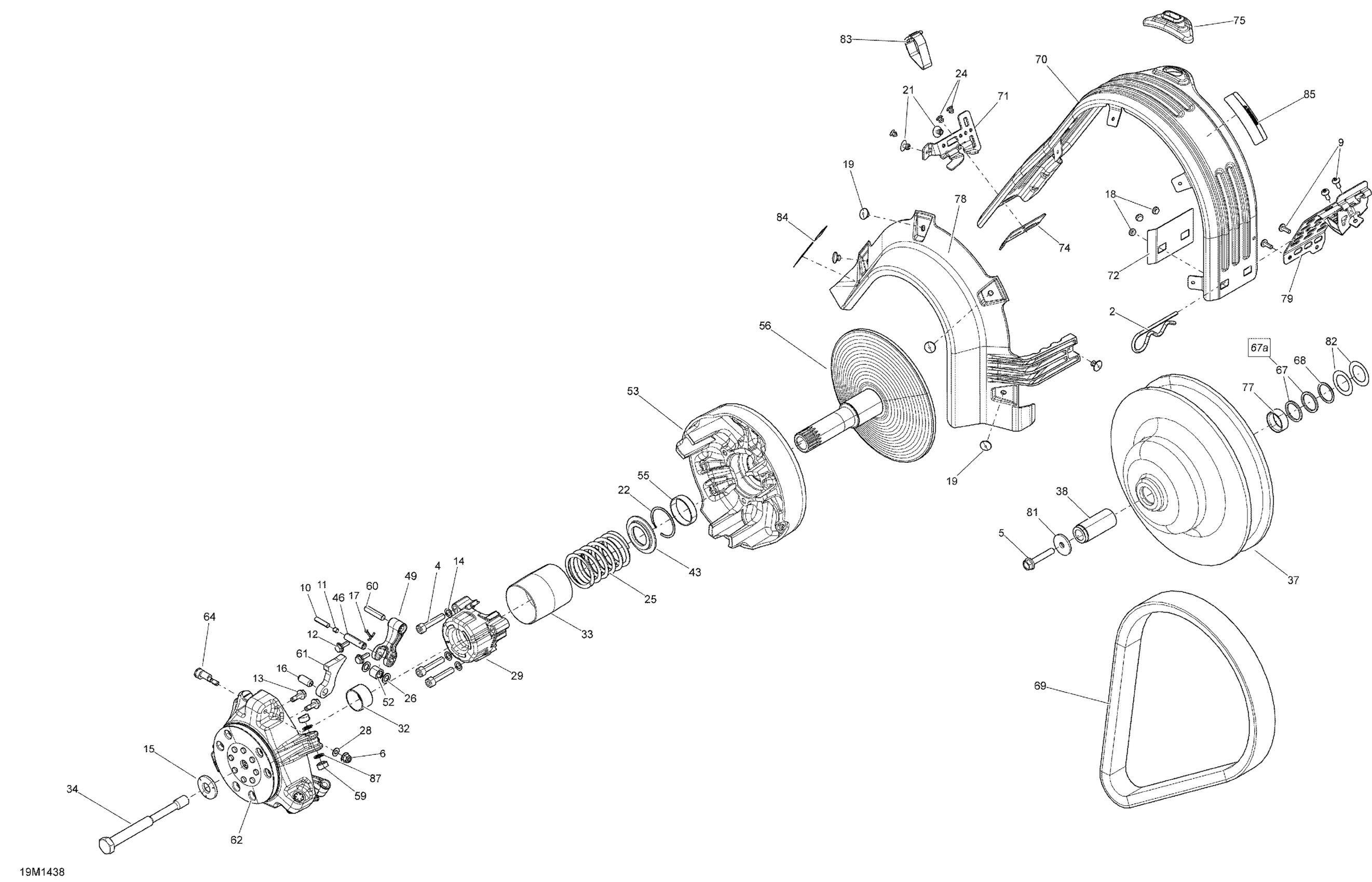

Ski-Doo MXZ X 600RS XS RS, 2014 05- Pulley System _19M1438 Diagram

#

Description
Price

2

Hair Pin

114045200

$11.11

4

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

5

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$7.20

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Torx Screw M5 X 14

250000742

$1.47

10

Screw Socket Set DIN.913 S.Grip

250000408

$4.09

11

Socket Set Screw

250000411

$3.17

12

Serrated Hex. Flange Bolt M6

250000416

$4.23

13

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

14

Lock Washer 8 mm

250200009

$2.11

15

Conical Spring Washer M14

250200144

$4.44

16

Spring Pin M10 X 22

250400050

$2.99

17

Cotter Pin

250400060

$2.00

18

Henrob Rivet

293150091

$0.77

19

Pop Rivet 3/16"

293150103

$0.55

21

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

22

Circlip

293370037

$3.19

24

Avex Rivet

390909200

$0.30

25

Racing Spring

417223610

$50.99

25

Clutch Spring

414689800

$44.49

26

Stopper Washer

417004302

$15.90

28

Washer

417005600

$4.09

29

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

32

Bushing

417009204

$17.49

33

Guard

417009205

$21.99

34

Drive Pulley Bolt

417120000

$65.49

37

Driven Pulley (Rapid Reaction)

417127425

Unavailable

38

Bushing

417127300

$63.99

43

Spring Seat

417222312

$9.59

46

Threaded Pin, M6 | High Altitude

417222595

$23.49

49

Lever | Includes 10f to 10g

417222671

$49.99

52

Roller

417222947

$21.99

53

Sliding Flange Ass'y

417222971

$579.99

55

Bushing

417222758

$22.49

56

FIXED FLANGE ASS'Y - Call your local BRP dealership

417223012

Unavailable

59

Slider Shoe This part replaces 420460045.

417223021

$5.90

60

Lever Axle

417223164

$4.49

61

RAMP 443 - Call your local BRP dealership

417223281

Unavailable

62

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223366

$459.99

64

Calibration Screw

417223501

$13.99

67

Spacer

417300252

$5.49

67a

Spacer

504149100

$12.99

68

Spacer

417300265

$2.29

69

Drive Belt

417300534

$219.99

70

Belt Guard

417300357

$91.99

71

FRONT BELT GUARD BRACKET - Call your local BRP dealership

417300360

$14.49

72

PLATE - Call your local BRP dealership

417300372

Unavailable

74

Reinforcement

417300380

$7.29

75

Guide

417300381

$11.99

77

Spacer

417300399

$17.49

78

CVT AIR DUCT - Call your local BRP dealership

417300501

Unavailable

79

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

81

Washer

503183100

$3.17

82

Shim

504112000

$8.59

83

Velcro Strip

508000599

$13.99

84

Decal English

516005503

Unavailable

85

Safety Belt Guard Decal

516005509

Unavailable

87

O-Ring

732401030

$0.98
