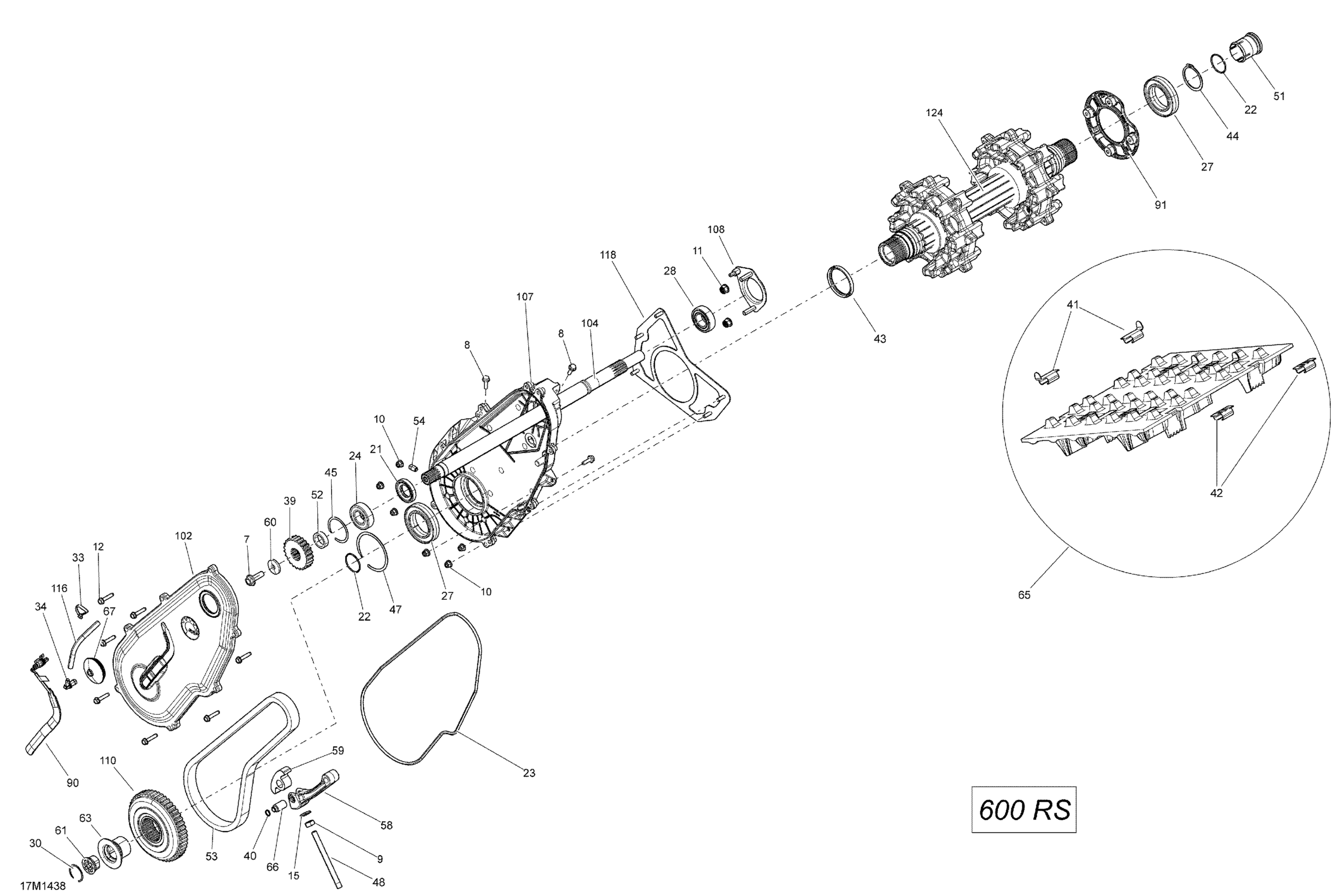

Ski-Doo MXZ X 600RS XS RS, 2014 Drive System _17M1438 Diagram

#

Description
Price

7

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

8

Hex. Flange Screw M6 X 20

207662034

$2.11

9

Hex. Nut M10 X 1.5

232006414

$1.37

10

Flange Elastic Nut M6

233261434

$4.44

11

Hex. Flange Elastic Nut M8

233281414

$1.47

12

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

15

Bonded Washer

250200100

$2.11

21

Oil Seal

293200168

$14.49

22

O-Ring

293300122

$2.11

23

Tight Seal

293300130

$7.51

24

Ball Bearing

293350115

$12.11

27

Ball Bearing

293350059

$30.99

28

Ball Bearing

293350074

$38.49

30

Circlip

293370052

$4.99

33

Tie-Rap 180 mm

414115200

$0.11

34

Male Connector

414580700

$4.12

39

Sprocket (Large), 21 Teeth

504139300

$132.49

40

Circlip

504152282

$3.17

41

Track Guide | Track Width 16''

415129528

$3.29

42

Cleat

504152651

$9.69

43

Oil Seal

293200159

$16.25

44

Circlip

504152572

$6.95

45

Circlip

504152576

$9.99

47

Circlip

504152582

$9.99

48

Adjustment Screw

504152602

$12.49

51

Magnetic Cap

504152619

$23.49

52

Shim

504152628

$10.99

53

Drive Chain, 106 Links

504152630

$179.99

54

Magnetic Plug 1/8 - 27 NPTF

504152854

$11.49

58

Tensioner chain

504153429

$15.99

59

Slider Chain

504152739

$65.99

60

Spring Washer M10

504152784

$7.65

61

Magnetic Adaptor

504152794

$47.49

63

THREADED CAP - Call your local BRP dealership

504152802

$78.99

65

TRACK ASS'Y TR15X128X1.7R - Call your local BRP dealership

504153259

Unavailable

66

Tensioner Axle

504152841

$16.34

67

Cap

504152860

$20.49

90

Rotation Sensor

504152896

$37.99

91

Retaining Ring

504153886

$21.99

102

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153410

$339.99

104

COUNTERSHAFT - Call your local BRP dealership

504153166

$379.99

107

Chaincase | Includes 10 to 10a

504153405

$339.99

108

Bearing Housing

504153185

$29.49

110

SPROCKET_49 TEETH ASSY - Call your local BRP dealership

504153598

Unavailable

116

Polyurethane Hose 10000Mm Long

219704410

$56.99

118

Plate | Not Shown

518325816

$79.99

124

Drive Axle Ass'y

504153084

$412.99
