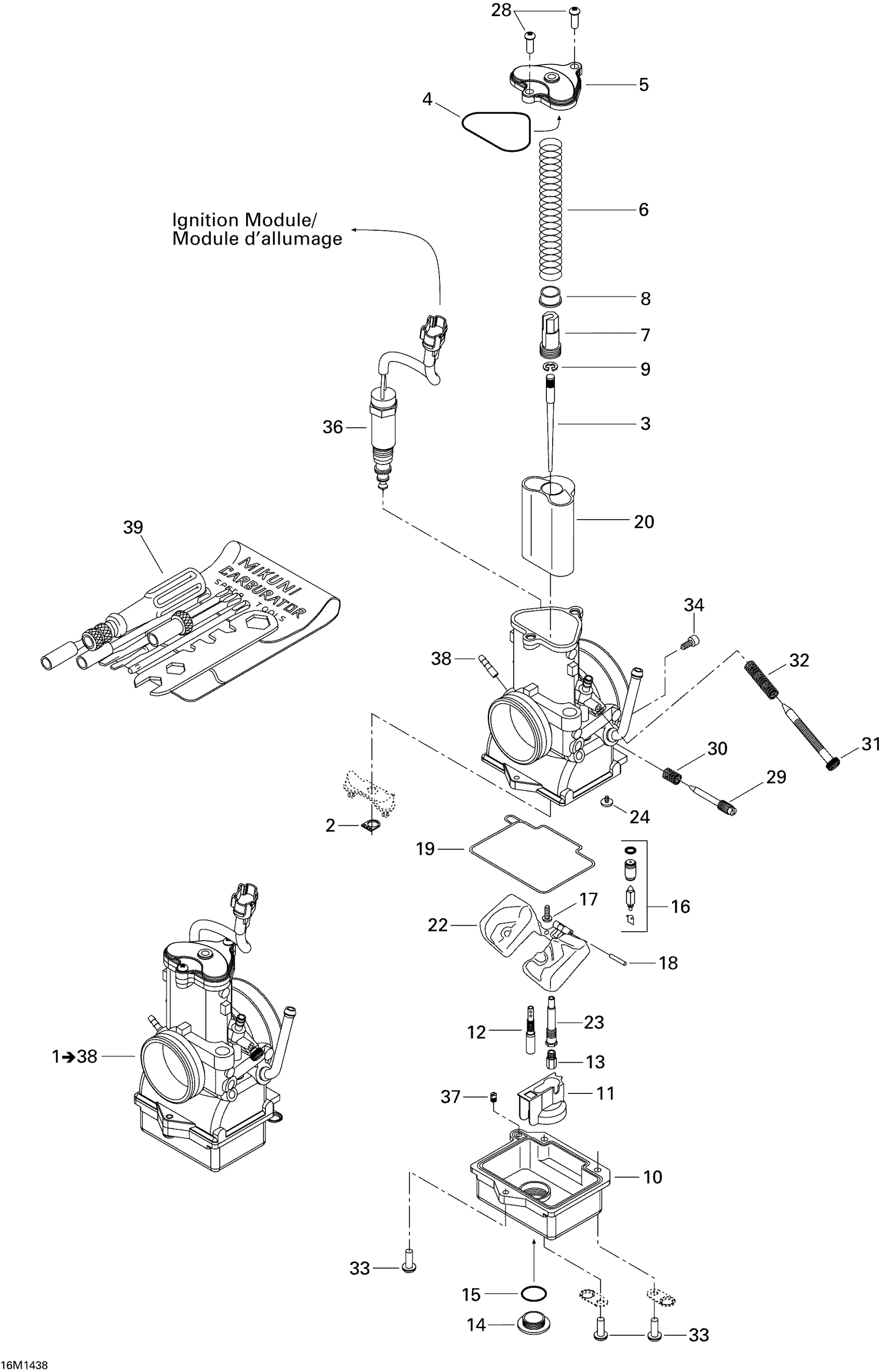

Ski-Doo MXZ X 600RS XS RS, 2014 02- Carburetor _16M1438 Diagram
#
Description
Price
1
Carburator, TMX39-1Z1
403138818
Unavailable
3
NEEDLE - Call your local BRP dealership
404162141
Unavailable
4
O-RING - Call your local BRP dealership
404162111
Unavailable
5
Top Cap
404162142
Unavailable
6
SPRING - Call your local BRP dealership
404162109
Unavailable
7
HOLDER GUIDE - Call your local BRP dealership
404162108
Unavailable
8
RING - Call your local BRP dealership
404161863
Unavailable
10
FLOAT BODY - Call your local BRP dealership
404162121
Unavailable
11
HOLDER - Call your local BRP dealership
404161855
Unavailable
17
SCREW - Call your local BRP dealership
404138600
Unavailable
18
PIN - Call your local BRP dealership
404161860
Unavailable
22
FLOAT - Call your local BRP dealership
404161859
Unavailable
23
JET NEEDLE - Call your local BRP dealership
486400012
Unavailable
29
ADJUSTER - Call your local BRP dealership
404161866
Unavailable
30
SPRING - Call your local BRP dealership
404132400
Unavailable
32
SPRING - Call your local BRP dealership
404161849
Unavailable
34
SCREW - Call your local BRP dealership
404162100
Unavailable
36
SELENOID - Call your local BRP dealership
404161998
Unavailable
37
POWER JET 160 - Call your local BRP dealership
404162098
Unavailable
38
NIPPLE - Call your local BRP dealership
404162123
Unavailable
39
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
