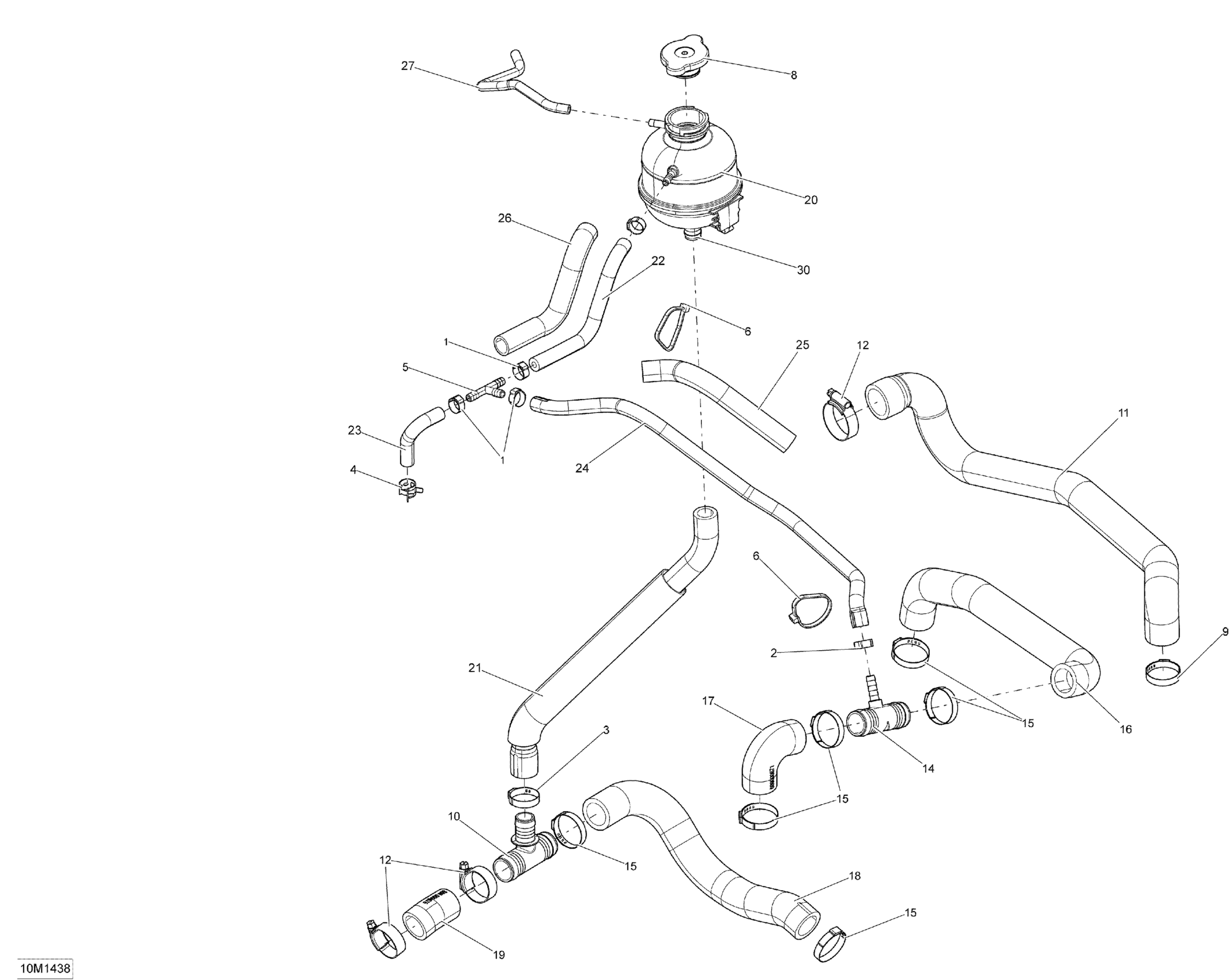

Ski-Doo MXZ X 600RS XS RS, 2014 Cooling System _10M1438 Diagram

#

Description
Price

1

Oetiker Clamp

293650046

$2.89

2

Crimp Clamp, 15.3-706R

293650047

$3.29

3

Crimp Clamp

293650099

$4.29

4

Spring Clamp

293650210

$5.39

5

T-Fitting | Europe

293710024

$14.75

6

Tie-Rap 180 mm

414115200

$0.11

8

Radiator Pressure Cap

509000180

$20.49

9

Oetiker Gear Clamp

509000181

$4.44

10

T-Fitting

509000372

$10.33

11

ENGINE OUTLET HOSE - Call your local BRP dealership

509000431

Unavailable

12

Aba Gear Clamp, 26-38 MM

509000443

$12.72

14

T-Fitting

509000510

$13.16

15

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

16

Radiator Hose

509000670

$36.99

17

Radiator Hose This part replaces 509000671.

509001066

$20.99

18

Radiator Hose

509000673

$23.49

19

Engine Inlet Hose This part replaces 509000675.

509001067

$17.53

20

Coolant Tank

509000802

$73.99

21

FILLING HOSE - Call your local BRP dealership

509000901

Unavailable

22

BREATHER HOSE - Call your local BRP dealership

509000902

Unavailable

23

BREATHER HOSE - Call your local BRP dealership

509000904

Unavailable

24

REAR BREATHER HOSE - Call your local BRP dealership

509000905

Unavailable

25

Tubing 16 Mm 1000Mm Long

219704408

$7.49

26

Tubing 16 Mm 1000Mm Long

219704408

$7.49

27

Hose 6 Mm 15000Mm Long

219704360

$132.49

30

Norma Gear Clamp

293650124

$7.37
