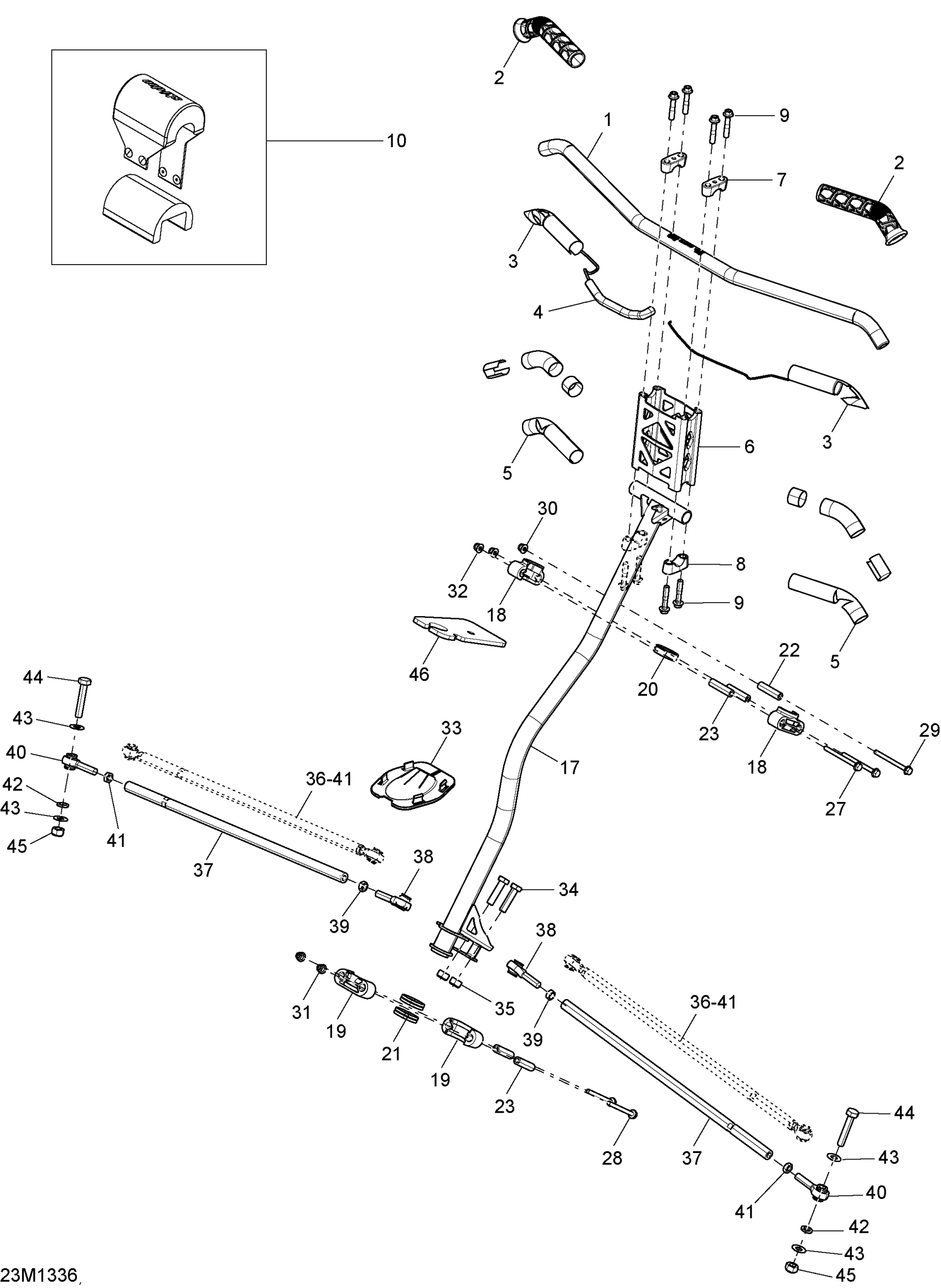

Ski-Doo MXZ X 600RS XP, 2013 07- Steering Diagram

#

Description
Price

1

FULL MOON HAND BAR - Call your local BRP dealership

506152712

Unavailable

2

Grip

506152486

$16.34

3

Heating Element 20 WATT

506152578

$56.99

4

Not Available As Spare Parts

XXX

Unavailable

5

Isolant

506152611

$10.99

6

Bronze Handlebar Extension

506152580

Unavailable

7

Steering Support | Includes 40 to 40a

506152751

$13.99

8

Steering Support | Includes 40 to 40a

506152751

$13.99

9

Hex. Flange Screw M8 X 40

250000352

$3.38

10

STEERING PAD - Call your local BRP dealership

506152522

$53.99

17

Steering Column

506152962

$199.99

18

Half-Housing

506152293

$12.99

19

LOWER HALF-HOUSING - Call your local BRP dealership

506152549

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Housing Bushing

506152297

$12.99

23

Housing Bushing

506152297

$12.99

25

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

27

Hex. Flange Screw M6 X 70

207667056

$4.44

28

Hex. Flange Screw M6 X 70

207667044

$0.85

29

Hex. Flange Screw M6 X 70

207667056

$4.44

30

Elastic Flange Nut M6 X 1.0

233261416

$2.11

31

Elastic Flange Nut M6 X 1.0

233261416

$2.11

32

Elastic Flange Nut M6 X 1.0

233261416

$2.11

33

Plate

506152163

$12.99

34

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

35

Elastic Stop Nut M10

232500416

$1.90

36

ROD_TIE ASSY - Call your local BRP dealership

506152499

Unavailable

37

ROD_TIE ASSY - Call your local BRP dealership

506152499

Unavailable

38

LH Thread Ball Joint

506152081

$41.49

39

LH Threaded Hex. Jam Nut M10

250100016

$0.74

40

RH Threaded Ball Joint

506152019

$41.49

41

RH Threaded Hex. Jam Nut M10

732610010

$0.74

42

Flat Washer 10 mm

234001410

$1.26

43

Washer

506152582

$4.55

44

Hex Screw M10 X 1.5 X 55

207005554

$7.51

45

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

46

Bushing

506152476

$12.58
