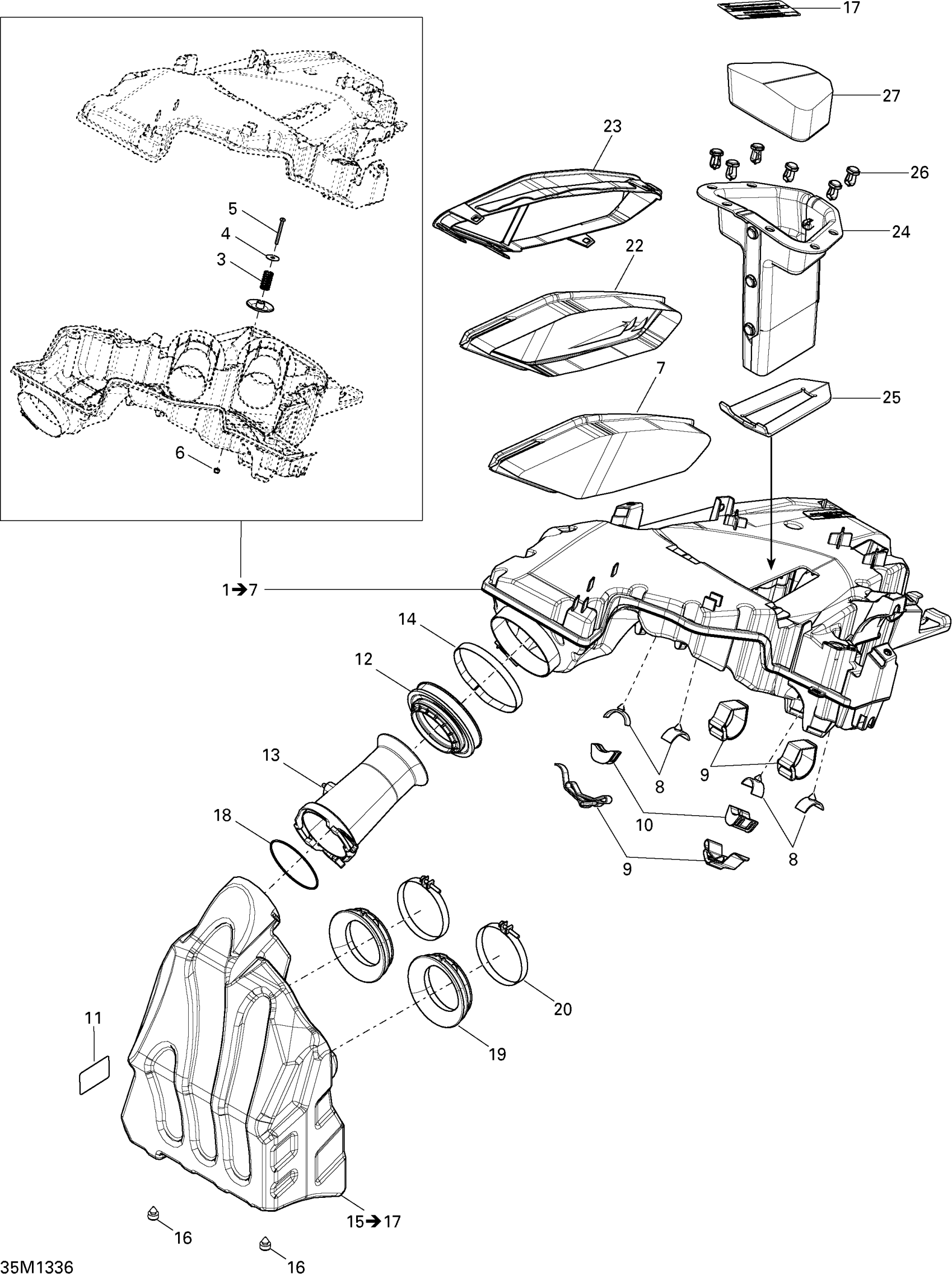

Ski-Doo MXZ X 600RS XP, 2013 Air Intake System Diagram

#

Description
Price

1

SECONDARY CHAMBER - Call your local BRP dealership | Includes 1 to 7

508000623

Unavailable

3

Spring

508000576

$7.35

4

Flat Washer

224060201

$1.15

5

Socket Head Screw M4 X 40 | X

205444086

$1.42

6

Elastic Stop Nut M4

232541414

$0.48

7

Air Filter

508000626

$37.66

8

Stopper

508000537

$7.35

9

Velcro Strip

508000820

$7.35

10

Bumper

508000572

Unavailable

11

Caution Decal Hot Parts

516005280

Unavailable

12

Boot

508000567

$16.89

13

Flute

508000662

$13.65

14

Norma Clamp

514052924

$10.58

15

PRIMARY CHAMBER ASS'Y - Call your local BRP dealership

508000535

Unavailable

16

Rubber Bumper

293830005

$5.33

17

Notice Decal, Air Intake Silencer

516005876

$4.12

18

O-Ring

293300115

$2.63

19

INTAKE ADAPTER - Call your local BRP dealership

508000721

Unavailable

20

Gemi Clamp

508000346

$9.31

22

Foam Filter

415129377

$36.89

23

Filter Cover

415129376

$71.51

24

AIR DUCT ASS'Y - Call your local BRP dealership

508000633

Unavailable

25

FOAM - Call your local BRP dealership

508000637

Unavailable

26

Tuflok Plastic Rivet

293150230

$1.21

27

AIR INTAKE FOAM - Call your local BRP dealership

508000634

Unavailable
