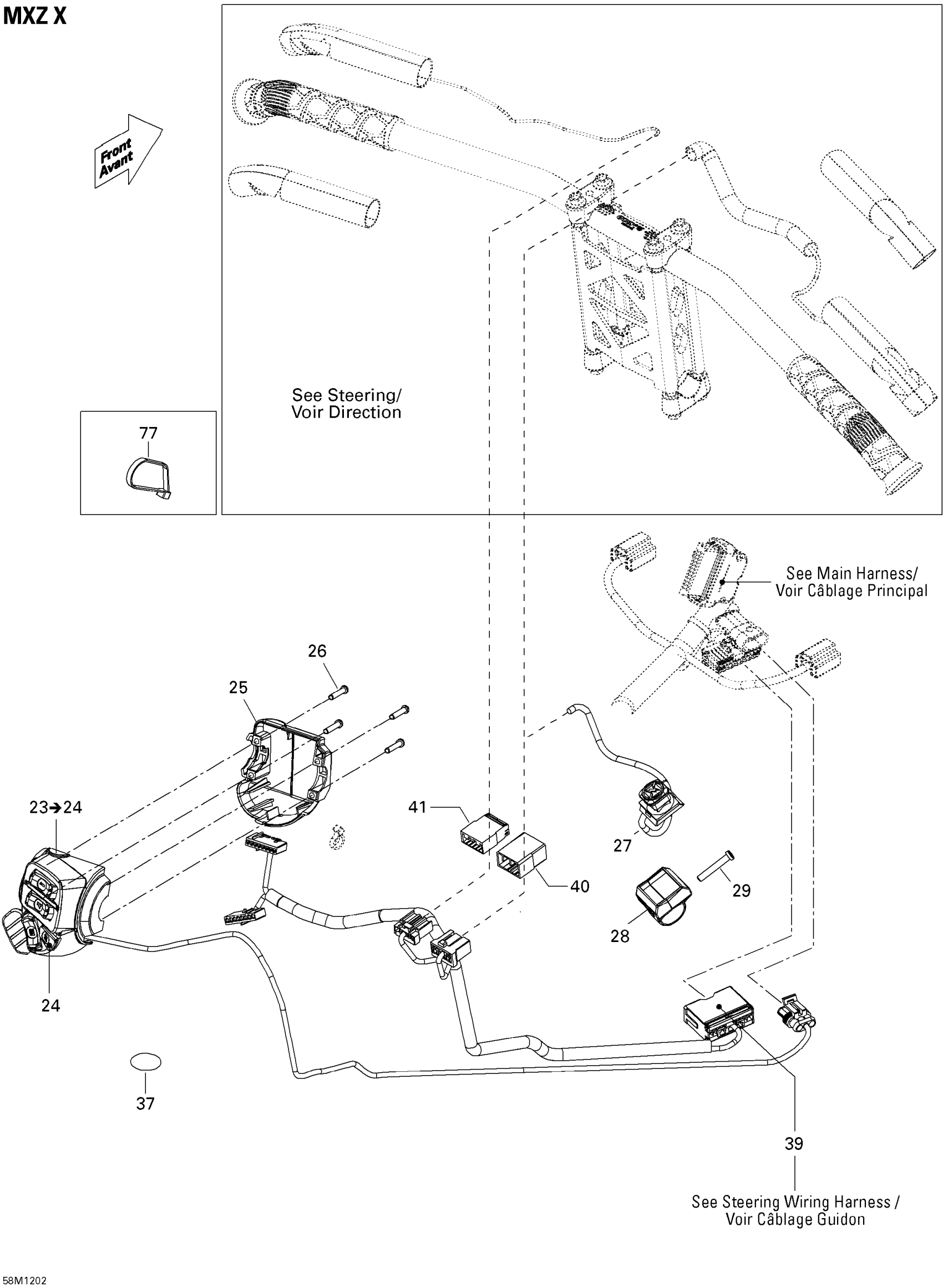

Ski-Doo MXZ X 600HOETEC, 2012 Electrical Accessories, Steering Diagram

#

Description

Price

23

LH Switch Housing | Includes 1 to 2

515177509

$264.99

24

Start/RER Button

515176088

$20.99

25

Switch Housing Plate

515175926

$20.99

26

Torx Screw #8-18

250000263

$1.04

27

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

28

Kill Switch Support

515176825

$10.49

29

Torx Screw #8-18

250000263

$1.04

37

Adhesive Patch

518325560

$4.69

39

STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership

515176868

Unavailable

40

Male Terminal Housing, 6 Circuits

515175662

$8.79

41

Male Terminal Housing, 4 Circuits

515175846

$8.79

77

Tie-Rap 180 mm

414115200

$0.11

77

Tie Wrap 142 mm

293750002

$1.25

77

Tie Wrap 368 mm

293750008

$1.04

77

Tie-Rap 173 mm

293750009

$1.04
