Description

Price

1

FRAME MXZ X - Call your local BRP dealership | Includes 1 to 36

415129630

Unavailable

2

E Module | Includes 10n to 10at

518327567

$469.99

3

RH Member

518326795

$284.99

4

LH Member

518326796

$229.99

5

Front Member

518326198

$64.99

6

Stavex Rivet

293150144

$0.82

7

Hemlock Rivet 6.5 mm

293150120

$7.41

8

Hemlock Rivet, 6.5 mm

293150119

$4.29

9

Leg Bushing

505072690

$12.49

11

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

RH Reinforcement

518324874

$27.99

16

LH Reinforcement

518324875

$27.99

17

RH Deflector, Black Polypropylene

518325782

$13.99

18

LH Deflector, Black Polypropylene

518325783

$13.99

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

20

Reinforcement Plate

518326647

$4.69

21

RH SLIDE SUSPENSION BRACKET - Call your local BRP dealership

518326654

Unavailable

22

LH SLIDE SUSPENSION BRACKET - Call your local BRP dealership

518326655

Unavailable

23

RH Rear Base

518325973

$21.99

24

LH Rear Base | Includes 10v to 10x

518325974

$21.99

25

RH Roller

518324812

$194.99

26

LH Roller

518324813

$194.99

27

Seal

518326656

$9.19

28

Front Radiator | Includes 10b to 10b2

518326485

$444.99

30

Rear Radiator 120''

518327580

$783.99

31

Stavex Rivet

293150144

$0.82

32

Rear Cap

518327105

$22.49

33

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

34

LH Stirup

518326820

$37.99

35

Panel Nut M5 X 0.8

250000958

$4.23

36

Full Moon Dart 5 mm

293730042

$2.21

12a

Hex. Flange Screw M6 X 20

207662044

$2.00

12b

Hex. Flange Screw M6 X 16

207661644

$0.74

17a

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

34a

U-Attach

518326961

$10.99

34b

Ornit Rivet 6,5 X 14.5

293150266

$2.40

34c

Tork Screw M6 X 16

250000534

$2.11

34d

Tork Screw M6 X 18

250000536

$2.11

34e

Flat Washer

250200039

$0.74

34f

Attach | Includes 10n to 10p

518326986

$12.99

34g

Elastic Stop Nut M6

232561414

$0.55

34h

Torx Screw M8 X 55

250000535

$3.17

34j

Hex. Flange Nut M6

233061414

$1.68

34k

Support

518326960

$12.99

A

Pop Rivet 3/16"

390402300

$0.75

C

Avex Rivet

390909200

$0.30

D

Avex Rivet

390909100

$0.30

E

Stavex Rivet

293150144

$0.82

G

Hemlock Rivet, 6.4 mm

293150174

$7.86

H

Interlock Rivet 3/16''

293150194

$1.04

J

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

$69.99

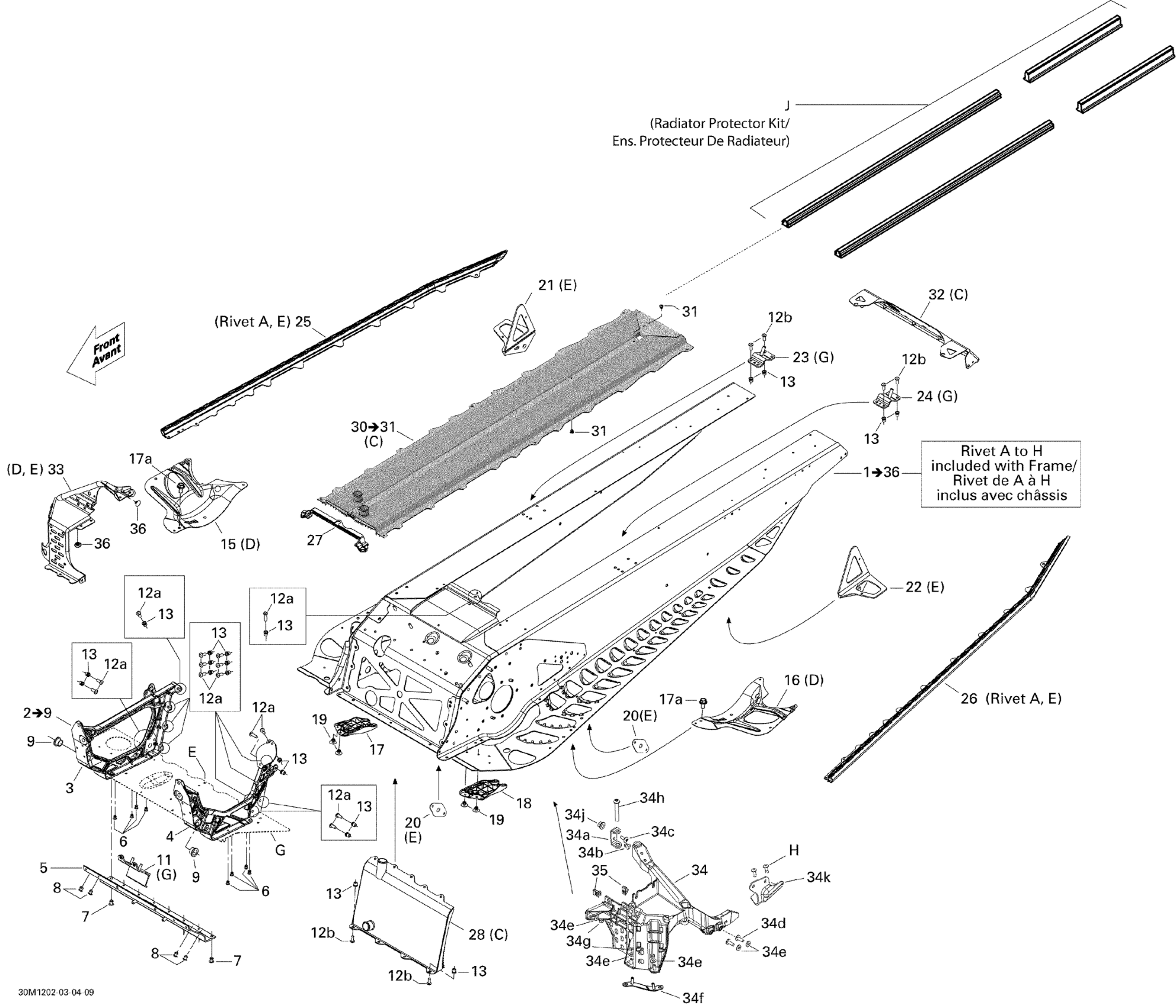

Ski-Doo MXZ X 600HOETEC, 2012 09- Frame Diagram

FRAME MXZ X - Call your local BRP dealership | Includes 1 to 36

E Module | Includes 10n to 10at

RH Member

LH Member

Front Member

Stavex Rivet

Hemlock Rivet 6.5 mm

Hemlock Rivet, 6.5 mm

Leg Bushing

MAG Engine Support | Includes 10a to 10a1

Hex. Flange Elastic Nut M6 x 1.0

RH Reinforcement

LH Reinforcement

RH Deflector, Black Polypropylene

LH Deflector, Black Polypropylene

Pop Rivet 3/16" | DS 650 X

Reinforcement Plate

RH SLIDE SUSPENSION BRACKET - Call your local BRP dealership

LH SLIDE SUSPENSION BRACKET - Call your local BRP dealership

RH Rear Base

LH Rear Base | Includes 10v to 10x

RH Roller

LH Roller

Seal

Front Radiator | Includes 10b to 10b2

Rear Radiator 120''

Stavex Rivet

Rear Cap

RH Stirup | Includes 10aa to 10ab

LH Stirup

Panel Nut M5 X 0.8

Full Moon Dart 5 mm

Hex. Flange Screw M6 X 20

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 12, Scotch Grip

U-Attach

Ornit Rivet 6,5 X 14.5

Tork Screw M6 X 16

Tork Screw M6 X 18

Flat Washer

Attach | Includes 10n to 10p

Elastic Stop Nut M6

Torx Screw M8 X 55

Hex. Flange Nut M6

Support

Pop Rivet 3/16"

Avex Rivet

Avex Rivet

Stavex Rivet

Hemlock Rivet, 6.4 mm

Interlock Rivet 3/16''

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.
