Description

Price

1

Allen Screw M3 X 0.5 X 10

250000644

$2.11

3

Socket Head Screw M4 X 12

205041254

$2.11

5

Socket Head Screw M6 X 20

205062060

$2.32

6

Socket Screw M8 X 25

205082554

$2.11

8

Socket Head Screw M6 X 10, Scotch Grip

205961060

$1.48

9

Socket Head Screw M10 X 35

205503554

$7.51

10

Socket Head Screw M12 X 35

205523554

$4.44

11

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

12

Hex. Cap Screw M10 X 60

207006056

$7.51

13

Hex. Cap Screw M6 X 30

207063054

$6.39

15

Hex. Screw M8 X 55

207085544

$1.68

16

Cap Screw Hex. M10 X 40

207204056

$7.51

17

Hex. Flange Screw M5 X 25

207652544

$0.50

19

Hex. Flange Screw M6 X 25

207662556

$4.44

20

Hex. Flange Screw M6 X 70

207667056

$4.44

22

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

23

Hex. Flange Screw M8 X 40

207684044

$1.48

24

Phillips Screw M6 X 25

208562531

$2.11

24

Phillips Screw M6 X 25

208562531

$2.11

24

Phillips Screw M6 X 25

208562531

$2.11

25

Hex Screw M10 x 100

230100054

$6.45

29

Elastic Stop Nut M6

232561414

$0.55

29

Elastic Stop Nut M6

232561414

$0.55

29

Elastic Stop Nut M6

232561414

$0.55

30

Hex. Flange Elastic Nut M5

233251414

$1.04

32

Hex. Flange Elastic Nut M6

233261466

$2.00

33

Elastic Flange Nut M8

233281466

$1.01

34

Elastic Locking Nut M10 X 1.5

233601416

$1.69

35

Elastic Locking Nut M10

233601466

$2.11

36

Stainless Flat Washer M6

234061600

$0.33

37

Flat Washer 8 mm

234082410

$1.47

38

Conical Spring Washer M10

250200141

$2.11

39

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$4.44

40

Hex. Cap Screw M12 X 35

250000537

$3.17

41

Flat Washer 8 mm

250200128

$4.44

42

Washer

250200138

$2.11

43

Washer

250200140

$1.01

44

Spring Pin

250400014

$3.28

45

Pop Rivet 3/16"

293150013

$1.37

46

Stavex Rivet

293150144

$0.82

49

O-Ring

293250085

$1.01

50

O-Ring

293250269

$2.32

51

O-Ring

293300036

$11.60

52

O-Ring

293300039

$10.33

53

O-Ring

293300068

$7.65

56

Retaining Ring

293370080

$2.29

60

Grease Fitting

408200700

$3.49

61

Retaining Ring

415129371

$12.01

62

Retaining Ring

415129780

$15.79

65

Urethane Bushing

503189117

$8.19

66

Axle Spring

503189146

$9.59

67

Pivot Arm Axle

503189156

$21.99

69

Bushing

503189271

$13.99

70

Washer

503189276

$3.28

71

Bushing | Includes 240d to 240d1

503189282

$4.34

73

Ball Bearing | Package-STD

503190396

$14.30

75

Rear Wheel Spacer

503190428

$8.14

76

Rear Axle

503190429

$59.99

77

Spacer

503196317

$18.49

78

Washer

503190432

$14.22

79

Labyrinth Seal

503190434

$6.09

81

Rubber Stopper

503190576

$12.99

86

Axle Bar (Long)

503190643

$17.39

87

Washer

503190656

$2.96

88

Labyrinth Seal

503190682

$6.19

89

Axle

503190698

$20.99

91

Spring Support Kit

861805547

$10.49

96

Spring Support Kit

861805547

$10.49

98

Center Bushing

503191259

$11.49

99

Axle Strap

503191260

$30.99

101

Washer

503191273

$1.35

102

Spring Spacer

503191281

$8.89

103

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$124.99

104

Black Slider Shoe 120"

503191301

$29.49

104

Black Slider Shoe 120"

503191301

$29.49

104

Black Slider Shoe 120"

503191301

$29.49

105

Rear Shock | Includes 141 To 141h, North America

503193172

$877.49

105

Rear Shock | Includes 141 To 141h, Europe

503193471

Unavailable

105a

O-Ring

415093804

$4.54

105b

O-Ring

505070400

$4.54

105c

Screw | Not Shown

505070399

$4.12

105d

Air Valve

505070398

$20.99

105e

Piston Ring | Not Shown

415093806

$16.86

105f

O-Ring

415093807

$35.99

105g

Bolt

415093810

$16.86

105h

O-Ring

415038700

$42.99

109

Black, Spring (189mm) Long

503193067

$90.99

111

Black Spring (51mm) Short

503193480

$90.99

112

Spring Stopper

503194270

$19.99

113

Bushing

503191554

$6.14

114

Swivel Bushing

503191555

$7.83

120

Cushion

503191640

$5.93

123

Wheel Cup M6

503191820

$4.99

124

BOLT M10 X 251MM - Call your local BRP dealership

503191896

$15.99

125

Washer

503191910

$2.32

126

Washer

503191926

$1.58

127

Lower Axle

503191966

$15.89

130

Ball Bearing

503193548

$17.99

132

Bolt M8 X 248mm

503192440

$30.49

136

Washer

503192491

$4.54

137

Washer

503192494

$3.17

138

Washer

503192496

$0.77

139

Slide Protector

503192530

$19.99

141

Rocker

503192531

$76.99

153

Axle Bar

503192555

$14.15

154

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

155

Labyrinth Ring

503192592

$4.99

156

Axle Shock Absorber

503196509

$12.58

162

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$769.99

163

Spacer

503196943

$10.99

164

Spring Bracket

503192633

$164.99

165

Guide Block

503192749

$6.19

167

Rubber Stopper

503192750

$14.99

168

Stopper Strap

503192759

$25.99

173

Black, Wheel Ass'y 180 mm | Included 600 to 600b

503192766

$51.99

174

Bushing

503192767

$17.39

179

Black, Wheel Cap

503192771

$2.39

184

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$51.99

187

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

188

Cylinder

503192795

$70.99

192

Hydraulic Adjuster Ass'y | Included 7000 to 7000g

503193777

$769.99

196

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$48.49

197

RH Support

503192810

$37.99

199

LH Support

503192811

$37.99

202

Tensioner

503192583

$8.29

209

WIPER SEAL - Call your local BRP dealership

503192825

Unavailable

211

O-Ring

503192832

$2.32

212

Wear Ring

503192833

$16.86

213

Retaining Ring

503192834

$4.99

221

LH Cam Block

503192918

$14.99

221

RH Cam Block

503192919

$14.99

222

O-Ring

503192921

$2.32

223

LH Half Housing

503192956

$12.99

224

RH Half-Housing

503192957

$14.49

225

Rear Arm Ass'y | With Quick Adjust System

503193618

$296.49

226

Lower Shaft

503192981

$20.99

227

ROD_LINK - Call your local BRP dealership

503193010

Unavailable

228

O-Ring

503193014

$2.32

229

Adjustment Knob Ass'y | Included 7740 to 7740b

503193025

$14.49

231

Bushing

503193037

$16.18

232

Knob Adjuster Ass'y | Included 7010 to 7010b

503193056

$26.99

233

Casted Support

503193894

$16.49

236

Rubber Stopper Ass'y

503195523

$5.59

237

Pivot Axle

503193435

$39.99

241

Black, LH Spring Square

503193158

$79.49

241

Black, RH Spring Square

503193159

$79.49

242

Plate

503193166

$19.99

246

Spacer

503193250

$16.49

248

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

252

Orange Runner 120'' | Model-MX-Z XS With Orange Cab

503193405

Unavailable

252

RAIL_SUSPENSION 120 B-160 - Call your local BRP dealership

503193526

Unavailable

252

RAIL_SUSPENSION 120 B-160 - Call your local BRP dealership

503193526

Unavailable

256

Screw M8 X 90

503193372

$4.44

260

Retaining Plate

503195712

$20.99

261

LH HOSE PROTECTOR - Call your local BRP dealership

503193437

Unavailable

262

RH HOSE PROTECTOR - Call your local BRP dealership

503193438

Unavailable

263

Link Ass'y | Includes 3100 to 3100f

503195985

$75.99

264

Connector Hose

503193476

$45.99

268

Black, Wheel Ass'y 141 mm | Included 440 to 440b

503193477

$37.99

273

Master Cylinder Ass'y | Included 7000a to 7000a.j

503193490

$309.99

284

Leg Cushion

505072663

$9.23

288

STICKER KNOB ADJUSTER - Call your local BRP dealership

516004751

Unavailable

289

Shock Knob Adjustment Decal

516004752

$16.49

290

Decal

516006369

$16.49

291

Runner Decal

516004755

$11.99

293

LH Block Sticker Decal

516004900

$18.99

293

RH Block Sticker Decal

516004901

$18.99

294

Adjustment Decal

516004917

$44.99

300

Reinforcement Stopper

572084800

$12.99

303

Copper Washer

705601628

$4.44

304

Banjo Bolt

705600628

$11.63

309

Central Shock

503193283

$434.49

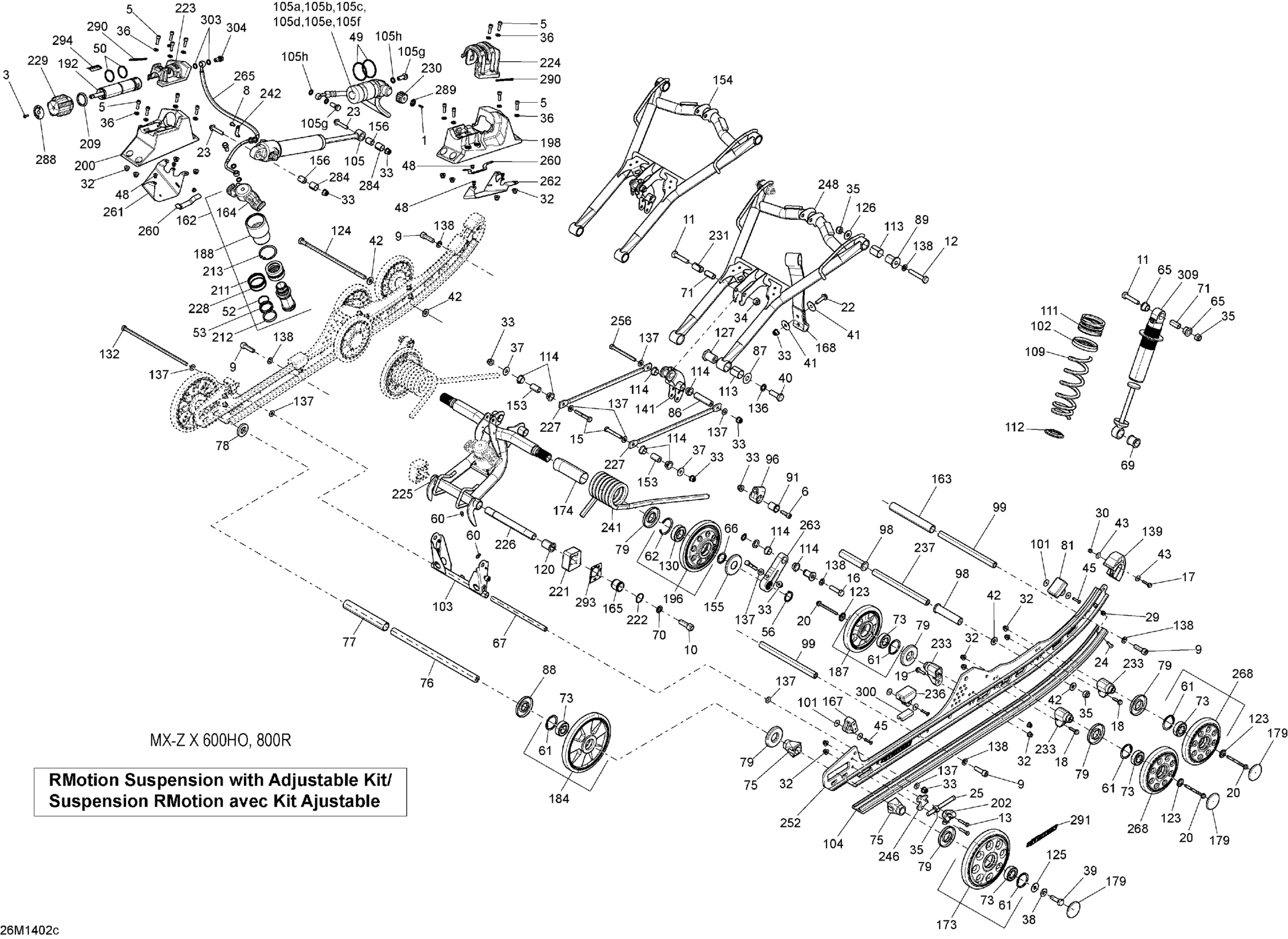

Ski-Doo MXZ X 600HOE XS, 2014 08- Rear Suspension RMotion w ADJ KIT_26M1402c Diagram
