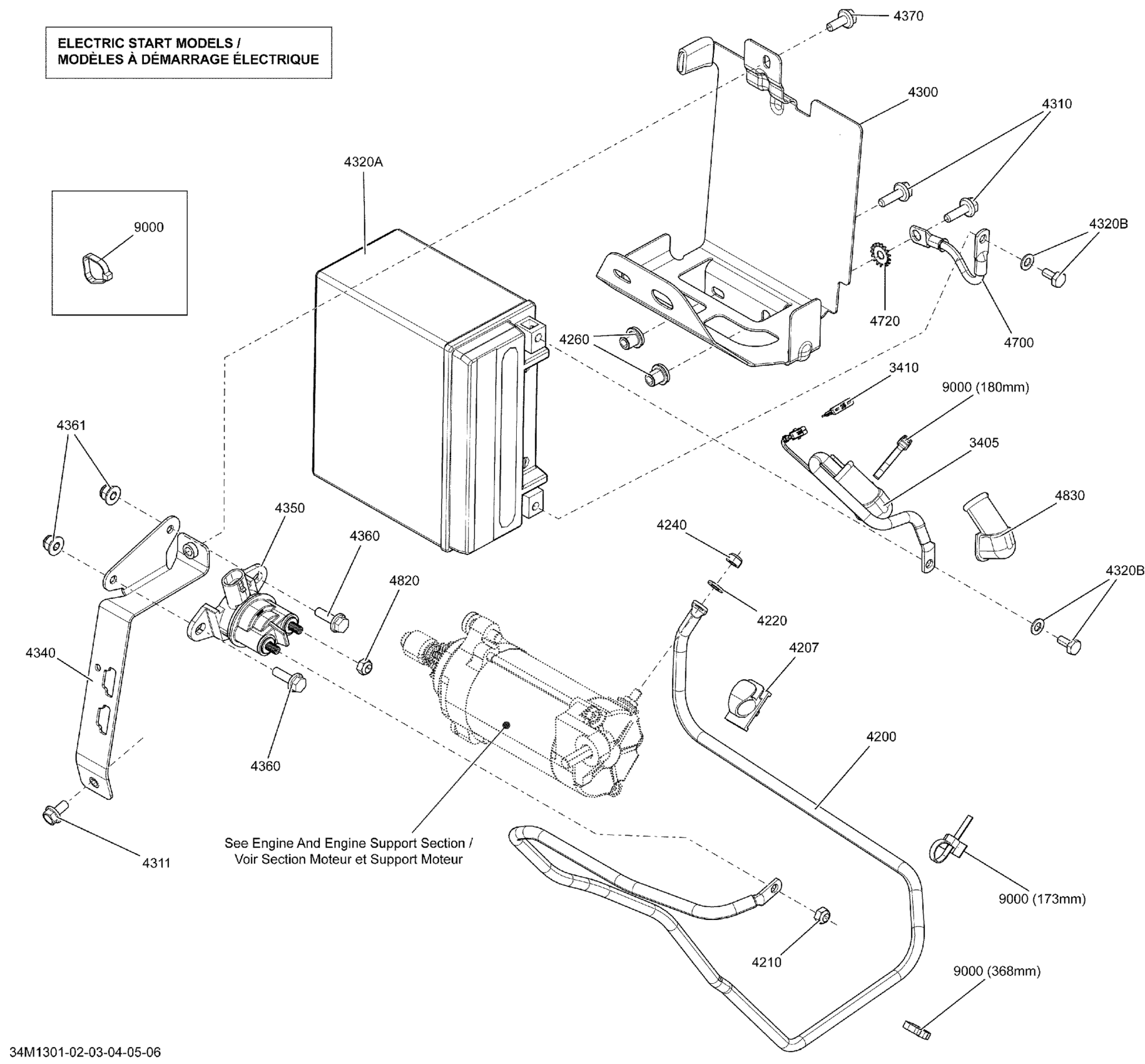

Ski-Doo MXZ X 600HOE, 2013 Battery And Starter Diagram

#

Description
Price

3405

BATTERY FUSE WIRE - Call your local BRP dealership | 800RE Electric Starter

515177207

Unavailable

3410

Fuse, 25 Amperes

278001443

$3.28

4200

Battery/Starter Wire

515177208

$30.99

4207

Clip

515177066

$4.29

4210

Elastic Stop Nut M6

232561414

$0.55

4220

Flat Washer 6 mm

234061410

$1.36

4240

Elastic Stop Nut M6

232561414

$0.55

4260

Insert

293450275

$12.99

4300

Battery Support

515177264

$31.99

4310

Hex. Flange Screw M6 X 20

207662044

$2.00

4311

Hex. Flange Screw M6 X 12

207661244

$2.11

4320A

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

4320B

Battery Bolt Kit

250000282

$7.29

4340

Battery Strip

515177266

$19.99

4350

Starter Relay

278003012

$42.49

4360

Hex. Flange Screw M6 X 20

207662044

$2.00

4361

Elastic Flange Nut M6 X 1.0

233261416

$2.11

4370

Hex. Flange Screw M6 X 16

207661644

$0.74

4700

Ground Wire

515176358

$27.99

4720

Lock Washer Serrated M6

250200041

$1.15

4820

Elastic Stop Nut M6

232561414

$0.55

4830

Protector Cap

710000495

$10.99

9000

Tie Wrap 94 mm | 4X4

293750001

$1.03

9000

Tie Wrap 142 mm

293750002

$1.25

9000

Tie-Rap 173 mm

293750009

$1.04

9000

Tie-Rap 180 mm

414115200

$0.11

9000

Tie Wrap 368 mm

293750008

$1.04
