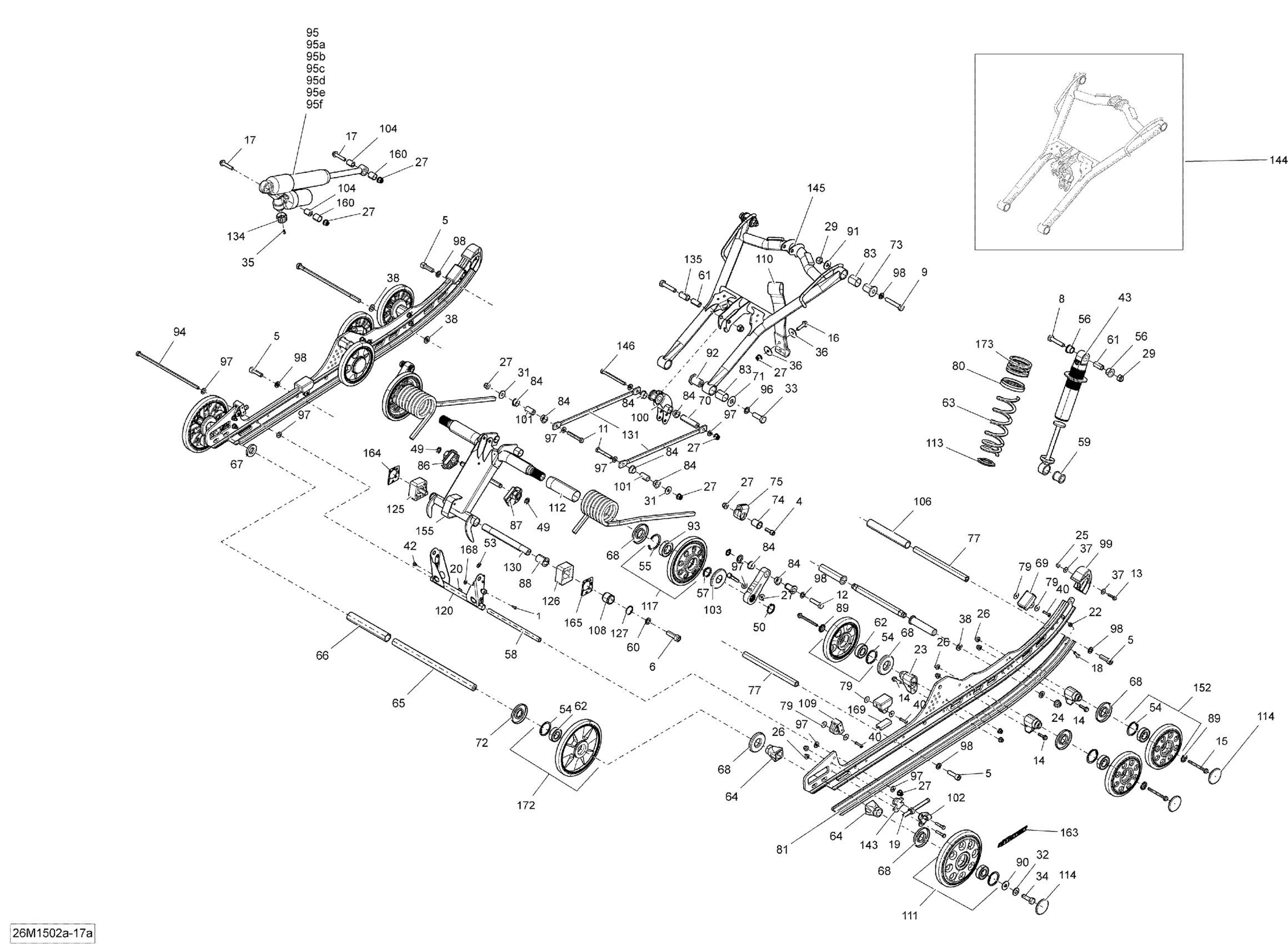

Ski-Doo MXZ X 1200 XR120, 2015 08- Rear Suspension rMotion_26M1517a Diagram

Socket Head Screw M4X 10

205041060

$2.11

Socket Screw M8 X 25

205082554

$2.11

Socket Head Screw M10 X 35

205503554

$7.51

Socket Head Screw M12 X 35

205523554

$4.44

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

Hex. Cap Screw M10 X 60

207006056

$7.51

Hex. Cap Screw M6 X 30

207063054

$6.39

Hex. Screw M8 X 55

207085544

$1.68

Cap Screw Hex. M10 X 40

207204056

$7.51

Hex. Flange Screw M5 X 25

207652544

$0.50

Hex. Flange Screw M6 X 25

207662556

$4.44

Hex. Flange Screw M6 X 70

207667056

$4.44

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

Hex. Flange Screw M8 X 40

207684044

$1.48

Phillips Screw M6 X 25

208562531

$2.11

Hex Screw M10 x 100

230100054

$6.45

Hexagonal Nut M6

232061404

$0.34

RAIL_SUSPENSION 120 B-160 - Call your local BRP dealership

503193526

Unavailable

Elastic Stop Nut M6

232561434

$1.99

Elastic Stop Nut M5

232551414

$0.87

Casted Support

503193894

$16.49

Flange Elastic Nut M10

233201466

$3.17

Flange Elastic Nut M5

233251434

$2.00

Hex. Flange Elastic Nut M6

233261466

$2.00

Elastic Flange Nut M8

233281466

$1.01

Elastic Locking Nut M10 X 1.5

233601416

$1.69

Elastic Locking Nut M10

233601466

$2.11

Flat Washer 8 mm

234082410

$1.47

Conical Spring Washer 10 mm

234201474

$1.69

Hex. Cap Screw M12 X 35

250000537

$3.17

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$4.44

Allen Screw M3 X 0.5 X 10

250000644

$2.11

Flat Washer 8 mm

250200128

$4.44

Washer

250200140

$1.01

Flat Washer

250200143

$3.17

Pop Rivet 3/16"

293150013

$1.37

Pop Rivet 3/16"

390402200

$0.35

Central Shock

503193283

$434.49

E-Circlip

293370013

$0.65

Retaining Ring

293370080

$2.29

Grease Fitting

408200700

$3.49

Retaining Ring

415129371

$12.01

Retaining Ring

415129780

$15.79

Urethane Bushing

503189117

$8.19

Axle Spring

503189146

$9.59

Pivot Arm Axle

503189156

$21.99

Bushing

503189271

$13.99

Washer

503189276

$3.28

Bushing | Includes 240d to 240d1

503189282

$4.34

Ball Bearing | Package-STD

503190396

$14.30

Deep Black, Spring (189mm) Long

503193160

$90.99

Rear Wheel Spacer

503190428

$8.14

Rear Axle

503190429

$59.99

Spacer

503196317

$18.49

Washer

503190432

$14.22

Labyrinth Seal

503190434

$6.09

Rubber Stopper

503190576

$12.99

Axle Bar (Long)

503190643

$17.39

Washer

503190656

$2.96

Labyrinth Seal

503190682

$6.19

Axle

503190698

$20.99

Spring Support Kit

861805547

$10.49

Spring Support Kit

861805547

$10.49

Center Bushing

503191259

$11.49

Axle Strap

503191260

$30.99

Washer

503191273

$1.35

Spring Spacer

503191281

$8.89

Black Slider Shoe 120"

503191301

$29.49

Bushing

503191554

$6.14

Swivel Bushing

503191555

$7.83

LH Cam Adjuster

503191565

$16.49

RH Cam Adjuster

503191566

$16.49

Cushion

503191640

$5.93

Wheel Cup M6

503191820

$4.99

Washer

503191910

$2.32

Washer

503191926

$1.58

Lower Axle

503191966

$15.89

Ball Bearing

503193548

$17.99

Bolt M8 X 248mm

503192440

$30.49

Rear Shock | Includes 5500 to 5500g

503194368

$877.49

Rear Shock Ass'y | Includes 95 To 95f, Europe

503193470

Unavailable

O-Ring

415093804

$4.54

O-Ring

505070400

$4.54

Screw | Not Shown

505070399

$4.12

Air Valve

505070398

$20.99

Piston Ring | Not Shown

415093806

$16.86

O-Ring

415093807

$35.99

Washer

503192491

$4.54

Washer

503192494

$3.17

Washer

503192496

$0.77

Slide Protector

503192530

$19.99

Rocker

503192531

$76.99

Axle Bar

503192555

$14.15

Tensioner

503192583

$8.29

Labyrinth Ring

503192592

$4.99

Axle Shock Absorber

503196509

$12.58

Spacer

503196943

$10.99

Guide Block

503192749

$6.19

Rubber Stopper

503192750

$14.99

Stopper Strap

503192759

$25.99

Black, Wheel Ass'y 180 mm | Included 600 to 600b

503192766

$51.99

Bushing

503192767

$17.39

Spring Stopper

503194270

$19.99

Black, Wheel Cap

503192771

$2.39

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$48.49

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$124.99

LH Cam Block

503192918

$14.99

RH Cam Block

503192919

$14.99

O-Ring

503192921

$2.32

Lower Shaft

503192981

$20.99

ROD_LINK - Call your local BRP dealership

503193010

Unavailable

Shock Adjuster Knob

503193033

$10.99

Bushing

503193037

$16.18

Rubber Stopper Ass'y

503195523

$5.59

Bolt M10 X 251MM

503193227

$17.29

Spacer

503193250

$16.49

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

Screw M8 X 90

503193372

$4.44

Pivot Axle

503193435

$39.99

Black, Wheel Ass'y 141 mm | Included 440 to 440b

503193477

$37.99

Link Ass'y | Includes 3100 to 3100f

503195985

$75.99

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$285.99

Leg Cushion

505072663

$9.23

Runner Decal

516004755

$11.99

LH Block Sticker Decal

516004900

$18.99

RH Block Sticker Decal

516004901

$18.99

Flat Washer

517225900

$0.18

Reinforcement Stopper

572084800

$12.99

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$51.99

Black, Spring (51mm) Short

503193837

$67.99
