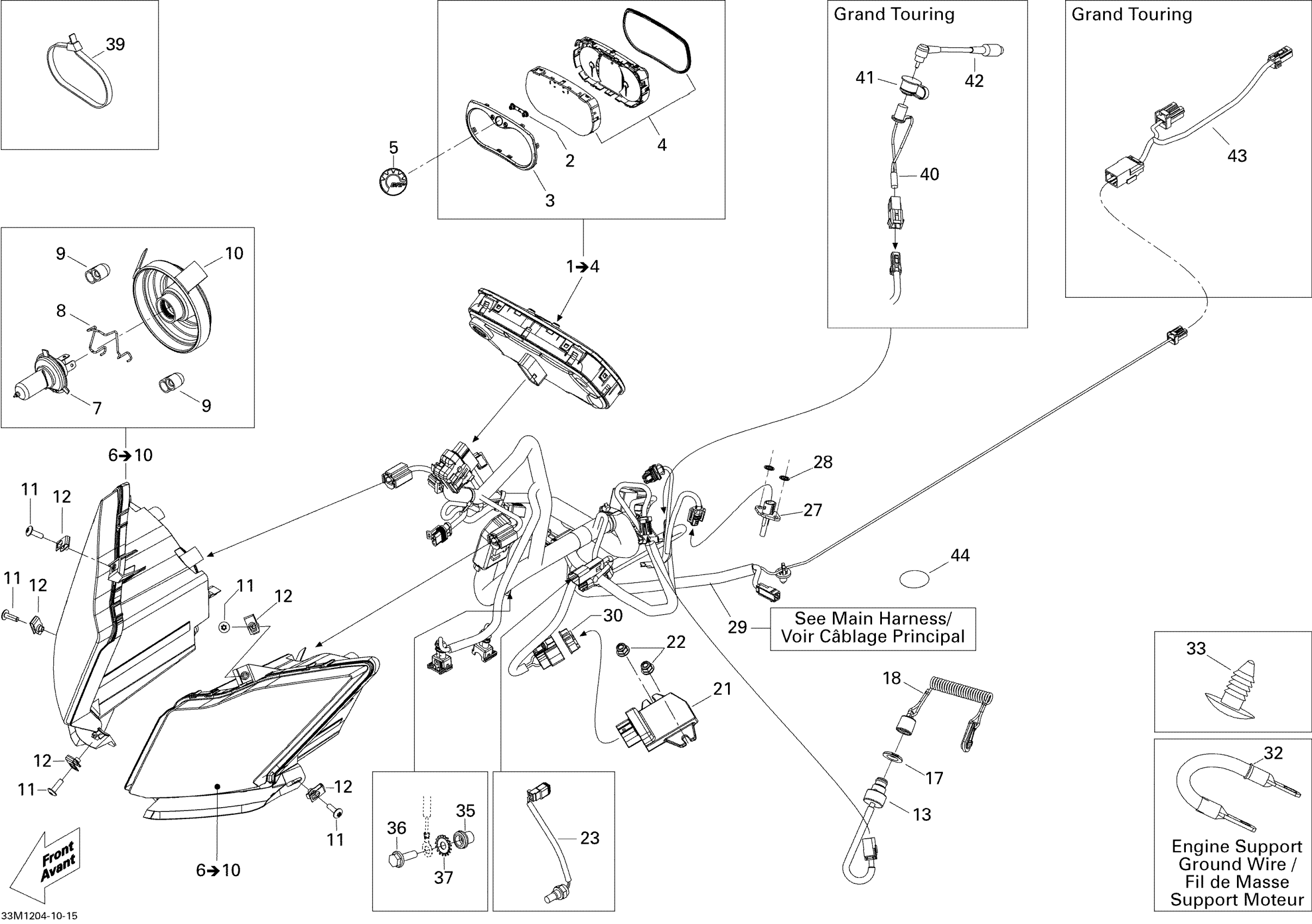

Ski-Doo MXZ TNT & Sport 600 XP, 2012 10- Electrical System Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177914

$629.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129370

$11.49

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

8

BULB HOLDER - Call your local BRP dealership

515176493

Unavailable

9

Cap

515176498

$12.99

10

Rubber Cap Protector

219800280

$19.49

11

Torx Screw M6 X 20

250000722

$1.68

12

Panel Nut M6 X 1.0

250100198

$2.11

13

DESS Switch

515177249

$114.99

17

Safety Nut (DESS Switch)

278002963

$3.28

18

DESS

515178284

$84.99

21

Voltage Regulator

515176364

$153.49

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Sensor Temperature

515177814

$58.99

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

WIRING HARNESS MAIN - Call your local BRP dealership | 600

515177095

Unavailable

30

Lock

515176681

$20.99

32

Ground Wire

515177289

$26.99

33

Black, Dart

414644300

$0.98

35

Insert

293450275

$12.99

36

Hex. Flange Screw M6 X 20

207662044

$2.00

37

Lock Washer Serrated M6

250200041

$1.15

39

Tie Wrap 94 mm | 4X4

293750001

$1.03

39

Tie Wrap 142 mm

293750002

$1.25

39

Tie-Rap 173 mm

293750009

$1.04

39

Tie-Rap 180 mm

414115200

$0.11

39

Tie Wrap 368 mm

293750008

$1.04

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Adhesive Patch

518325560

$4.69
