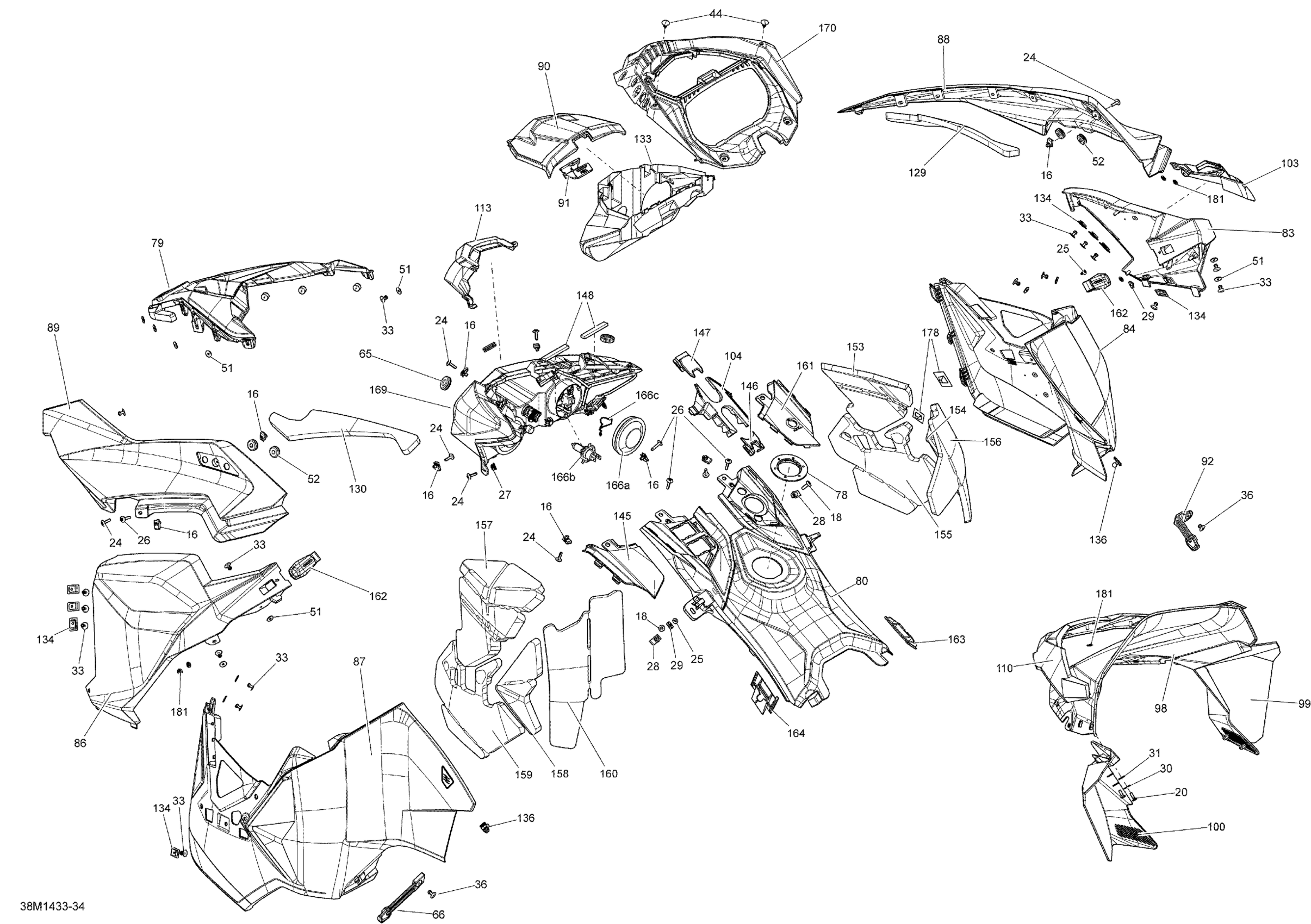

Ski-Doo MXZ TNT 900ACE XS, 2014 09- Hood, Windshield And Console _38M1433 Diagram

#

Description
Price

16

Panel Nut M5 X 0.8

250000958

$4.23

17

Screw M4 X 16

250000725

$3.49

18

Torx Screw M6 X 20

250000722

$1.68

20

Torx Screw K50 X 16

250000720

$1.69

24

Torx Screw M5 X 20

250000528

$2.11

25

Hexalob Screw M4 X 10

250000565

$2.11

26

Torx Screw M5 X 26

250000587

$4.44

27

Jack Nut M5

250100035

$6.99

28

Panel Nut M6 X 1.0

250100198

$2.11

29

Weld Nut M4

250100156

$4.34

30

Rubber Washer 5 mm

250200024

$2.19

31

Washer M5

250200025

$0.74

33

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

36

Pop Rivet 3/16”

293150108

$1.19

44

Black, Dart

414644300

$0.98

51

Washer

517124300

$0.19

52

Grommet

517302841

$7.89

65

Grommet

517303756

$4.09

66

LH Panel Latch

517303808

$11.49

78

Console Nut

517304518

$15.29

79

Deep Black, Center Hood

517304796

$214.99

80

CONSOLE-REAR - Call your local BRP dealership This part replaces 517304797.

517305556

Unavailable

83

PANEL_BODY RH B-190 - Call your local BRP dealership

517305235

Unavailable

84

Black, RH Panel Trim

517305058

$249.99

86

PANEL_BODY LH B-190 - Call your local BRP dealership

517305237

Unavailable

87

Black, LH Flashing Panel

517304805

$189.99

88

HOOD RH B-190 - Call your local BRP dealership

517304910

Unavailable

89

HOOD LH B-190 - Call your local BRP dealership

517304911

$189.99

90

Deep Black, Upper Storage Access Cover

517304912

$18.49

91

Cover Latch

517304917

$12.99

92

RH Panel Latch

517304919

$16.49

98

Windshield 345mm

517304927

$164.99

99

RH Air Deflector, Black 63% Transm.

517304928

$32.99

100

LH Air Deflector, Black 63% Transm.

517304929

$40.99

103

Deep Black, RH Panel Vent Grid

517304935

$31.99

104

Deep Black, Console Support

517304970

$14.49

110

Windshield Support Long, Yellow 2000

860200944

$38.49

113

Headlight Trim Cap

517305010

$37.99

129

RH Rear Hood Foam

517305090

$16.49

130

LH Rear Hood Foam

517305091

$16.49

133

Deep Black, Trunk

517305095

$21.99

134

Rivet Plate

517305109

$4.99

136

Pin

517305734

$3.49

145

Deep Black LH Front Console

517305513

$31.99

146

Deep Black, Support Console Cap

517305180

$4.99

147

Deep Black, Support Console Cap

517305148

$4.99

148

Seal Joint

517305157

$2.39

153

RH Foam Upper

517305196

$30.99

154

RH Foam Central

517305197

$16.49

155

RH Foam Lower

517305198

$28.99

156

RH Foam Rear

517305199

$21.99

157

LH Upper Panel Foam

517305200

$21.99

158

LH Center Panel Foam

517305201

$14.49

159

LH Lower Panel Foam

517305202

$21.99

160

LH Rear Panel Foam

517305203

$21.99

161

DEEP BLACK RH FRONT CONSOLE - Call your local BRP dealership

517305222

Unavailable

162

Panel Latch

517305279

$18.99

163

RH Panel Clip Ass'y, Black | Includes 1700 to 1700a

517305724

$16.49

164

LH Panel Clip Ass'y, Black | Includes 1710 to 1710a

517305722

$16.49

169

Headlamp

517306180

$249.99

170

Deep Black, Indicator Support

517305511

$60.99

178

Heat Shield | Europe

517305451

$2.29

181

Push Nut

250100158

$2.11

166a

Cap

219400070

$18.49

166b

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

166c

Holder Bracket

219800282

$5.89
