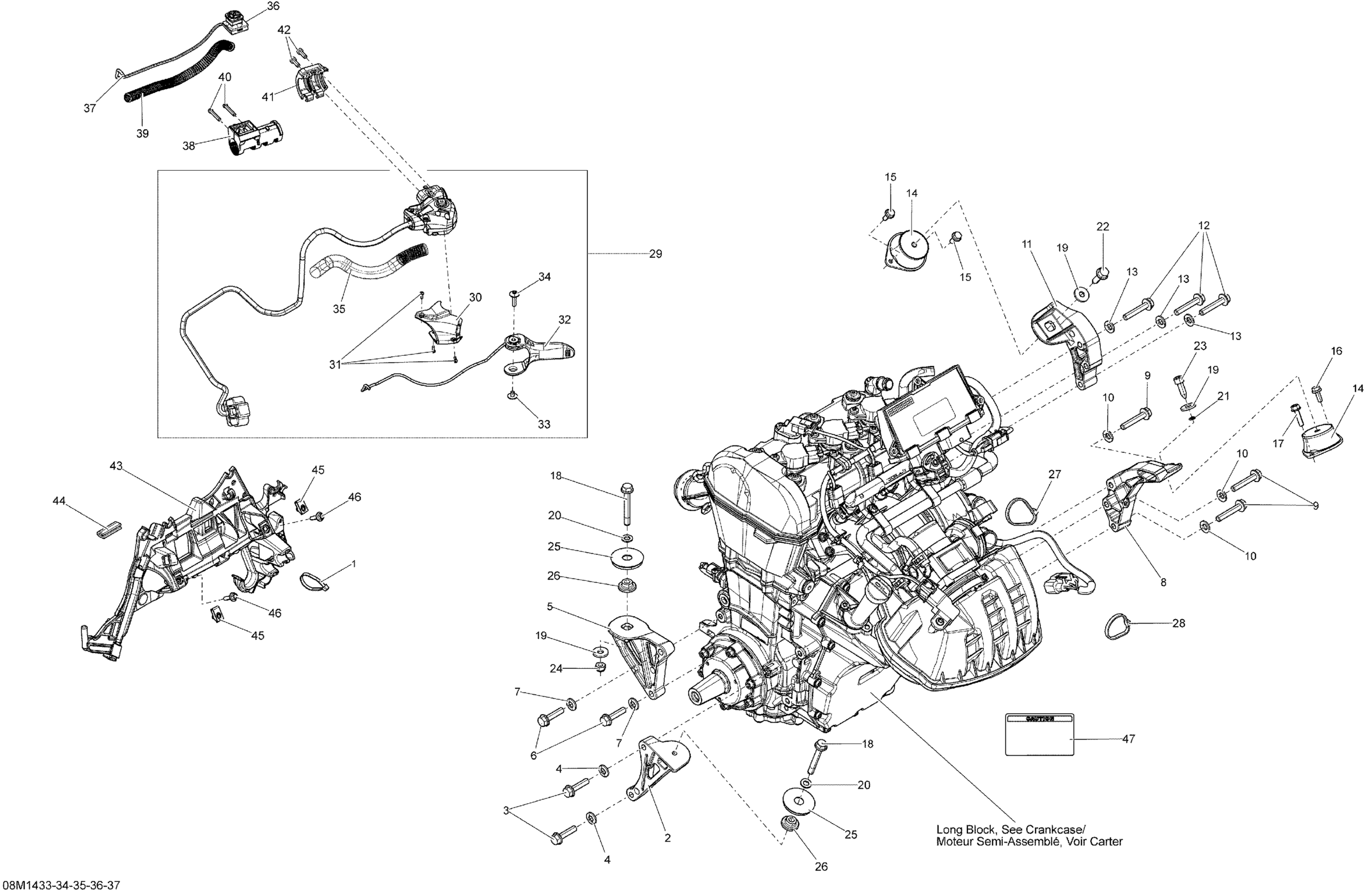

Ski-Doo MXZ TNT 900ACE XS, 2014 01- Engine And Engine Support _08M1433 Diagram

#

Description
Price

1

Tie Wrap 368 mm

293750008

$1.04

2

Rear Support PTO

512061139

$24.99

3

Hex. Flange Screw M8 X 35

250000986

$2.11

4

Conical Spring Washer M8

250200146

$1.01

5

Front Support PTO

512061140

$20.99

6

Hex. Flange Screw M8 X 35

250000986

$2.11

7

Conical Spring Washer M8

250200146

$1.01

8

Rear Support MAG

512061142

$28.99

9

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$7.20

10

Conical Spring Washer M8

250200146

$1.01

11

Front Support, MAG

512060663

$19.99

12

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$7.20

13

Conical Spring Washer M8

250200146

$1.01

14

Rubber Mount

512060729

$65.99

15

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

16

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

17

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.11

18

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.11

19

Yellow, Washer

503183200

$3.19

20

Flat Washer With Teflon 8 mm

250200008

$3.80

21

O-Ring

293300123

$1.03

22

Cone Screw, M8 X 30

250000257

$1.89

23

Cone Screw, M8 X 25

250000639

$12.49

24

Hex. Elastic Stop Nut M8

232581414

$0.56

25

Engine Stopper

512061536

$21.99

26

Spacer

512060285

$19.99

27

Tie-Rap 180 mm

414115200

$0.11

28

Tie-Rap 180 mm

414115200

$0.11

29

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$339.99

30

Cap

512060862

$13.49

31

Torx Screw M2.9 x 9.5

250000623

$3.17

32

Handle Ass'y kit

415130047

$104.99

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

36

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

37

Male Terminal

515175232

$1.58

38

Switch Support

512061453

$9.28

39

Protector Tube

515177716

$4.55

40

Torx Screw #8-18

250000263

$1.04

41

FRONT HOUSING - Call your local BRP dealership

512060803

Unavailable

42

Torx Screw M5 X 14

250000632

$7.51

43

Module Support

512060994

$16.33

44

Was 271000110 Protection Trim

219704353

$15.99

45

Panel Nut M5 X 0.8

250000958

$4.23

46

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

47

Caution Decal, Oil Level

516005521

Unavailable
