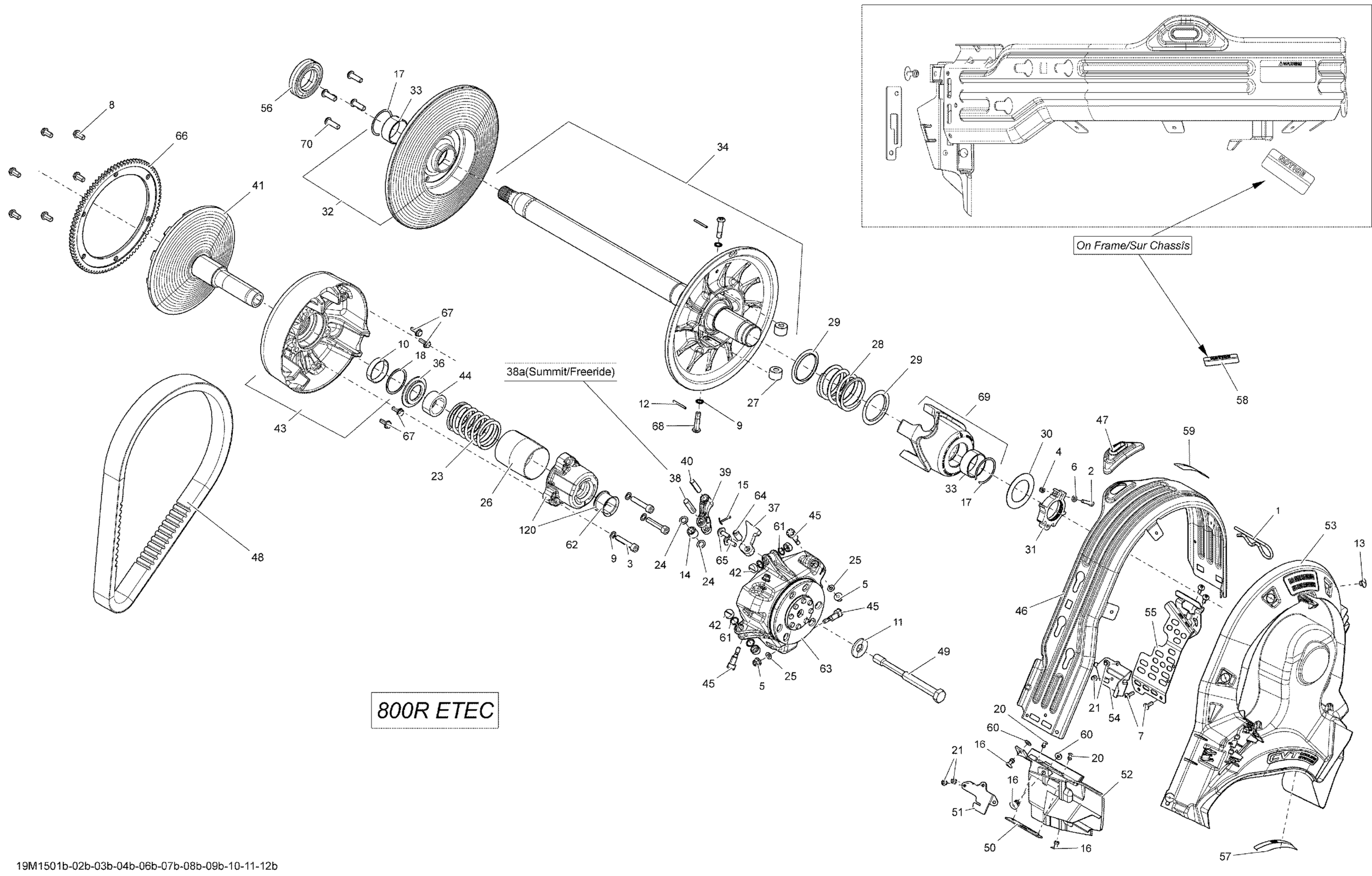

Ski-Doo MXZ TNT 800RETEC XS120, 2015 Pulley System 800RETEC _19M1501b Diagram

#

Description
Price

1

Hair Pin

114045200

$11.11

2

Socket Screw M5 X 25

205052544

$1.68

3

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

4

Elastic Stop Nut M5

232551414

$0.87

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Flat Washer M5

234051410

$0.53

7

Torx Screw M5 X 14

250000742

$1.47

8

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.99

9

Lock Washer 8 mm

250200009

$2.11

10

Bushing

417223086

$36.99

11

Conical Spring Washer M14

250200144

$4.44

12

Spring Pin M3 X 30

250400063

$2.11

13

Pop Rivet 3/16"

293150103

$0.55

14

Roller

417222947

$21.99

15

Cotter Pin

250400060

$2.00

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

17

Circlip

293370049

$4.99

18

Circlip

293370071

$4.09

20

Avex Rivet

390909100

$0.30

21

Avex Rivet

390909200

$0.30

23

Spring, Blue/green

414817700

$46.49

24

Stopper Washer

417004302

$15.90

25

Washer

417005600

$4.09

26

Guard

417009205

$21.99

27

Pulley Roller

417127016

$24.49

28

Green, Spring

417127137

$41.49

29

Swivel Abutment

417127116

$9.39

30

Washer

417127155

$8.26

31

Calibration Ass'y

415129604

$21.49

32

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

33

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

34

Fix Flange Ass'y | Includes 100a to 100a4

417127387

$499.99

36

Spring Seat

417222312

$9.59

37

Ramp 414

417222546

$39.99

38

Pin

417222594

$14.99

38a

Not Available As Spare Parts

XXX

Unavailable

39

Lever | Includes 10f to 10g

417222671

$49.99

40

Lever Axle

417223164

$4.49

41

Fixed Flange Ass'y

417223232

$469.99

42

Slider Shoe

417223271

$8.26

43

Sliding Flange Ass'y | Includes 3 to 5

417223444

$459.99

44

Bushing

417223471

$8.14

45

Calibration Screw

417223501

$13.99

46

Belt Guard

417300357

$91.99

47

Guide

417300381

$11.99

48

Drive Belt

417300531

$199.99

49

TRA 7 Bolt (M14 X 153.5 mm)

417300409

$42.49

50

Reinforcement Plate

417300421

$4.39

51

Front Bracket

417300423

$7.29

52

Front Support

417300430

$14.49

53

CVT Air Duct Pulley

417300440

$28.99

54

Stopper

417300445

$10.49

55

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

56

Ball Bearing

504152574

$35.99

57

Decal English

516005503

Unavailable

58

RPM Sticker, English

516005507

$13.49

59

Safety Belt Guard Decal

516005509

Unavailable

60

Flat Washer

517225900

$0.18

61

O-Ring

732401030

$0.98

62

Bushing

417009204

$17.49

63

Governor Cup Ass'y

417223666

$499.99

64

Spring Pin M10 X 22

250400050

$2.99

65

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

66

Ring Gear_Starter This part replaces 417223739.

417225071

$239.99

67

Serrated Hex. Flange Bolt M6

250000416

$4.23

68

Pivot Stud

417127294

$14.49

69

Cam Ass'y | Includes 100c to 100c2

417127319

$200.99

70

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

120

Spring Cover Ass'y | Includes 14 to 15

417222759

$49.99
